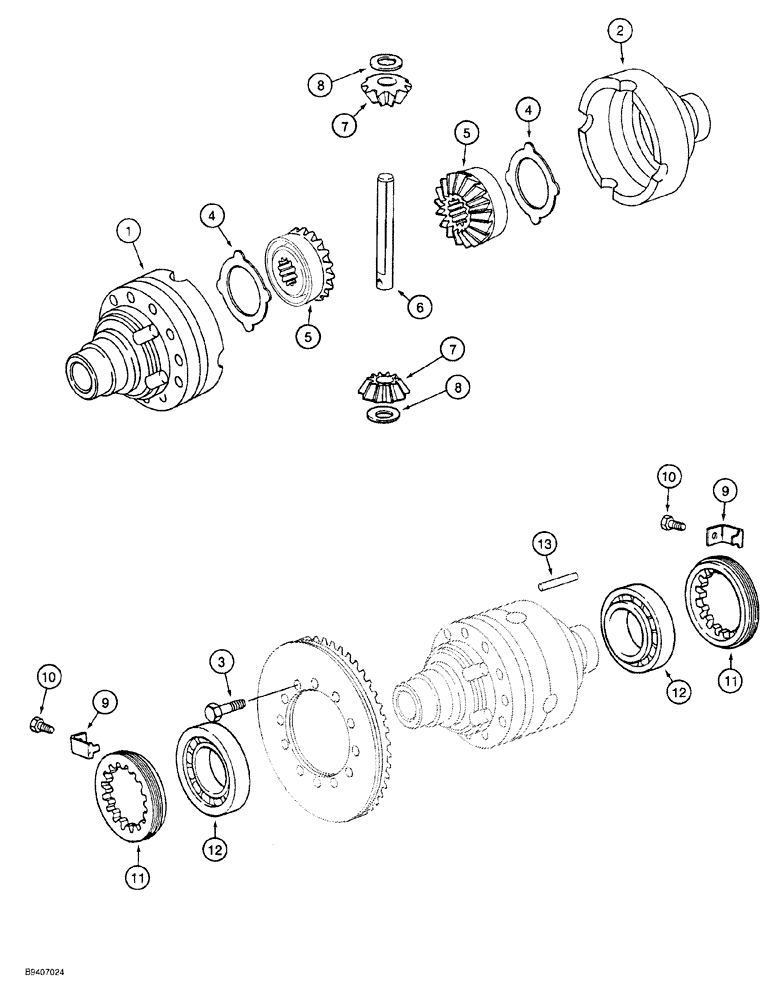

Запчасти Case 580SL (6-014) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, See Figures 6-4 - 6-16, models without powershift transmission

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

279171A1

CENTER AXLE

ASSEMBLY, front drive, Carraro No. 138204, See Figures 6-4 - 6-16, models with powershift transmission, Includes: Refs. 1-13

1шт.

294933A1

HOUSING

Differential, Incl. Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

12шт.

4

1967003C1

THRUST WASHER

differential housing

2шт.

5

231397A1

SERVICE KIT

Gear, Differential, Service replacement, Incl Ref. 5 - 8 and 13

1шт.

5

N14407

GEAR

side, differential, no longer available, for service order P/N 231397A1

2шт.

Part of gear set 231397A1

1шт.

6

K395087

SHAFT

Pinion gear, no longer available, for service order P/N 231397A1

1шт.

Part of gear set 231397A1

1шт.

7

N14408

SUN GEAR

pinion, differential, no longer available, for service order P/N 231397A1

2шт.

Part of gear set 231397A1

1шт.

8

K395075

THRUST WASHER

Pinion gear, no longer available, for service order P/N 231397A1

2шт.

Part of gear set 231397A1

1шт.

9

1966153C1

LOCKING PLATE

BRACKET lock

2шт.

10

112486A1

BOLT,Hex, M6 x 12

Special

2шт.

11

1966559C1

NUT

2шт.

12

K395027

TAPERED BEARING

Differential

2шт.

13

K395086

PIN

dowel, no longer available, for service order P/N 231397A1

1шт.

Part of gear set 231397A1

1шт.

B17575

FLUID

SEALANT black RTV silicone, 89 ml (3 ounce) tube, bolt to differential housing, not shown

1шт.
