(6-008) - FRONT DRIVE AXLE, STEERING CYLINDER

Запчасти Case 580SL (6-008) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

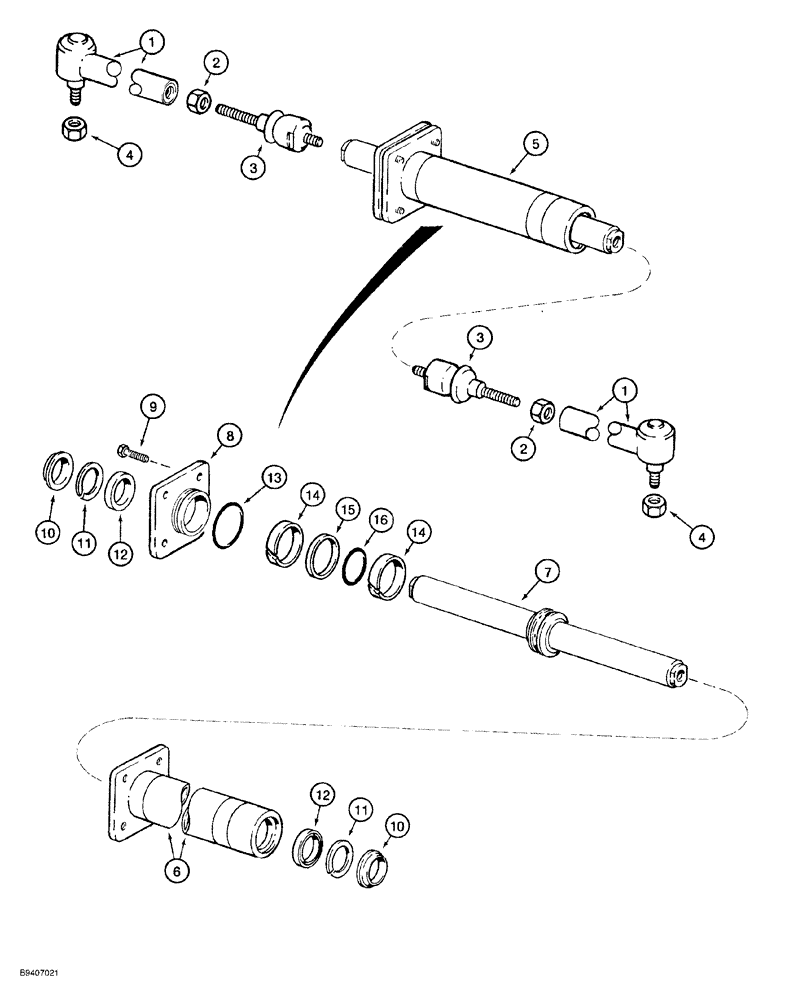

Схема запчастей Case 580SL - (6-008) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN
2
14
5
8
4
12
6
1
10
16
4
12
2
9
14
11
3
7
3
10
13
1
15
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

113561A1

AXLE

ASSEMBLY, front drive, Carraro No. 131204, parts list Figures 6-4 - 6-16, models without powershift transmission, Includes: Refs. 1-16

1шт.

113561A3R

REMAN-AXLE

Reman for new P/N 113561A1

1шт.

113561A3C

CORE-AXLE

Return Number

1шт.

279171A1

CENTER AXLE

ASSEMBLY, front drive, Carraro No. 138204, parts list Figures 6-4 - 6-16, models with powershift transmission, Includes: Refs. 1-16

1шт.

144457A1

STEERING ARM

Assy, Incl Ref. 1-3

2шт.

1

87710157

STEERING TIE-ROD,26mm OD x 265mm L

JOINT ball, swivel side

1шт.

2

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

hex, special

1шт.

3

112509A1

BALL JOINT

right hand threads

1шт.

4

905839R1

LOCK NUT,M18 x 1.5, Thin

hex, self locking, 18 x 15 mm

2шт.

5

144458A1

CYLINDER

ASSEMBLY, steering, 4WD, order D149739 kit to service seals, see below, Includes: Refs. 6-16

1шт.

5

85805978R

REMAN-HYD CYLINDER

580SL SERIES 2 LOADER BACKHOE, ASSEMBLY, steering, Reman For New PN 144458A1

1шт.

5

85805978C

CORE-HYD CYLINDER

Return Number

1шт.

6

D149738

STEERING CYLINDER

TUBE

1шт.

7

144459A1

ROD

piston

1шт.

8

D149737

GLAND

cylinder

1шт.

9

114296A1

BOLT

BOLT self locking, special, steering cylinder, for service order P/N's 100524A1 bolt and 892-11012 washer

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER rod

2шт.

Part of seal kit P/N D149739

1шт.

11

NSS

NOT SOLD SEPARAT

RING backup

2шт.

Part of seal kit P/N D149739

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL rod

2шт.

Part of seal kit P/N D149739

1шт.

13

NSS

NOT SOLD SEPARAT

0-RING gland

1шт.

Part of seal kit P/N D149739

1шт.

14

NSS

NOT SOLD SEPARAT

RING wear

2шт.

Part of seal kit P/N D149739

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of seal kit P/N D149739

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING expander

1шт.

Part of seal kit P/N D149739

1шт.

D149739

SEAL PACKAGE

KIT, steering cylinder, for rod, gland, and piston, Includes: Refs. 10-16

1шт.

B17575

FLUID

SEALANT black RTV silicone, 89 ml (3 ounce) tube, cylinder flange to cylinder, not shown

1шт.
