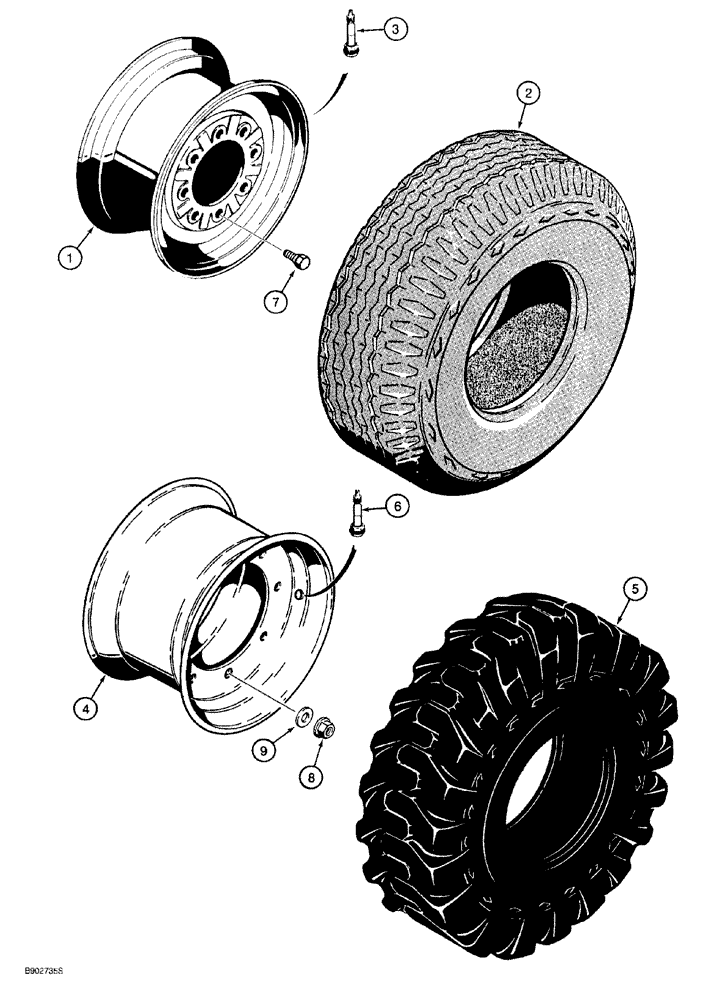

Запчасти Case 580SL (5-018) - FRONT WHEELS & TIRES, FOR 11L X 16 - 10PR F3 TIRES, 2WD MODELS (05) - STEERING

1

D125223

WHEEL,W8Lx16, 8 Holes, CASE Power Tan

For 11L x 16 - 10 PR F3 tires, 2WD models

2шт.

2

REF

INSTRUCTION

TIRE front, purchase locally, for 11L x 16 - 10 PR F3 tires, two wheel drive models

2шт.

3

A38261

VALVE

stem, tire inflation, for 11L x 16 - 10 PR F3 tires, two wheel drive models

2шт.

4

119243A1

WHEEL,16.5x9.75, 8 Holes, CASE Power Tan

8 hole pattern, for 12 x 16.5 - 8 PR tires, Four wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE front, purchase locally, for 12 x 16.5 - 8 PR tires, four wheel drive models

2шт.

6

A38261

VALVE

stem, tire inflation, for 12 x 16.5 - 8 PR tires, four wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 2WD models

16шт.

8

825-11418

NUT,M18 x 1.5, Cl 8

hex, 18 mm - 1.5, special, wheel nuts, four wheel drive models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Wheel nuts, 4WD models

16шт.
