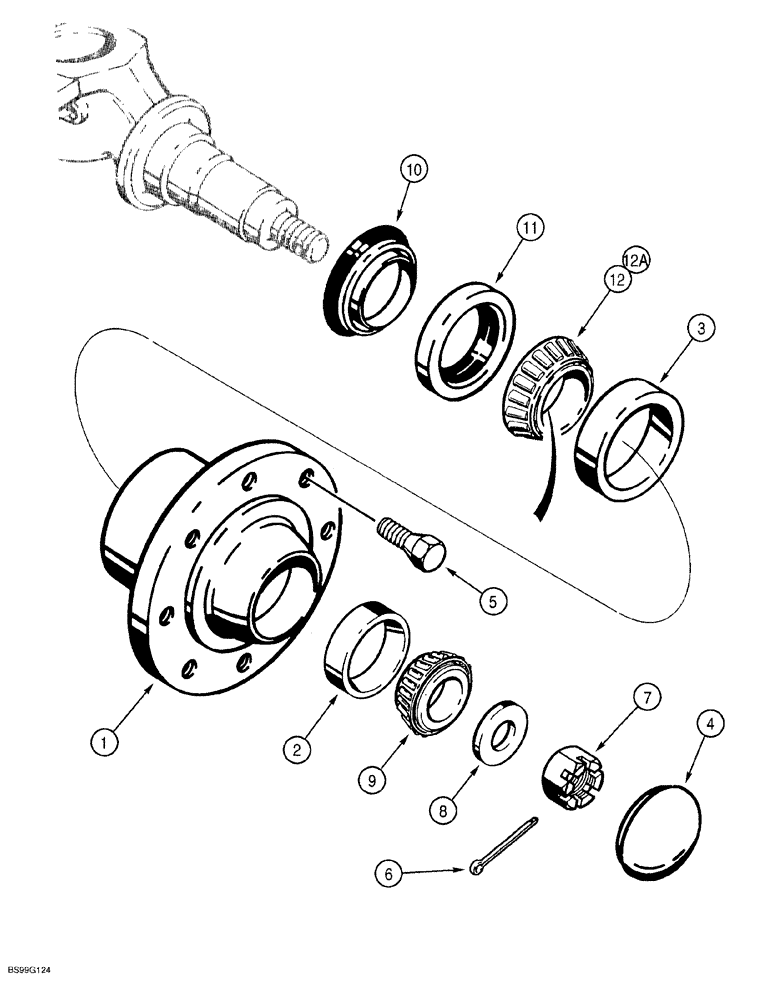

Запчасти Case 580SL (5-016) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

D75103

HUB

ASSEMBLY, front wheel, Includes: Refs. 1-3, 11 & 12

1шт.

1

A66759

HUB

wheel

1шт.

Part of two wheel drive axle kit

1шт.

2

619387R1

BEARING CUP

tapered roller, 3-1/16 inch O.D., outer, tapered roller bearing

1шт.

Wheel Bearing, two kits required per tractor

1шт.

Part of two wheel drive axle kit

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP tapered roller bearing, 3-35/64 inch O.D., inner, tapered roller bearing

1шт.

Wheel Bearing, two kits required per tractor

1шт.

Part of two wheel drive axle kit

1шт.

4

D143405

CAP

hub

2шт.

Part of two wheel drive axle kit

1шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.

6

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

Part of two wheel drive axle kit

1шт.

7

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

hex, thick slotted, 1-1/8 inch NF

2шт.

Part of two wheel drive axle kit

1шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

flat, special, 1-1/8 inch

2шт.

Part of two wheel drive axle kit

1шт.

9

G15215

ROLLER BEARING

tapered roller bearing, outer

2шт.

Wheel Bearing, two kits required per tractor

1шт.

Part of two wheel drive axle kit

1шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

spindle

2шт.

Wheel Bearing, two kits required per tractor

1шт.

Part of two wheel drive axle kit

1шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

hub

2шт.

Wheel Bearing, two kits required per tractor

1шт.

Part of two wheel drive axle kit

1шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

tapered roller, 2-1/16 inch ID, inner, 2.1651 inch ID x .9045 width, .059 inch radius, used P/N's D125340 and D125341 spindles on Fig. 5-14

2шт.

Wheel Bearing, two kits required per tractor

1шт.

12a

296824A1

TAPERED BEARING,55mm ID x 23mm W

CONE tapered roller, 2.1653 ID x 0.9055 width, 0.137 inch radius, used with P/N's 335130A1 and 335132A1

2шт.

Part of two wheel drive axle kit

1шт.

B93222

KIT

wheel bearing, includes Refs. 2, 3, 9, 10, 11, and 12, two kits required per tractor

1шт.

352487A3

KIT DEPOT ASSEMBLING

KIT two wheel drive axle

1шт.
