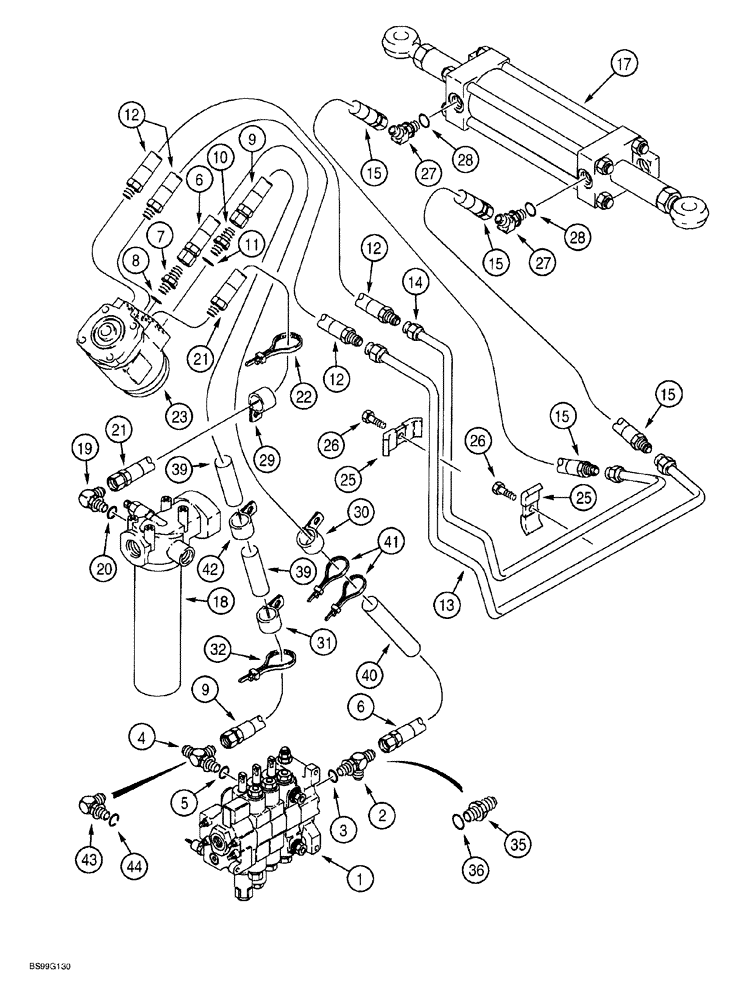

Запчасти Case 580SL (5-004) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY, loader control, for correct assembly and components, see figure 8-72 - 8-75A

1шт.

2

282428A1

VALVE PRESSURE RELIE

Steering check, models with hand held auxiliary hydraulics, Includes: Ref. 3

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

4

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj. O-ring, lower inlet port, for 45 degree elbow used with this tee on models with ride control, see figure 8-60, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

218-5241 or 218-5576 tee

1шт.

6

144221A1

HOSE

1275 mm (50-3/16 inch) long, steering pilot, steering control valve small center port to loader control valve

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER, Incl. Ref. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

9

224423A1

HYDRAULIC HOSE,9.65 mm ID x 1300.00 mm

Steering pressure, loader control valve to steering control valve RH port

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss, Incl. Ref 11 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

132929A1

HOSE

730 mm (28-3/4 inch) long, steering control valve upper and lower left hand ports to tubes; Includes 237-6008 O-Ring

2шт.

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

120386A1

TUBE

TUBE lower, to steering cylinder right hand port hose

1шт.

14

120388A1

TUBE

TUBE upper, to steering cylinder left hand port hose

1шт.

15

144219A1

HOSE,9.53mm ID x 485mm L

485 mm (19-3/32 inch) long, to right hand and left hand port of steering cylinder

2шт.

17

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

ASSEMBLY, 70 (2-3/4) ID x 170 mm (6-45/64 inch) stroke, steering, parts list figure 5-12

1шт.

17

G107720R

REMAN-HYD CYLINDER

580SL Series 2

1шт.

17

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

18

122536A1

HYDRAULIC OIL FILTER

hydraulic oil, parts list Fig. 8-124

1шт.

19

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

ELBOW, 90 degree, 3/4-16 flare x 9/16-18 inch adj. O-ring boss, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

176328A1

HOSE

1730 mm (68-1/8 inch) long, steering return, steering control valve upper right hand port to hydraulic oil filter

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining, use (1) to tie return hose, Ref. 21, to corner of crossover

5шт.

23

120421A2

PUMP, HYDRAULIC

VALVE ASSEMBLY, steering control, parts list figure 5-10

1шт.

23

377805A1R

REMAN-STEERING VALVE

Reman For New P/N 120421A2, Valve Assembly

1шт.

23

377805A1C

CORE-STEERING VALVE

Return Part Number

1шт.

25

D40236

CLAMP

tube

2шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

27

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Adj. O-ring boss, see figure 6-2 for fittings used on four wheel, Incl. Ref 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type

1шт.

30

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Replaces 49854 clamp, If used

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, if used

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, if used

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

May be used on models without auxiliary hydraulics, if used, Incl. Ref. 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE hose guard

2шт.

40

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

SLEEVE hose guard, 460 mm (18-1/8 inch) long

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

2шт.

42

49773

CLAMP

P-type

1шт.

43

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adj O-ring boss, May be used on models without auxiliary hydraulics, if used, Includes Ref. 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
