Запчасти Case 580SL (4-046) - BACKHOE AUXILIARY HYDRAULIC ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

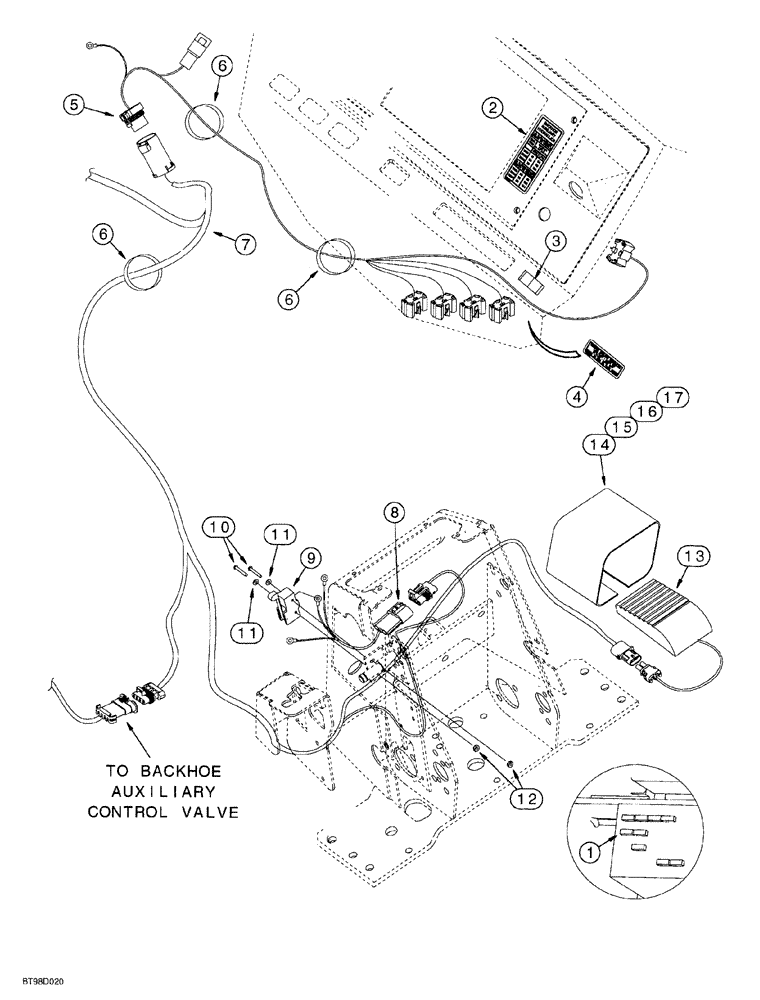

Схема запчастей Case 580SL - (4-046) - BACKHOE AUXILIARY HYDRAULIC ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS
11
11
9
13
7
14
12
16
6
6
15
10
8
4
6
5
2
1
3
17

Артикул

Название

Примечание

Количество

1

121413A1

FUSE,15A, Mini, Blue

1шт.

2

284479A1

DECAL

backhoe auxiliary hydraulics, hi flow/low flow

1шт.

3

284058A1

SWITCH

rocker, backhoe auxiliary hydraulics, was mounted below key switch, is now mounted behind throttle slot

1шт.

4

284627A1

DECAL

backhoe auxiliary hydraulics, low flow, light on/hi flow light off

1шт.

5

296508A2

HARNESS

side console options, attaches to side console harness and chassis options harness

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

4шт.

7

302803A2

HARNESS

chassis options, replaces P/N 302803A1

1шт.

8

298681A1

HARNESS

pigtail, detent lever

1шт.

9

D137363

SWITCH

contact, limit

1шт.

10

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

11

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

12

193-1003

NUT,Keps, w/LW,#6-32

hex, with external tooth lock washer, No. 6 NC

2шт.

13

137219A1

SWITCH

foot, backhoe auxiliary hydraulics

1шт.

14

300030A1

COVER

GUARD foot switch

1шт.

15

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

machine, flat Phillips, 5 - 0.8 x 16 mm

2шт.

16

892-11005

LOCK WASHER,M5

2шт.

17

824-1405

NUT,M5, Cl 5

2шт.

Выбрано товаров: 17
