Запчасти Case 580SL (4-042) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS

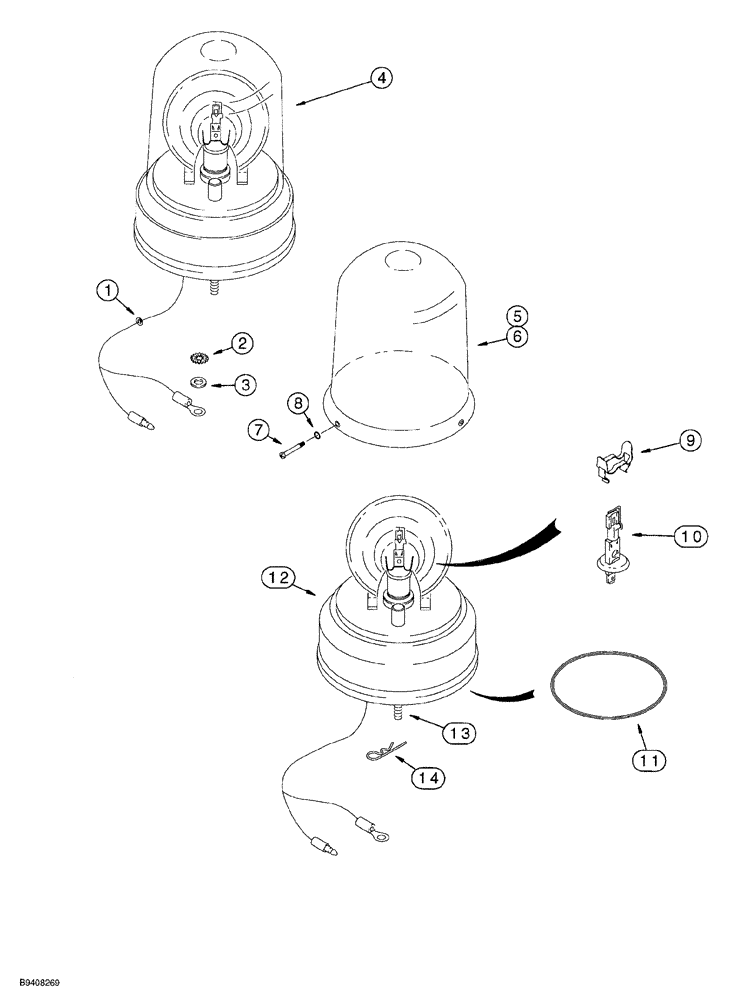

Схема запчастей Case 580SL - (4-042) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS
3
4
2
11
12
14
9
7
8
6
10
5
1
13

Артикул

Название

Примечание

Количество

1

A23870

GROMMET

wire

1шт.

2

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

Ground

1шт.

3

495-21031

WASHER,1/4"

flat, 5/16 x 3/4 x 1/16 inch, ground

1шт.

4

108366A1

BEACON

Assy, Rotating, Attaches to cab or canopy harness, Includes: Refs. 5-14

1шт.

5

A187542

LENS

beacon, amber, if used

1шт.

6

127158A1

LENS

beacon, blue, if used

1шт.

7

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

Round head, Lens mounting

3шт.

8

238-5005

O-RING,0.094" ID x 0.062" Width

Lens mounting screw

3шт.

9

101531A1

CLIP

bulb

1шт.

10

3125705R1

BULB

LAMP beacon, 12 volt, 55 watt

1шт.

11

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

12

NSS

NOT SOLD SEPARAT

BASE with drive motor

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

Full threads

3шт.

14

136-54

PIN

cotter, hair, 1/4 x 11/16 inch, bolt retaining

3шт.

15

133714A1

BEACON SWITCH

rocker, rotating beacon, not shown

1шт.

Выбрано товаров: 15
