Запчасти Case 580SL (4-038) - CAB TRACTOR LAMPS, STOP AND TAIL LAMPS AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

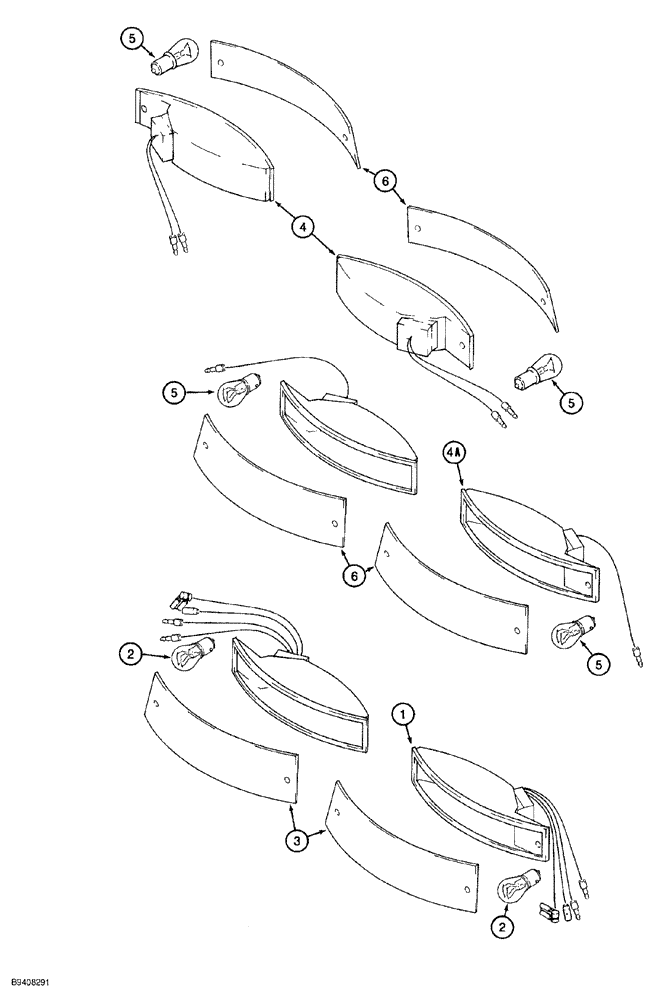

Схема запчастей Case 580SL - (4-038) - CAB TRACTOR LAMPS, STOP AND TAIL LAMPS AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS
5
5
1
3
6
4
5
2
5
6
4a
2

Артикул

Название

Примечание

Количество

131794A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY, stop and tail, red lens, right rear, lower, Includes: Refs. 1-3

1шт.

131795A1

LIGHT,12V, 27W, Red

LAMP ASSEMBLY, stop and tail, red lens, left rear, lower, Includes: Refs. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, complete, stop and tail

1шт.

2

T34857

BULB,C6, #1157, 12.8V

Stop and Tail

1шт.

3

183749A1

LENS

lamp, red, stop and tail

1шт.

131796A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY, turn signal and flasher, amber lens, right front, Includes: Refs. 4-6

1шт.

183505A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY, turn signal and flasher, amber lens, right rear, upper, Includes: Refs. 4-6

1шт.

131797A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY, turn signal and flasher, amber lens, left front, Includes: Refs. 4-6

1шт.

183504A1

LIGHT,12V, 27W, Amber

LAMP ASSEMBLY, turn signal and flasher, amber lens, left rear, upper, Includes: Refs. 4-6

1шт.

4

NSS

NOT SOLD SEPARAT

BODY, P/N 131796A1 or 131797A1 lamp, turn signal and flasher

1шт.

4a

NSS

NOT SOLD SEPARAT

BODY, P/N 183504A1 or 183505A1 lamp, turn signal and flasher

1шт.

5

A41264

BULB,#1156, 12V

Lamp, Turn signal and flasher

1шт.

6

183748A1

LENS

lamp, amber, turn signal and flasher

1шт.

Выбрано товаров: 13
