Запчасти Case 580SL (4-036) - CANOPY TRACTOR LAMPS, STOP AND TAIL LAMPS AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS

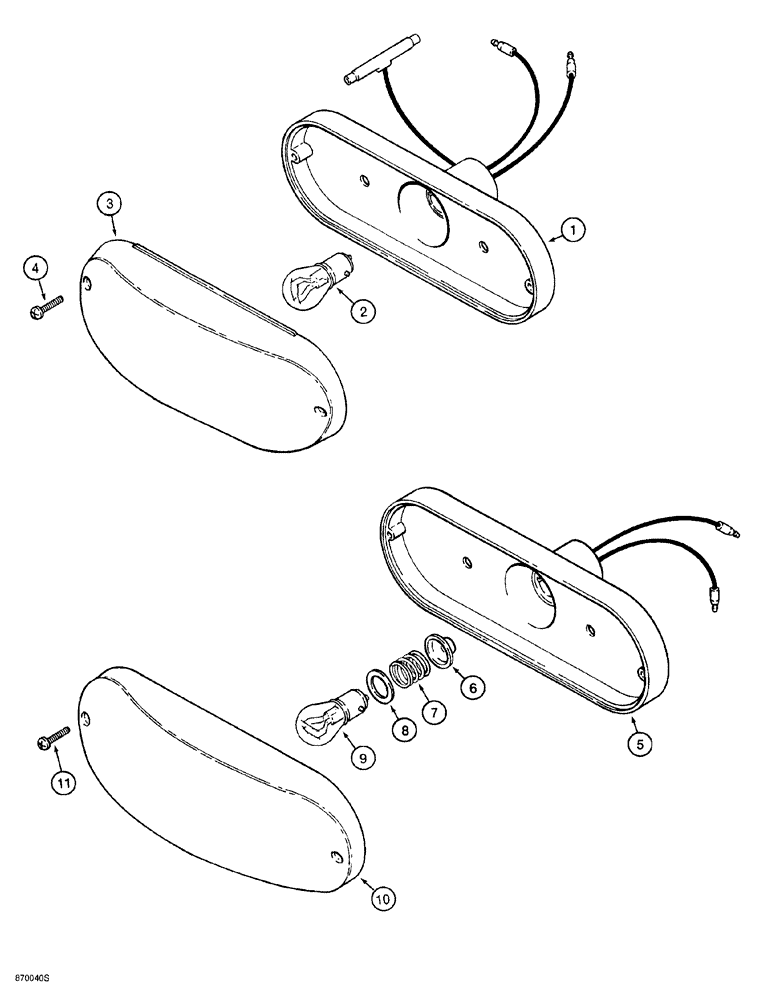

Схема запчастей Case 580SL - (4-036) - CANOPY TRACTOR LAMPS, STOP AND TAIL LAMPS AND TURN SIGNAL AND FLASHER LAMPS (04) - ELECTRICAL SYSTEMS
8
11
5
6
3
1
10
4
9
7
2

Артикул

Название

Примечание

Количество

D121152

LAMP,12V

ASSEMBLY, stop and tail, red, Includes: Refs. 1-4

2шт.

1

NSS

NOT SOLD SEPARAT

BODY lamp, complete, stop and tail lamp

1шт.

2

T34857

BULB,C6, #1157, 12.8V

Stop and Tail

1шт.

3

N6836

LENS

red, lamp, stop and tail

1шт.

4

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

self tapping, pan Phillips, No. 6 NC x 5/8 inch, stop and tail lamp

2шт.

D135384

LAMP,12V

ASSEMBLY, turn signal and flasher, amber, Includes: Refs. 5-11

4шт.

5

NSS

NOT SOLD SEPARAT

BODY AND SOCKET lamp, turn signal and flasher

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL rubber, spring retaining, turn signal and flasher

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING lamp, turn signal and flasher

1шт.

8

NSS

NOT SOLD SEPARAT

INSULATOR lamp, turn signal and flasher

1шт.

9

A41264

BULB,#1156, 12V

Lamp, Turn signal and flasher

1шт.

10

N14283

LENS

amber, lamp, turn signal and flasher

1шт.

11

261-14310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

self tapping, pan Phillips, No. 6 NC x 5/8 inch, turn signal and flasher

2шт.

Выбрано товаров: 13
