Запчасти Case 580SL (4-032) - CANOPY TRAC LAMPS, FRONT DRIVING, REAR FLOOD, & FRONT & REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS

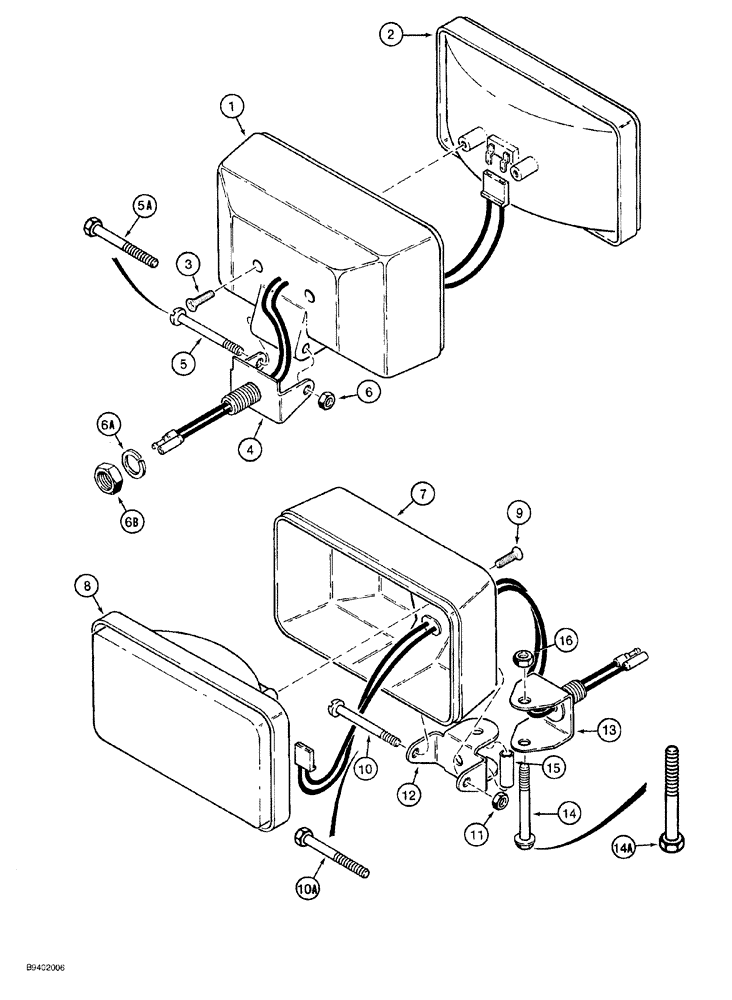

Схема запчастей Case 580SL - (4-032) - CANOPY TRAC LAMPS, FRONT DRIVING, REAR FLOOD, & FRONT & REAR WORK LAMPS (04) - ELECTRICAL SYSTEMS
2
11
1
12
4
3
10
5a
14a
14
6
8
13
15
6b
5
10a
9
16
7
6a

Артикул

Название

Примечание

Количество

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY, front driving, Includes: Refs. 1-6B

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING lamp, front driving lamp assembly

1шт.

2

91946C1

LAMP

BULB sealed beam, front driving lamp assembly

1шт.

3

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

self tapping, flat head slotted, No. 10-16 x 5/8 inch, front driving lamp assembly

2шт.

4

N14284

BRACKET

lamp, front driving lamp assembly

1шт.

5

70-12532

SCREW,Slotted Pan Hd, 1/4"-20 x 2"

machine, pan head slotted, 1/4 NC x 2 inch, housing to bracket, production, front driving lamp assembly

1шт.

5a

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Service, front driving lamp assembly

1шт.

6

231-1444

NUT,1/4"-20, GB

Front Driving Lamp Assembly

1шт.

6a

80679

LOCK WASHER,1/20.507 CST ZND

Front driving lamp assembly

1шт.

6b

425-108

NUT,1/2" - 13, Gr 5

Front driving lamp assembly

1шт.

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY, flood and work, rear flood (outer) & center front & rear work lamps, Includes: Refs. 7-16

6шт.

7

NSS

NOT SOLD SEPARAT

HOUSING lamp, rear flood lamp assembly and front and rear work lamps

1шт.

8

91947C1

LAMP

BULB sealed beam, rear flood lamp assembly and front and rear work lamps

1шт.

9

273-10510

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

self tapping, flat head slotted, No. 10-16 x 5/8 inch, rear flood lamp assembly and front and rear work lamps

2шт.

10

70-12532

SCREW,Slotted Pan Hd, 1/4"-20 x 2"

machine, pan head slotted, 1/4 NC x 2 inch, housing to bracket, production, rear flood lamp assembly and front and rear work lamps

1шт.

10a

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

Service, rear flood lamp assembly and front and rear work lamps

1шт.

11

231-1444

NUT,1/4"-20, GB

Rear Flood Lamp Assembly and Front and Rear Work Lamps

1шт.

12

N14285

SUPPORT

BRACKET lamp, mounting, rear flood lamp assembly and front and rear work lamps

1шт.

13

A52216

SUPPORT

BRACKET mounting, lamp, includes stud, rear flood lamp assembly and front and rear work lamps

1шт.

14

121-119

BOLT,Hex Flg, 5/16"-18 x 2 1/4", Serr

Used in production, for service order Ref. 14A, rear flood lamp assembly and front and rear work lamps

1шт.

14a

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Service, rear flood lamp assembly and front and rear work lamps

1шт.

15

65881H

SPACER,1/4" Pipe x 1 1/4"

tubular, 1/4x1-1/4 inch, rear flood lamp assembly and front and rear work lamps

1шт.

16

231-1445

NUT,5/16"-18, GB

Rear flood lamp assembly and front and rear work lamps

1шт.

Выбрано товаров: 23
