Запчасти Case 580SL (4-028) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS

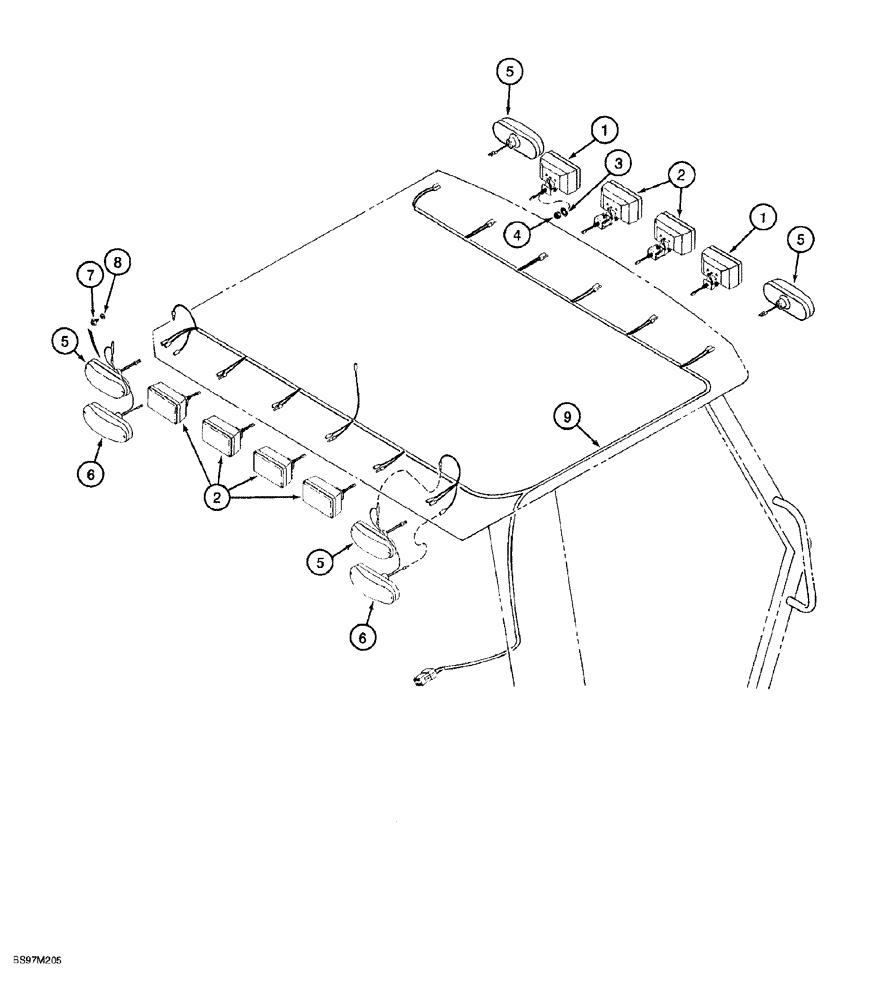

Схема запчастей Case 580SL - (4-028) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS
2
1
2
3
6
5
5
9
5
8
4
1
5
6
7

Артикул

Название

Примечание

Количество

1

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY, front driving, outer, parts list figure 4-32, no longer available, order P/N ZAA7376350 lamp package

2шт.

2

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY, flood and work, rear flood (outer) and center front and rear work lamps, parts list figure 4-32, no longer available, order P/N ZAA7376150 lamp package and ZAA8066600 mounting kit

6шт.

3

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

internal external tooth lock, 1/2 inch

8шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

8шт.

5

D135384

LAMP,12V

ASSEMBLY, turn signal and flasher, amber, front and rear, parts list figure 4-36

4шт.

6

D121152

LAMP,12V

ASSEMBLY, stop and tail, red, rear, parts list figure 4-36

2шт.

7

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

special, hex washer head, No. 1.0 NC x 3/8 inch, replaces P/N 281-4556

12шт.

8

495-31022

WASHER,#10

12шт.

9

283001A1

HARNESS

ROPS canopy, lamps, attaches to side console instrument harness, see figure 9-146 for harness cover and clamps that mount to the right hand ROPS post

1шт.

Выбрано товаров: 9
