Запчасти Case 580SL (4-024) - SIDE INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS

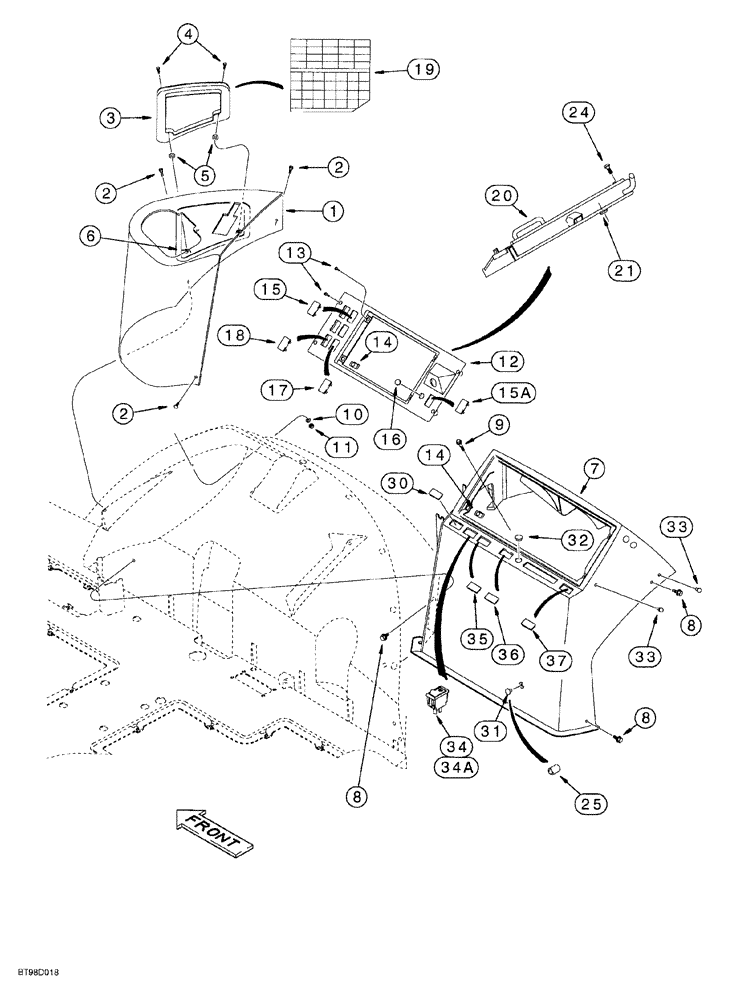

Схема запчастей Case 580SL - (4-024) - SIDE INSTRUMENT PANEL AND COVERS (04) - ELECTRICAL SYSTEMS
32
18
4
2
34a
2
88
31
13
8
35
21
14
15a
37
7
36
16
15
19
30
34
9
3
20
5
8
6
17
2
14
12
10
25
11
33
24
33
1

Артикул

Название

Примечание

Количество

1

245891A2

COVER

loader control

1шт.

2

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

BOLT heavy hex flange, 6 - 1.0 x 20 mm

3шт.

3

120032A1

COVER

PANEL fuse access

1шт.

4

182276A1

SCREW

special, No. 10 NC x 3/4 inch

2шт.

5

127009A1

CLIP,ELECTRICAL

RETAINER screw, push on

2шт.

6

131-861

SPRING NUT,Tinn, U, #10-24

1шт.

7

295378A1

CONSOLE

PANEL instrument, side, models without radio, if used, also order (1) P/N 181385A1 threaded insert

1шт.

7a

294792A1

BRACKET

PANEL instrument, side, models with radio, if used, also order (1) P/N 181385A1 threaded insert, not shown, part of radio ready package P/N 292654A1

1шт.

Part of Radio-Ready Package, P/N 292654A1

1шт.

8

555-2

BOLT,Hvy Hex, M6 x 20, Cl 8.8

BOLT heavy hex flange, 6 - 1.0 x 20 mm

3шт.

9

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

10

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

1шт.

12

123615A2

LARGE PLATE

PLATE, LARGE PANEL instrument cluster mounting

1шт.

13

140-106

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

8шт.

14

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

8шт.

15

86000535

PLUG,1.427" x .62", Plastic

Auxiliary hydraulics, If used

1шт.

15a

86000535

PLUG,1.427" x .62", Plastic

Accessory option, If used

1шт.

16

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, nylon, used in place of cold start button, if used

1шт.

17

86000535

PLUG,1.427" x .62", Plastic

Used in place of differential lock switch, If used

1шт.

18

86000535

PLUG,1.427" x .62", Plastic

Used in place of four wheel drive switch, If used

1шт.

19

REF

INSTRUCTION

DECAL fuses and relays, see Fig. 9-154, Ref. 4 for decal

1шт.

129586A1

COVER

ASSEMBLY instrument cluster panel, anti vandalism, uses existing hardware, ROPS canopy mode, Includes: Ref. 20 & 21

1шт.

20

NSS

NOT SOLD SEPARAT

COVER instrument cluster panel

1шт.

21

F22426

STOP

BUMPER rubber

3шт.

24

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

4шт.

25

181385A1

RIVET

INSERT threaded, 8 mm - 1.25, if used

1шт.

30

86000535

PLUG,1.427" x .62", Plastic

Ride control, If used

1шт.

Part of Radio-Ready Package, P/N 292654A1

1шт.

31

1340319C1

PLUG

flat face, pry out, 7/16 inch diameter, if used, replaces P/N 353-425

1шт.

Part of Radio-Ready Package, P/N 292654A1

1шт.

32

353-429

PLUG

flat face, pry out, 11/16 inch diameter

1шт.

Part of Radio-Ready Package, P/N 292654A1

1шт.

33

353-401

PLUG,Dome, .312" hole, Nylon

2шт.

Part of Radio-Ready Package, P/N 292654A1

1шт.

34

133714A1

BEACON SWITCH

rocker, rotating beacon

1шт.

34a

86000535

PLUG,1.427" x .62", Plastic

Rotating beacon, If used, Not shown

1шт.

35

86000535

PLUG,1.427" x .62", Plastic

Quick coupler, If used

1шт.

36

86000535

PLUG,1.427" x .62", Plastic

Accessory, If used

1шт.

37

86000535

PLUG,1.427" x .62", Plastic

Low flow, If used

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.

292654A1

RADIO

PACKAGE radio ready, order from Machinery Price List, includes Ref. 7A, 30, 31, 32, and 33, plus see parts on figures 4-44 and 9-132, no longer available, order components

1шт.

Выбрано товаров: 42
