Запчасти Case 580SL (4-018) - SIDE CONSOLE INSTRUMENT HARNESS, OPTIONAL EQUIPMENT HARNESSES (04) - ELECTRICAL SYSTEMS

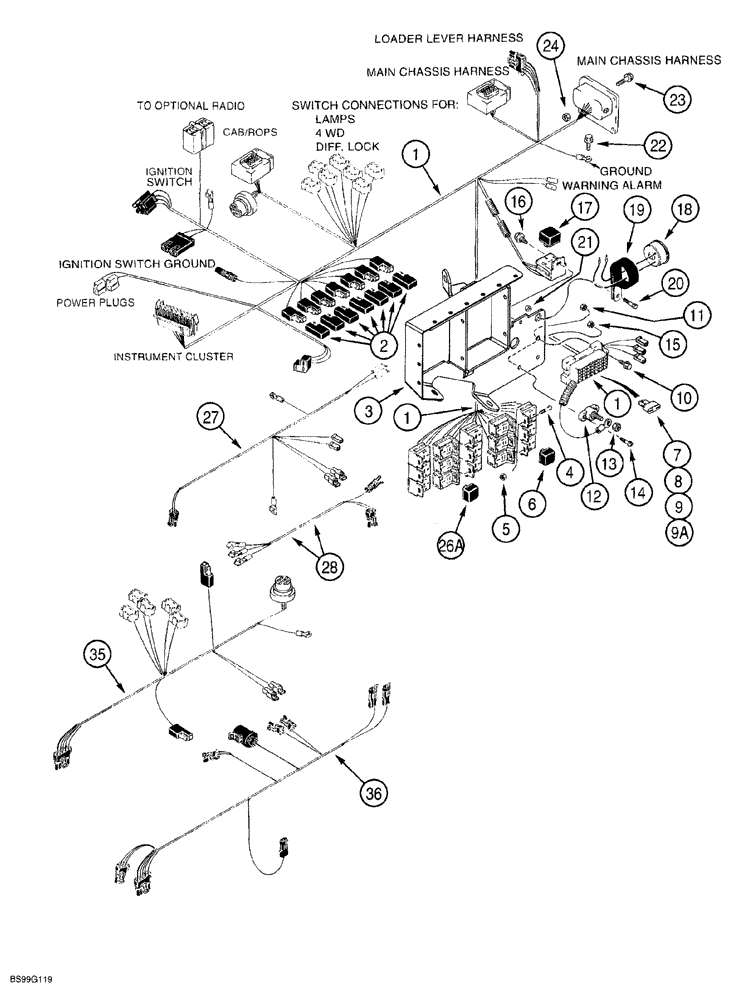

Схема запчастей Case 580SL - (4-018) - SIDE CONSOLE INSTRUMENT HARNESS, OPTIONAL EQUIPMENT HARNESSES (04) - ELECTRICAL SYSTEMS
28
17
9
19
20
5
23
3
1
18
6
22
21
35
2
1
1
8
14
4
13
10
9a
36
27
12
11
26a
15
7
24
16

Артикул

Название

Примечание

Количество

1

282013A3

HARNESS

side instrument console, used with Ref. 26A relay

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

harness, isolation

7шт.

3

304898A1

BRACKET

fuse and relay mounting

1шт.

4

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

6шт.

5

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

6шт.

6

D128310

RELAY

30 ampere, mini, 12 volt

13шт.

7

121412A1

FUSE,10A, Mini, Red

Red

5-6шт.

8

121414A1

FUSE,20A, Mini, Yellow

Yellow

1шт.

9

121413A1

FUSE,15A, Mini, Blue

Blue

2шт.

9a

121416A1

FUSE,30A, Mini, Green

Green

1-2шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

1шт.

12

184277A1

CONNECTION

BLOCK junction, power

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

2шт.

15

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

2шт.

16

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

special, hex washer head, No. 10 NC x 3/8 inch, replaces P/N 281-4556

1шт.

17

D147166

FLASHER UNIT

SWITCH hazard and turn signal

1шт.

18

D137468

BUZZER

ALARM warning, for engine water temperature, engine oil pressure and parking brake

1шт.

19

D120561

CLAMP

P-type, warning alarm, Serial Range: mounting-bracket

1шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

22

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

Ground at loader control bracket brace

1шт.

23

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

1шт.

26a

347706A1

RELAY

sealed time delay, shuttle interlock timing relay, forward reverse control, replaces P/N 278665A1

1шт.

133041A1

KIT

harness, field, to install air conditioning on units not presently equipped with air conditioning, Includes: Refs. 27 & 28

1шт.

27

130876A1

HARNESS

adapter, cab, attaches to side console instrument harness for air conditioning connections

1шт.

28

186607A1

HARNESS

adapter, engine, attaches to side console instrument harness for air conditioning connections

1шт.

35

296508A2

HARNESS

side console options

1шт.

Optional equipment consists of ride control, hand held auxiliary hydraulics, auxiliary backhoe hydraulics and hydraulic quick coupler.

1шт.

36

302803A2

HARNESS

chassis options, replaces P/N 302803A1

1шт.

Optional equipment consists of ride control, hand held auxiliary hydraulics, auxiliary backhoe hydraulics and hydraulic quick coupler.

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
