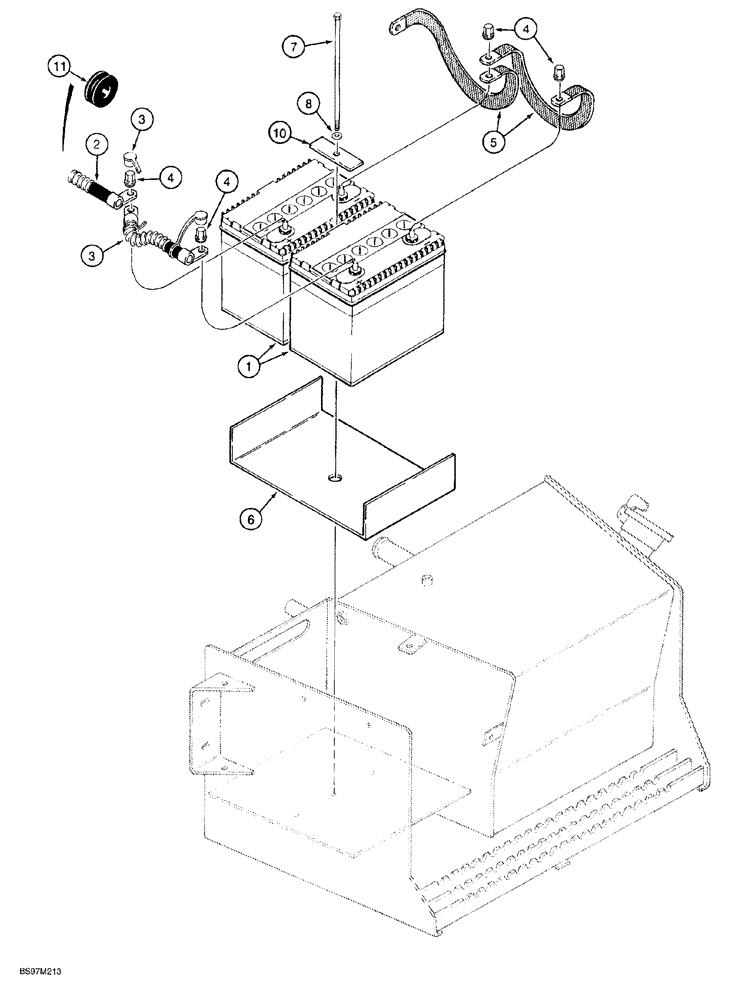

Запчасти Case 580SL (4-014) - DUAL BATTERY COLD START (04) - ELECTRICAL SYSTEMS

1

BMF28S

BATTERY, DRY

BATTERY DRY charged, 12 volt, models with cold start

2шт.

2

184498A1

CABLE

positive, 1460 mm long

1шт.

3

184497A1

CABLE

positive jumper, 227 mm long

1шт.

4

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

hex, special, 3/8 inch NC, battery terminal

4шт.

5

D73383

STRAP

ground, flat

2шт.

6

181338A1

LARGE PLATE

PLATE, LARGE battery mounting, no longer required

1шт.

7

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

hex, 10 - 1.5 x 245 mm

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

1шт.

10

250854A1

STRAP

RETAINER battery plate, top

1шт.

11

257279A1

GROMMET

battery cable, mounts in chassis side channel

2шт.
