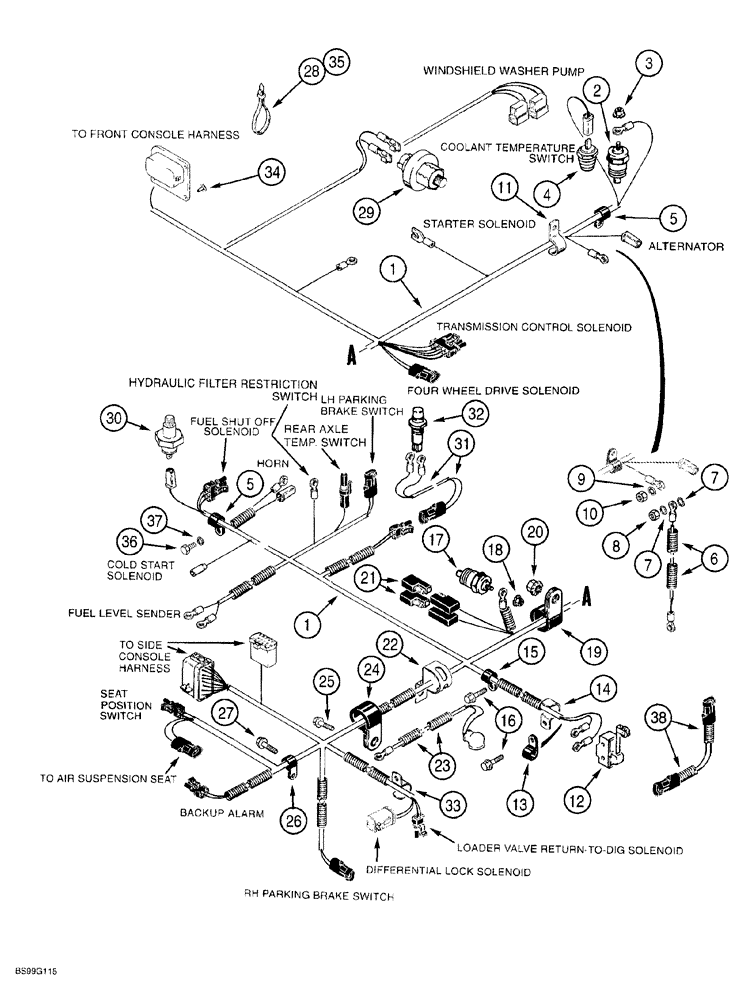

Запчасти Case 580SL (4-010) - ENGINE WIRING HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

282015A5

HARNESS

engine, main, models without air conditioning, replaces P/N 282015A3 and P/N 282015A4

1шт.

1a

282016A5

HARNESS

engine, main, models w/air cond., not shown, used in production, replaces P/N 282016A3 & 282016A4 for service order 282015A5 engine harness above & P/N P186607A1 air conditioning adapter on Fig. 4-18; if replacing main harness on units w/a chassis mounted

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER engine water coolant temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

4

1345488C3

TEMPERATURE SWITCH

coolant temperature

1шт.

5

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, Uses existing engine hardware

2шт.

6

D143830

CABLE

WIRE, 675 mm long, Serial Range: alternator-starter

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

11

D147383

CLIP,5/8" J

CLAMP J-type, uses existing engine hardware

1шт.

12

D137363

SWITCH

return-to-dig, see Fig. 9-10 for switch mounting

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

14

D147383

CLIP,5/8" J

CLAMP J-type

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

SENDER transmission temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

19

242999A1

CLAMP

P-type, double

1шт.

20

829-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

harness, isolation

2шт.

22

192196A2

CLAMP

P-type, spring lock

1шт.

23

184188A1

HARNESS

WIRE power, starter to fuse block, see Fig. 4-20 Ref. 8 for nut at relay block

1шт.

24

49773

CLAMP

P-type, 1-1/4 inch ID

1шт.

25

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type, See Fig. 7-12, Ref 29 for brake cable bracket

1шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

See Fig. 7-12, Ref. 29 for brake cable support bracket and additional hardware

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

27шт.

29

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

30

277016A1

PRESSURE SWITCH

SENDER Oil, 10 mm - (1) O-ring thread (Part number is stamped on sender) Includes: Ref. 30A

1шт.

30a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

P/N 277016A1 Sender, Not shown

1шт.

31

123809A2

WIRE HARNESS

Clutch cutout, Transmission gear shift lever

1шт.

32

123097A1

SWITCH

push-button, clutch cutout, gear shift lever, see Fig. 6-28 for lever and knob

1шт.

33

D147383

CLIP,5/8" J

CLAMP J-type, uses existing loader valve mounting hardware

1шт.

34

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

BOLT hex flange, self tapping, 6 - 1.0 x 13 mm

2шт.

35

305342A1

STRAP,450mm L

tie, 450 mm (18 inch) long, air filter restriction branch to air filter inlet tube

1шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

37

892-11008

LOCK WASHER,8mm ID

1шт.

38

333264A1

HARNESS

pigtail, differential lock, if used

1шт.
