Запчасти Case 580SL (4-008) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

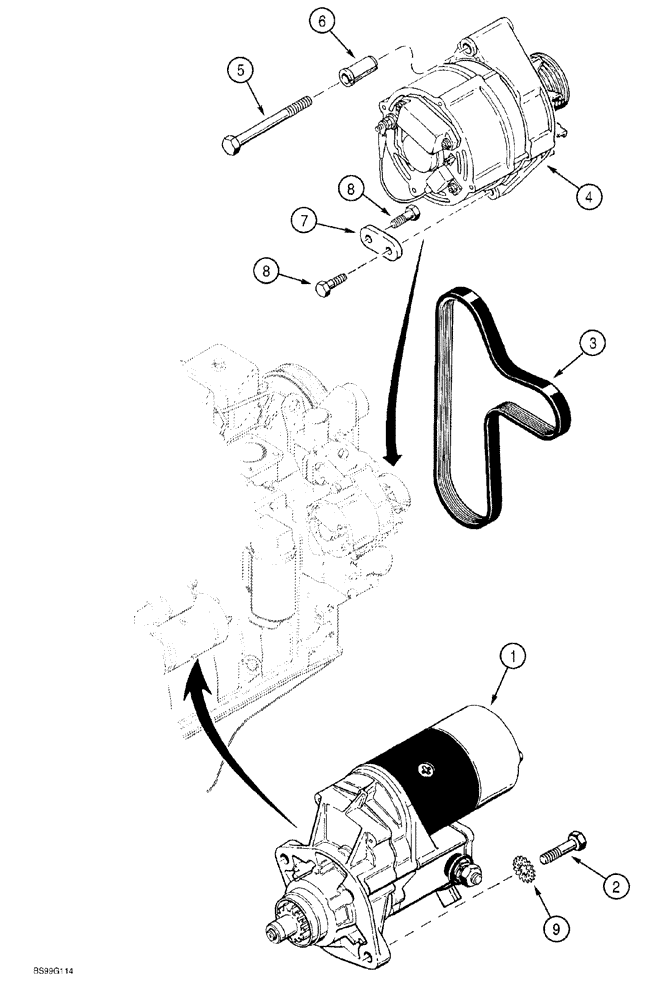

Схема запчастей Case 580SL - (4-008) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
6
1
3
4
8
8
7
9
2
5

Артикул

Название

Примечание

Количество

1

1987559C1

STARTING MOTOR

ASSEMBLY, engine, new, parts list figures 4-2 and 4-4

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

3

J925953

BELT,27.92 mm W x 1490.00 mm L, 8 Ribs

Fan, Alternator and fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

ASSEMBLY, engine, 65 ampere, parts list figure 4-6

1шт.

4

A187873GV

ALTERNATOR

Value, 65A

1шт.

4

87297230

REMAN-ALTERNATOR

Remanufactured 12 Volt, 65 AMP Alternator

1шт.

4

87297231

CORE-ALTERNATOR

Return Part Number, 12 Volt, 65 AMP Alternator

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

6

J902469

SPACER

alternator mounting

1шт.

7

J903089

SUPPORT

BRACE alternator mounting

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

Ground strap

2шт.

Выбрано товаров: 16
