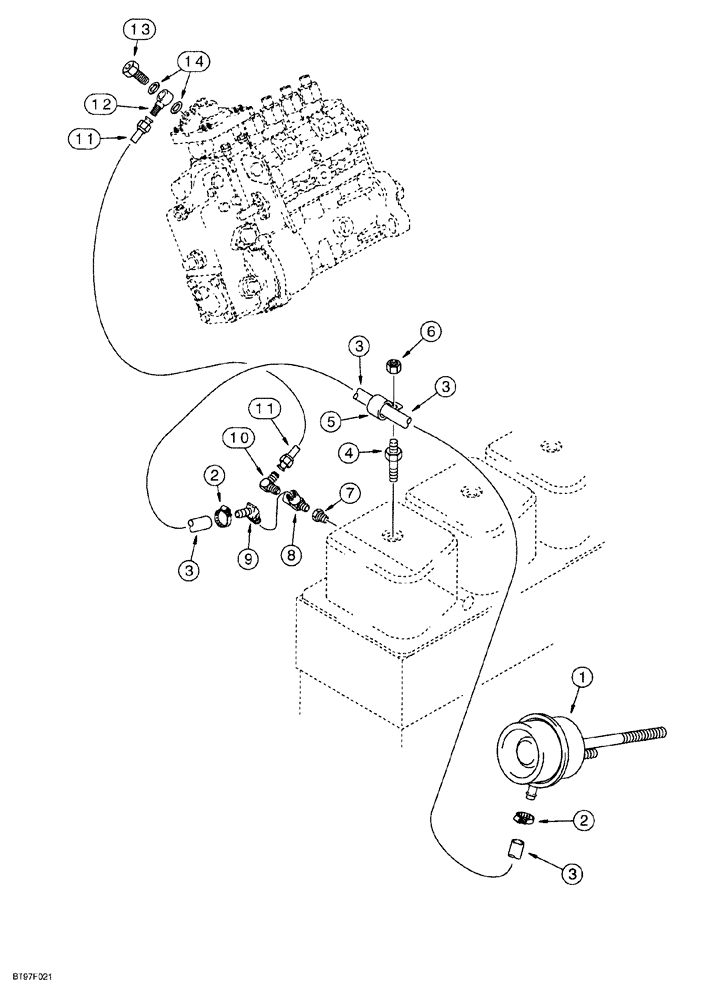

Запчасти Case 580SL (3-014) - ANEROID AND WASTEGATE SYSTEM, 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J537560

ACTUATOR

turbo wastegate, see figure 2-26 for mounting of actuator

1шт.

2

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

Adj

2шт.

3

J926113

HOSE,466.00 mm

Aneroid to Wastegate

1шт.

4

J920344

FLANGE BOLT

valve cover and hose, wastegate actuator mounting

1шт.

5

J920348

CLIP,ELECTRICAL

CLAMP hose

1шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

7

221-87

REDUCER,1/2" NPT x 1/8" NPT

pipe, 1/2 male x 1/8 inch female

1шт.

8

J282406

TEE

1/8-27 str thread x fem str thread x fem str thread

1шт.

9

217-281

FITTING,45 Degree Elbow, 1/4" Hose Barb x 1/8" Male NPTF

Elbow

1шт.

10

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

Compression, 3/16 tube O.D. x 1/8 inch PT

1шт.

11

J934602

TUBE,6.35 mm OD x 110 mm L

TUBE aneroid, nylon, replaces P/N J926738

1шт.

12

J919644

FITTING

CONNECTOR banjo

1шт.

13

J903035

BANJO BOLT

hex, 12 - 1.5 x 24 mm

1шт.

14

J918191

PACKING RING

WASHER sealing, special, 12 x 18 x 1 mm

2шт.
