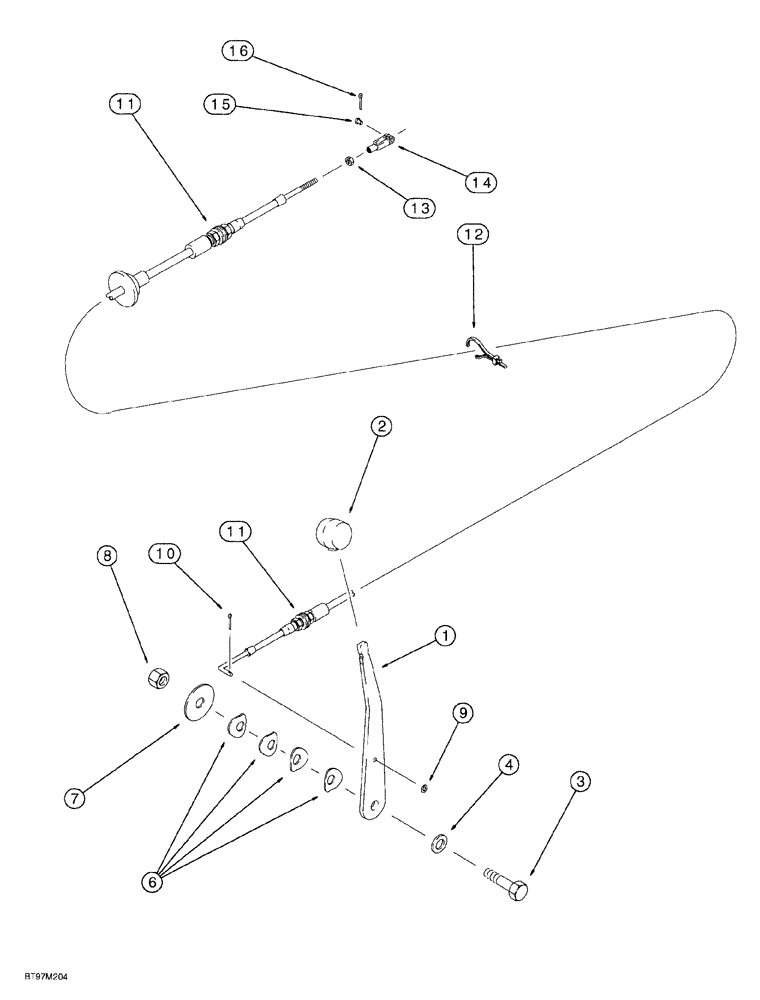

Запчасти Case 580SL (3-006) - THROTTLE CONTROL LINKAGE, HAND CONTROL (03) - FUEL SYSTEM

1

305067A1

LEVER

hand throttle

1шт.

2

A177435

BALL KNOB

lever, lever

1шт.

3

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

Belleville

4шт.

7

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

flat, 33/64 x 2 x 1/8 inch, hardened

1шт.

8

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

9

495-31022

WASHER,#10

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

1шт.

11

121335A1

CABLE

control, hand throttle

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

13

225-14210

NUT,#10-32

1шт.

14

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

15

427-3058

CLEVIS PIN,3/16" x .580"

Hardened

1шт.

16

432-48

COTTER PIN,1/16" x 1/2"

1шт.
