Запчасти Case 580SL (3-002) - FUEL RESERVOIR AND FUEL LEVEL SENSOR (03) - FUEL SYSTEM

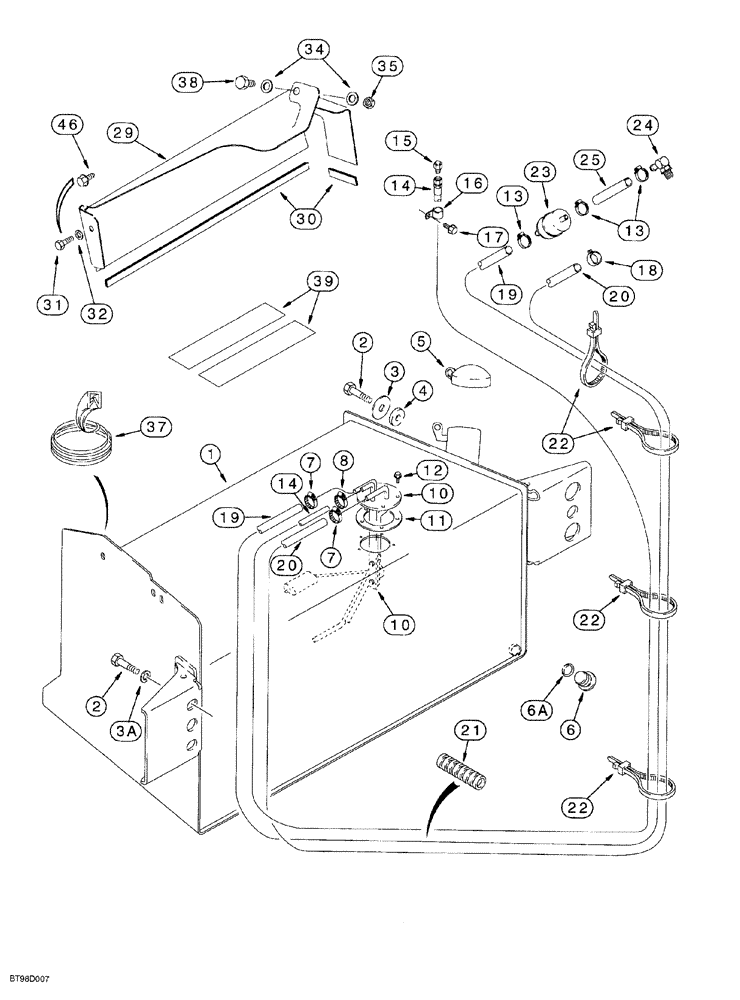

Схема запчастей Case 580SL - (3-002) - FUEL RESERVOIR AND FUEL LEVEL SENSOR (03) - FUEL SYSTEM
6a
2
46
23
31
4
12
32
6
29
20
20
24
1
15
21
14
38
34
16
30
39
25
14
19
3a
22
2
17
3
10
22
8
10
5
13
22
35
7
18
11
37
13
7
19

Артикул

Название

Примечание

Количество

1

284041A3

FUEL TANK

reservoir, 31 gallon, includes left hand steps, mounts to left hand side of chassis, also Includes: Ref. 6 plug

1шт.

1a

281819A4

FUEL TANK

reservoir, 40 gallon, optional, includes left hand steps, mounts to left hand side of chassis, Includes: Ref. 6 plug, if used, not shown

1шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

flat, hardened, special

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

flat, 22 x 37 x 4 mm, hardened

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

bushing, left hand side of tank

2шт.

5

130049A1

FILLER CAP

fuel tank, non-vented

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Included with Ref. 1 or 1A Fuel Tank, Includes Ref. 6A

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

adj., 1/2 - 29/32 inch dia.

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

Center hose

1шт.

10

284431A1

SENDER UNIT

SENDER fuel level, 31 gallon tank, Ref 1, includes grounding nut, lock washer and flat washer

1шт.

10

298463A1

SENDER UNIT

SENDER fuel level, 40 gallon tank, Ref 1A, includes grounding nut, lock washer and flat washer

1шт.

11

188311A2

GASKET,2.38mm Thk

fuel sensor

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

self tapping, hex washer head, special, No. 10 NF x 5/8 inch

5шт.

13

196252A1

CLAMP

hose

3шт.

14

234892A1

HOSE

HOSE,LARGE 1100 mm (43-5/16 inch) long, vent

1шт.

15

130047A1

BREATHER ASSY.

VENT fuel, 1/4 inch PTF short

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

1шт.

18

1348264C1

HOSE CLAMP

3/8 inch

1шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply, to Fuel Lift Pump

1шт.

20

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

Fuel Return, Attaches to Injector Return Line on Engine

1шт.

21

130048A1

PROTECTOR

SLEEVE, 203 mm (8 inch) long, fuel line hose guard

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

23

194199A1

FUEL FILTER

fuel, in line

1шт.

24

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

ELBOW, 90 degree, 1/2 stem end x 1/4 inch PT, to engine fuel lift pump

1шт.

25

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

Fuel Filter to Lift Pump

1шт.

29

189602A2

COVER ASSY

left hand loader lift frame tubing, mounted above fuel reservoir, models without clam bucket or auxiliary hydraulics, replaces P/N 189602A1

1шт.

29a

188009A2

COVER ASSY

left hand loader lift frame tubing, mounted above fuel reservoir, models with clam bucket, not shown, replaces P/N 188009A1

1шт.

30

191046A1

ORNAMENTAL STRIP

TRIM edge, 650 mm (25 - 19/32 inch) long, cut from P/N A165860 bulk

1шт.

Apply 75 mm (3 inch) of trim to front lower edge and 570 mm (22-7/16 inch) of trim to outside lower edge of cover

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

if used

1шт.

37

D40442

MOLDING

TRIM edge, 305 mm (12 inch) long, cut from P/N F42827 bulk

1шт.

38

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Used with P/N 188009A2 cover on models with three spool loader valves

1шт.

38

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with P/N 189602A2 cover on models with two spool loader

1шт.

39

307348A1

ANTI-SKID STRIP

700 mm (27-9/16") long

2шт.

46

307577A1

BOLT

hex washer, self aligning, 8 - 1.25 x 20 mm

1шт.

A165860

TRIM

TRIM edge, bulk, 696 mm (27-3/8 inch) long

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If used

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

P/N 189602A1 Cover

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1-2шт.
