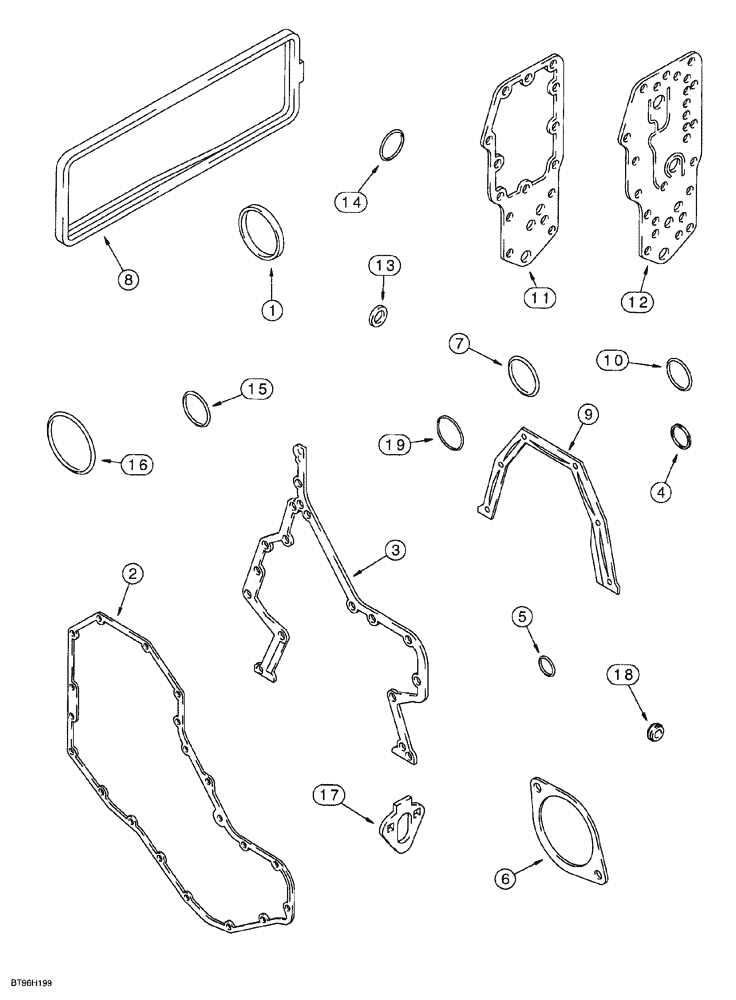

Запчасти Case 580SL (2-050) - GASKET KIT, 4T-390 EMISSIONS CERTIFIED ENGINE, CYLINDER BLOCK (02) - ENGINE

A77864

SEAL PACKAGE

KIT gasket, cylinder block, Includes: Ref. 1-19

1шт.

For complete engine overhaul, order (1) cylinder block kit, (1) valve grind kit on figure 2-048, (1) oil pan kit on figure 2-030, (1) front and rear crankshaft seal kit on figure 2-042 and the required cylinder head gasket on figure 2-032.

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

front access cover

1шт.

2

J918673

GASKET,1.02mm Thk

front, Serial Range: cover,-housing

1шт.

3

J931351

GASKET

gear housing, timing

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING Quad, timing pin housing

1шт.

5

J913994

O-RING

sealing, timing pin

1шт.

6

J929751

GASKET

access cover plate, accessory drive

1шт.

7

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to cylinder block

1шт.

8

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

9

J928493

GASKET

rear cover retainer, crankshaft

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID, water inlet connection

1шт.

11

J942914

GASKET

oil cooler core

1шт.

12

J929792

GASKET,1.2mm Thk

filter head, oil

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug, oil pan

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID, engine oil fill tube

1шт.

15

J929457

O-RING

oil filter plug

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

17

J931059

GASKET

mounting, fuel transfer pump, replaces P/N J931348

1шт.

18

J928759

SEALING WASHER

cover bolt

4шт.

19

J935032

SEAL

O-RING, replaces P/N J930993

1шт.
