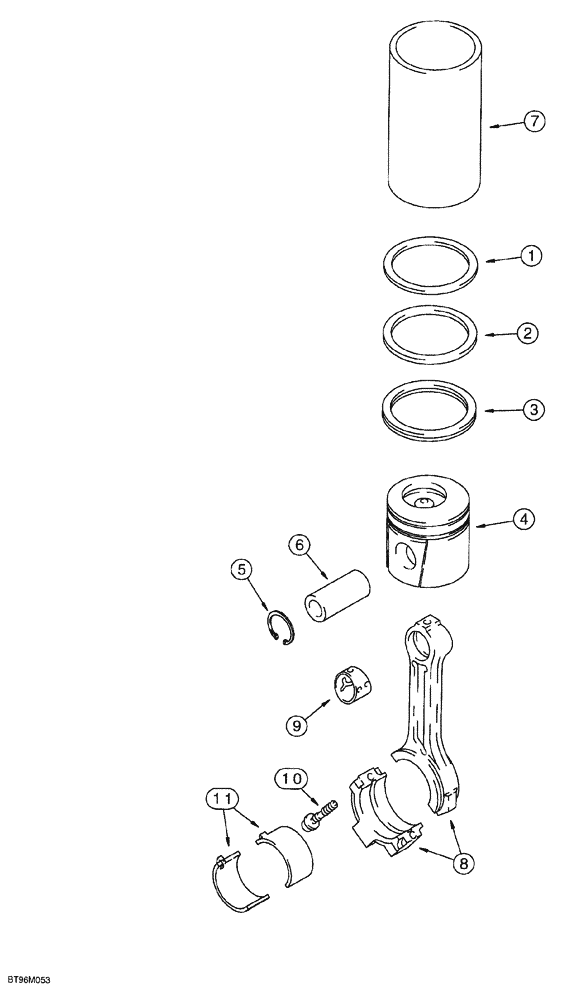

Запчасти Case 580SL (2-046) - PISTONS AND CONNECTING RODS, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, Includes: Ref. 1-5 and P/N J802746

4шт.

J802746

PISTON RING SET

KIT, standard, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, standard

1шт.

5

J901706

RING

snap, pistons

2шт.

6

J919053

PISTON PIN

1шт.

J802764

PISTON & RINGS KIT

0.5 mm oversize, Includes: Ref. 1-5 and P/N J802422

4шт.

J802422

PISTON RING SET

KIT, 0.5 mm oversize, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 0.5 mm oversize

1шт.

5

J901706

RING

snap, pistons

2шт.

6

J919053

PISTON PIN

1шт.

J802765

PISTON & RINGS KIT

1.0 mm oversize, Includes: Ref. 1-5 and P/N J802423

4шт.

J802423

PISTON RING SET

KIT, 1.0 mm oversize, Includes: Ref. 1-3

1шт.

1

NSS

NOT SOLD SEPARAT

RING compression, top, pistons

1шт.

2

NSS

NOT SOLD SEPARAT

RING compression, middle, pistons

1шт.

3

NSS

NOT SOLD SEPARAT

RING oil, bottom, pistons

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON cylinder, 1.0 mm oversize

1шт.

5

J901706

RING

snap, pistons

2шт.

6

J919053

PISTON PIN

1шт.

7

J904166

SLEEVE

LINER piston, used only in engine block repair, when liner is installed, use P/N J802747 standard piston kit.

1шт.

J942581

ROD, CONNECTING

ASSEMBLY, new, includes both halves, Includes: Ref. 8-10

4шт.

JR942581

REMAN-CONNECTING ROD

Assembly, Includes: Ref. 8-10, component parts shown on this figure do not apply to the remanufactured assembly

4шт.

JC942581

CORE-ROD CONNECTING

Return Number

4шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod Return Number, use this part number to return for credit when using a remanufactured assembly, Includes: Ref. 8-10

4шт.

84145405R

REMAN-CONNECTING ROD

580SL, Reman For New PN J942581

4шт.

84145405C

CORE-ROD CONNECTING

Return Number

4шт.

8

NSS

NOT SOLD SEPARAT

ROD connecting

1шт.

9

J941476

BUSHING

Connecting rod

1шт.

10

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT hex, special, connecting rod

2шт.

11

A77465

BEARING SET

KIT, upper and lower set, standard

4шт.

11

A77466

BEARING SET

KIT, upper and lower set, 0.25 mm oversize

4шт.

11

A77467

BEARING LINER

KIT, upper and lower set, 0.50 mm oversize

4шт.

11

A77468

BEARING SET

KIT, upper and lower set, 0.75 mm oversize

4шт.

11

A77469

BEARING SET

KIT, upper and lower set, 1.00 mm oversize

4шт.
