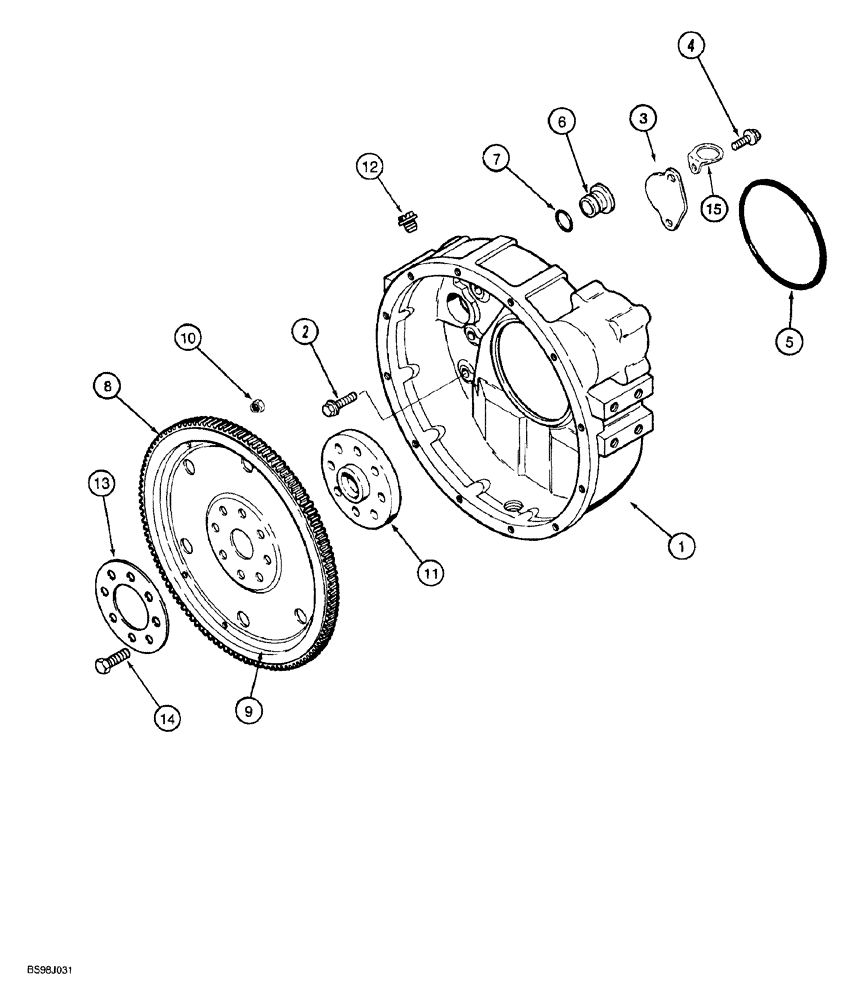

Запчасти Case 580SL (2-044) - FLYWHEEL AND HOUSING, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J930886

HOUSING ASSY.

flywheel

1шт.

2

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

3

J925234

PLATE

cover

1шт.

4

613-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

BOLT hex, 8 - 1.25 x 16 mm, retaining plate

2шт.

5

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING flywheel, Serial Range: housing-block

1шт.

6

J910248

PLUG

flywheel housing

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Sealing

1шт.

J934937

FLYWHEEL

PLATE ASSEMBLY, flex, replaces P/N J922595, models without powershift transmission, Includes: Ref. 8-10

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR ring, flywheel

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE flex

1шт.

10

NSS

NOT SOLD SEPARAT

NUT sealing

6шт.

11

J913689

FLANGE

ADAPTER crankshaft, models without powershift transmission

1шт.

12

353-225

PLUG,Sltd Hd, 3/4"-16

1шт.

13

J904361

WASHER

RING clamping, models without powershift transmission

1шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

15

J928989

CLIP

retaining

1шт.

J910284

FLYWHEEL

ASSEMBLY, engine, models with powershift transmission, not shown, Includes: Ref. 16

1шт.

16

J901774

GEAR,Flywheel

GEAR, models with powershift transmission, not shown

1шт.

17

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

flat, special, flywheel bolt, models with powershift transmission, not shown

8шт.
