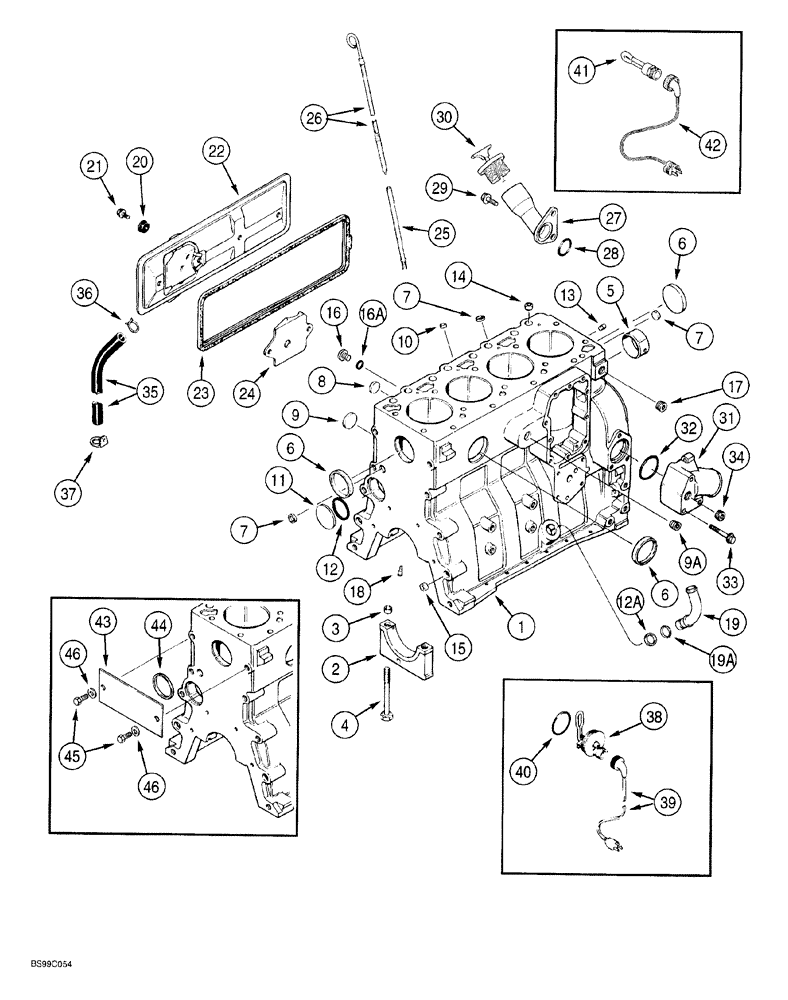

Запчасти Case 580SL (2-038) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

236300A1

ENGINE ASSEMBLY

ENGINE ASSY 4T-390 Emissions Certified, complete, for service order 234277A2 basic engine below, models without powershift transmission

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover

1шт.

236300A1R

ENGINE, EXCHANGE

Reman for newPN 236300A1

1шт.

4T-391C

CORE

Return Number, use this part number to return P/N 23600A1 or P/N 23600A1R

1шт.

283202A2

ENGINE ASSEMBLY

ENGINE ASSY 4T-390 Emissions Certified, complete, models with powershift transmission

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover

1шт.

87605117

ENGINE

Replacement, CDC, 3.9L, 4 Cyl.

1шт.

84251596R

REMAN-REPLACEMENT EN

Remanufactured

1шт.

84251596C

CORE-REPLACEMENT ENG

Return Number, CDC, 3.9L, 4 Cyl.

1шт.

234277A2

BASIC ENGINE

ASSEMBLY, includes all parts except starter, alternator, fan, fan belt, air cleaner,muffler,exhaust manifold,flywheel & housing,oil fill & dipstick,fuel injection pump,injectors & lines,front pulley,belt tensioner, turbocharger & aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

ASSEMBLY basic, remanufactured, Component parts shown on this Fig. do not apply to the remanufactured assembly

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY, new, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY, remanufactured, component parts shown on this Fig. do not apply to the remanufactured assembly

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

87444172

BLOCK ASSY.

stripped, engine, order P/N J933220 block hardware kit shown below, Includes: Ref. 2 - 8

1шт.

2

J903492

BEARING CAP

CAP main, Includes: Ref. 3

5шт.

3

J900068

BEARING WASHER

RING dowel, 18 mm O.D., main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

Main bearing cap, Special

10шт.

5

REF

INSTRUCTION

BUSHING camshaft front, see Fig. 2-36, Ref. 2

1шт.

6

A77782

PLUG

expansion, 58 mm O.D.

1шт.

7

J900956

PLUG

expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion

2шт.

J933220

PACKAGE,SERVICE

KIT block hardware, Includes: Ref. 9 - 18

1шт.

9

J900958

PLUG

expansion, 32 mm O.D.

2шт.

9a

A77505

PLUG

hex socket, 3/4 inch PT

1шт.

10

J900955

PLUG

expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

expansion, Welch, 60 mm O.D.

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

O-RING sealing, 57 mm ID

1шт.

12a

J920706

PLUG

expansion, 22 mm O.D., not used in this application, Ref. 19, P/N J931973 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING dowel, 18 mm O.D.

2шт.

16

J678923

PLUG,M10 x 1

hex socket, 10 mm, Includes: Ref. 16A

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Plug

1шт.

17

A77429

PLUG

hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

hex socket, 14 mm, not shown, Includes: Ref. 17B

1шт.

Refs. 17A - 17E are not used in this application

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing, Not shown

1шт.

Refs. 17A - 17E are not used in this application

1шт.

17c

J932296

PLUG

timing sensor hole, not shown, Includes: Ref. 17D

1шт.

Refs. 17A - 17E are not used in this application

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

sealing, not shown

1шт.

Refs. 17A - 17E are not used in this application

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

Not shown

1шт.

Refs. 17A - 17E are not used in this application

1шт.

18

J930139

NOZZLE CAP

piston cooling

4шт.

19

J931973

TUBE,0.875" OD

turbocharger oil drain, replaces P/N J903744

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING sealing, 18 mm ID

1шт.

20

J900267

SEAL

cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

2шт.

22

J925680

COVER

tappet

1шт.

23

J283767

GASKET,7.4mm Thk

tappet cover

1шт.

24

J907586

BAFFLE

tappet cover

1шт.

25

J905127

TUBE,9.52 mm OD x 180 mm L

dipstick

1шт.

26

J904287

DIPSTICK

oil level gauge

1шт.

27

J934190

TUBE

oil fill

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING, 38 mm (1-1/2 inch) ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

Heavy

2шт.

30

A77424

FILLER CAP

CAP oil fill tube

1шт.

31

J934877

HYD CONNECTOR

water inlet, replaces P/N J903102 connection

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

Heavy

3шт.

34

A77429

PLUG

hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather

1шт.

36

J904230

CLAMP,25.4mm

spring, hose

1шт.

37

J928989

CLIP

retaining

1шт.

196803A1

KIT

engine block heater, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt

1шт.

39

196466A1

ELECTRIC CABLE

engine block heater

1шт.

40

J910517

O-RING

heater sealing

1шт.

309651A1

KIT

engine block heater

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT engine heater, 120 volt, 750 watt

1шт.

Install item 41 element in place of item 9A, A77505 plug.

1шт.

42

196466A1

ELECTRIC CABLE

engine block heater

1шт.

323698A1

KIT

expansion plug repair, Includes: Ref. 43 - 46

1шт.

43

322984A1

PLATE

cover

1шт.

44

J910530

SEAL

quad ring

1шт.

45

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

46

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

A77887

PACKAGE,SERVICE

KIT engine overhaul, includes Ref. 47 - 54, not shown

1шт.

47

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

standard, see Fig. 2-046

4шт.

48

J919053

PISTON PIN

See Fig. 2-046

4шт.

49

A77465

BEARING SET

KIT, upper and lower set, standard, see Fig. 2-046

4шт.

50

A77405

CRANKSHAFT BEARING

main, upper and lower set, standard, see Fig. 2-042

4шт.

51

A77896

BEARING SET

main, upper and lower set, standard, see Fig. 2-042

1шт.

52

A77870

SEAL PACKAGE

KIT gasket, valve grind, see Fig. 2-048

1шт.

53

J283333

CYLINDER HEAD GASKET,2.32mm Thk

head, standard, see Fig. 2-032

1шт.

54

A77673

GASKET KIT

oil pan, see Fig. 2-030

1шт.
