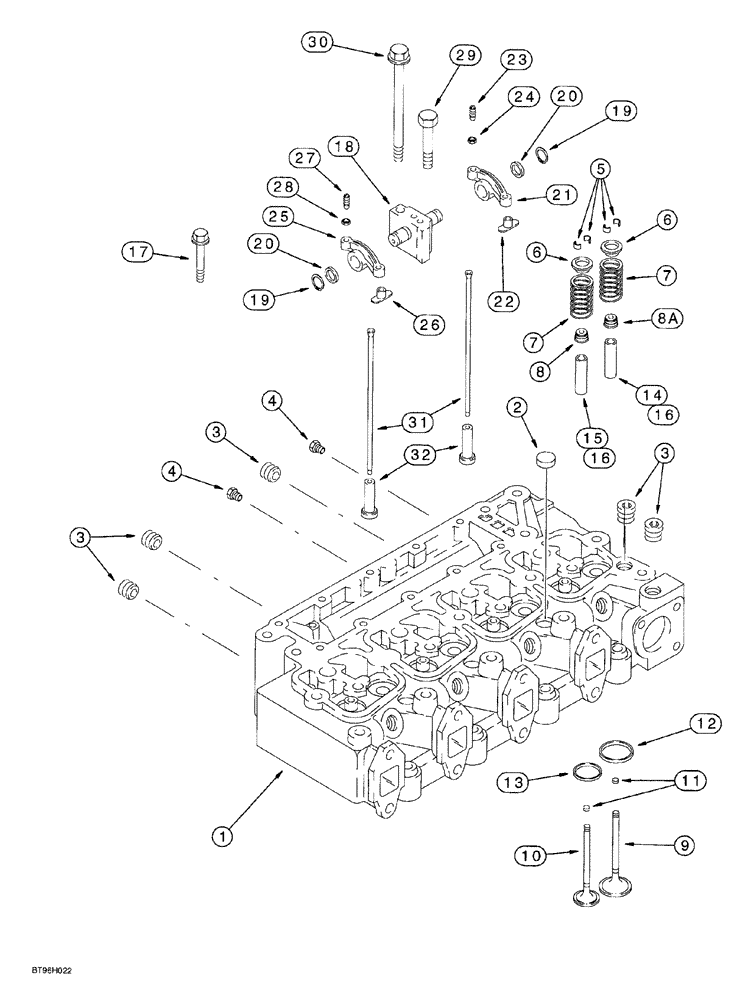

Запчасти Case 580SL (2-034) - CYLINDER HEAD AND VALVE MECHANISM, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

JR927330

REMAN-CYLINDER HEAD

ASSY., North America only, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

JC927330

CORE-CYLINDER HEAD

RETURN NUMBER, use this part number to return head for credit when using a remanufactured assembly

1шт.

1

J927330

HEAD (CYLINDER)

ASSEMBLY, new, with valves, Includes: Ref. 1-10

1шт.

1

J933422

HEAD (CYLINDER)

ASSEMBLY, new, without valves, replaces P/N J917433, Includes: Ref. 2

1шт.

2

A77783

PLUG

expansion, 21 mm O.D.

3шт.

3

217-466

DRAIN PLUG,Sq Soc, 1/2" - 14, NTPF

One removed to install temperature sending unit

5шт.

4

J906619

PLUG,1/8" - 27

hex, 1/8 inch PT

2шт.

5

CASJ900250

RETAINER

KEEPER valve

16шт.

6

J935038

RETAINER

valve spring, replaces P/N J900299

8шт.

7

J926700

VALVE SPRING

8шт.

8

J921640

SEAL

valve, replaces a quantity of 4 of P/N J901097

4шт.

8a

J921640

SEAL

valve

4шт.

9

J920867

VALVE

intake

4шт.

10

J920868

VALVE

exhaust

4шт.

11

J280911

WEAR PAD

service repair only for valve stem tip, for use on intake and exhaust valves

1шт.

12

J906854

SEAT, VALVE

insert, intake valve, service repair only

4шт.

13

J904105

SEAT, VALVE

insert, exhaust valve, service repair only

4шт.

14

J904408

GUIDE

valve, intake, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides

1шт.

15

J904409

GUIDE

valve, exhaust, service repair only, 14 mm O.D.

4шт.

These parts are semi-finished valve guides

1шт.

16

J906206

GUIDE

valve, intake and exhaust, service repair only, 11 mm O.D.

8шт.

These parts are semi-finished valve guides

1шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

Cylinder head, 70 mm long

4шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

Cylinder head, 120 mm long

10шт.

18

J922488

SUPPORT

AND SHAFT ASSEMBLY rocker arm

4шт.

19

J900242

SNAP RING

retaining, rocker arm

8шт.

20

J900245

WASHER

thrust, rocker arm

8шт.

21

J910811

ROCKER

ARM ASSEMBLY, intake, Includes: Ref. 22-24

4шт.

22

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

23

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

24

A77902

NUT

hex, 3/8 inch NF, replaces P/N 425-116

1шт.

25

J910810

ROCKER

ARM ASSEMBLY, exhaust, Includes: Ref. 26-28

4шт.

26

NSS

NOT SOLD SEPARAT

INSERT rocker arm

1шт.

27

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

slotted set, adjusting, special

1шт.

28

A77902

NUT

hex, 3/8 inch NF, replaces P/N 425-116

1шт.

29

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

4шт.

30

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

Rocker arm and cylinder head, 180 mm long

4шт.

31

J284377

PUSH ROD

rocker arm, replaces P/N J923262 rod

8шт.

32

J931623

TAPPET

valve, push rod

8шт.
