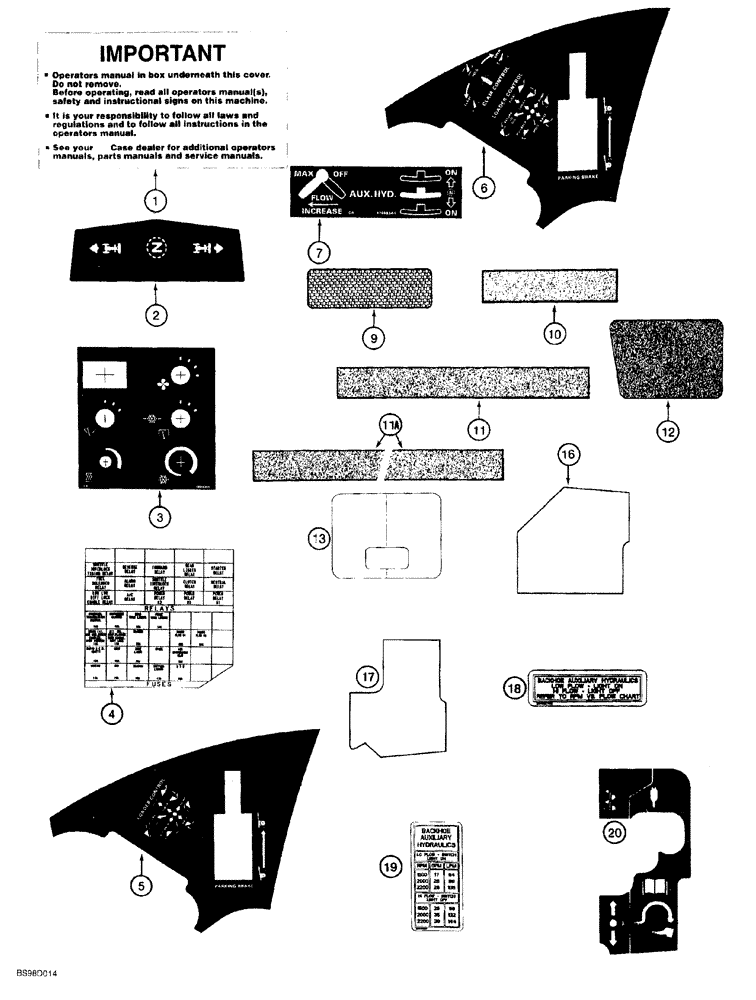

Запчасти Case 580SL (9-154) - DECALS (09) - CHASSIS/ATTACHMENTS

1

144193A2

DECAL

Important, operators manual in box underneath this cover, glove box lid, replaces P/N 144193A1

1шт.

2

D137615

DECAL

shuttle shift lever control pattern, on steering column cover

1шт.

3

135183A1

DECAL

instrument symbols, wipers and environmental control

1шт.

4

284482A3

DECAL

fuses and relays, loader control console fuse access panel cover

1шт.

5

137290A1

DECAL

two function loader control, lift and bucket control pattern

1шт.

6

137289A1

DECAL

three function loader control, lift, bucket and clam control pattern

1шт.

7

179683A1

DECAL

hand held auxiliary hydraulics, if used

1шт.

9

D87870

DECAL

REFLECTOR red

2шт.

10

D55216

PAD,2" x 9"

5 used on cab models, 11 used on canopy models, one used on hydraulic oil tank

5-11шт.

11

D80270

ANTI-SKID STRIP,635mm / 25 Inch

2 used on cab models, 3 used on canopy models

2-3шт.

11a

307348A1

ANTI-SKID STRIP

700 mm (27-9/16") long, 40 gallon fuel tank

2шт.

12

128804A1

DECAL

STRIP anti skid

2шт.

13

192450A1

DECAL

clear vinyl, hood

1шт.

14

192299A1

DECAL

auxiliary hydraulics, at rocker switch on instrument panel, if used

1шт.

15

192300A1

DECAL

remote auxiliary hydraulics, operating instructions, if used

1шт.

16

197345A1

LINING

PAD anti skid, left hand, ROPS canopy models

1шт.

17

197346A1

LINING

PAD anti skid, right hand, ROPS canopy models

1шт.

18

284627A1

DECAL

backhoe auxiliary hydraulics, low flow - light on/hi flow - light off

1шт.

19

284479A1

DECAL

backhoe auxiliary hydraulics, hi flow/low flow

1шт.

20

299383A1

DECAL

backhoe auxiliary hydraulic control, mounts on control tower

1шт.
