Запчасти Case 580SL (9-150) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS

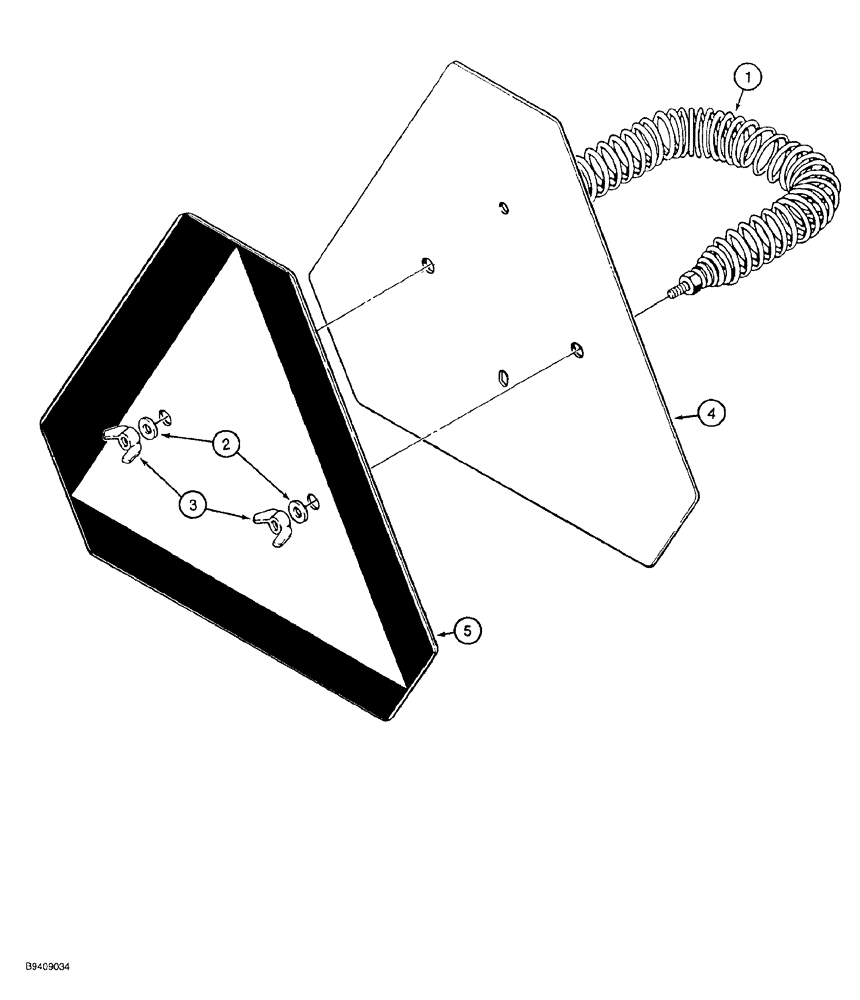

Схема запчастей Case 580SL - (9-150) - SLOW MOVING VEHICLE EMBLEM (09) - CHASSIS/ATTACHMENTS
1
5
4
3
2

Артикул

Название

Примечание

Количество

1

D52564

SPRING

emblem retaining

1шт.

2

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16")

2шт.

3

129-409

WING NUT,1/4"-20

1/4 inch NC

2шт.

4

D123347

WARNING SIGN

EMBLEM plate and decal, slow moving vehicle, Includes: Ref. 5

1шт.

5

321-4311

DECAL

SMV emblem

1шт.

Выбрано товаров: 5
