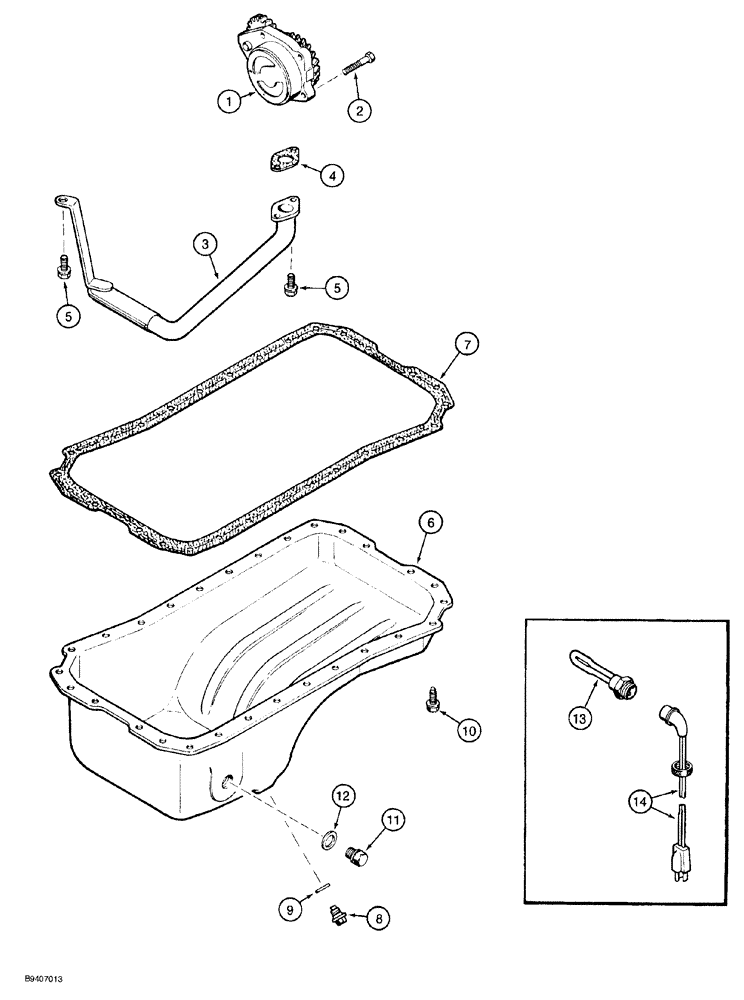

Запчасти Case 580SL (2-030) - OIL PUMP AND OIL PAN, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

J930336

PUMP, ENGINE OIL

new

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

J900677

BOLT,Hex

hex, full threads, 8 - 1.25 x 30 mm

4шт.

3

J905206

TUBE,1" OD

suction, oil

1шт.

4

J931349

GASKET

mounting, oil suction tube

1шт.

Part of gasket kit, P/N A77673

1шт.

5

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET oil pan, order P/N A77673 gasket kit for service

1шт.

Part of gasket kit, P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

hex magnetic, special, 18mm - 1.5, drain, oil

1шт.

9

J920773

SEALING WASHER

18mm, drain plug

1шт.

Part of gasket kit, P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

8 - 1.25 x 25 mm

28шт.

11

J924148

PLUG,M22 x 1.5

hex magnetic, special, 22 mm - 1.5, pipe, heater hole

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

sealing, plug

1шт.

When engine oil heater kit is ordered, Ref. 12, J902425 washer must also be ordered.

1шт.

A77673

GASKET KIT

oil pan, includes Refs. 4, 7, 9, and P/N A77673

1шт.

A77490

KIT

heater, engine oil, Includes: Refs. 13 & 14

1шт.

When engine oil heater kit is ordered, Ref. 12, J902425 washer must also be ordered.

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT heater, 120 volt, engine oil

1шт.

14

196466A1

ELECTRIC CABLE

engine block heater, oil

1шт.
