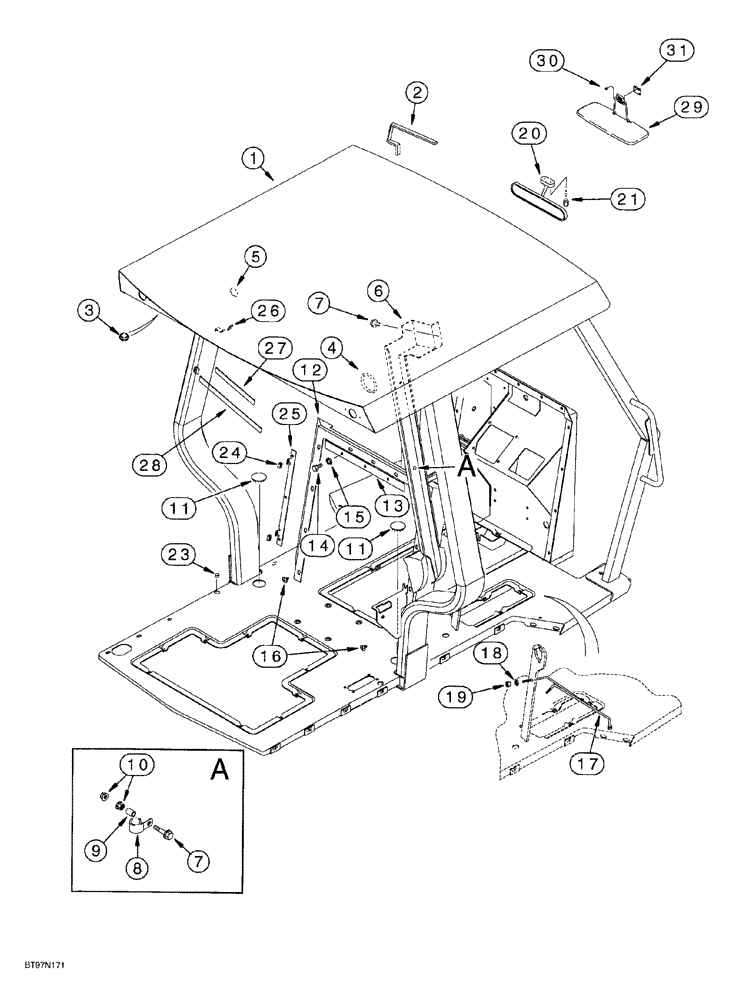

Запчасти Case 580SL (9-146) - ROPS CANOPY, OPERATORS COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

281001A1

ROPS

ASSEMBLY CANOPY, order from Machinery Price List, for service order P/N 281004A1 which is the complete ROPS canopy with the decals and mounts

1шт.

2

D60180

STRIP

TRIM edge, 368 mm (14-1/2 inch) long, cut from P/N F42827 bulk trim, if used

2шт.

345-133

GLUE

ADHESIVE, Superbonder 409, attaches wire harness to POPS post, if used

1шт.

3

353-405

PLUG,Dome, .562" hole, Nylon

button, 9/16 inch

4-10шт.

4

1302758C1

PLUG

plastic, 89 mm O.D., replaces P/N D93716

4шт.

5

353-417

PLUG,Dome, 2.000" hole, Nylon

button, 2 inch, nylon, driving, flood and work lamps

8шт.

6

127324A1

COVER

wiring, right hand ROPS post

1шт.

7

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

self drilling tapping, hex washer head, No. 10 - 16 x 3/4 inch, Teflon

3шт.

8

D147383

CLIP,5/8" J

CLAMP J-type, canopy harness to ROPS post

2шт.

9

128265A1

SPACER,10.31mm ID x 15.85mm OD x 13mm L

clamp

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

11

205-129

HOLE PLUG BUTTON,2"

button, 2 inch ID, floor

2шт.

12

143121A1

MOLDING

SEAL firewall

1шт.

13

143127A1

PLATE

stiffener, firewall

1шт.

14

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

9шт.

15

892-11008

LOCK WASHER,8mm ID

9шт.

16

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER push in, plastic

2шт.

17

180801A1

SUPPORT

BRACE loader control bracket

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

19

425-106

NUT,3/8"-16, Cl 5

6шт.

20

194513A1

MIRROR

rear view, interior

1шт.

21

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Self tapping

2шт.

23

353-406

PLUG,Dome, .625" hole, Nylon

button, 5/8 inch, if used

1шт.

24

127367A1

NUT,M6, U

4шт.

25

137851A1

PLATE

bar, front console, Serial Range: mounting-firewall

2шт.

26

294666A1

COVER

coat hook

1шт.

27

296367A1

STRAP

velcro

1шт.

28

282845A1

STRAP

velcro

1шт.

29

E47027

VISOR, SUN

shade

1шт.

30

260-14516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

self tapping, pan Phillips, No. 10-16 x 1 inch, replaces P/N 260-14512, 3/4 inch long screw used on some models

3шт.

31

307243A1

SHIM,60mm W x 45mm L x 3mm Thk

plate, visor mounting

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.
