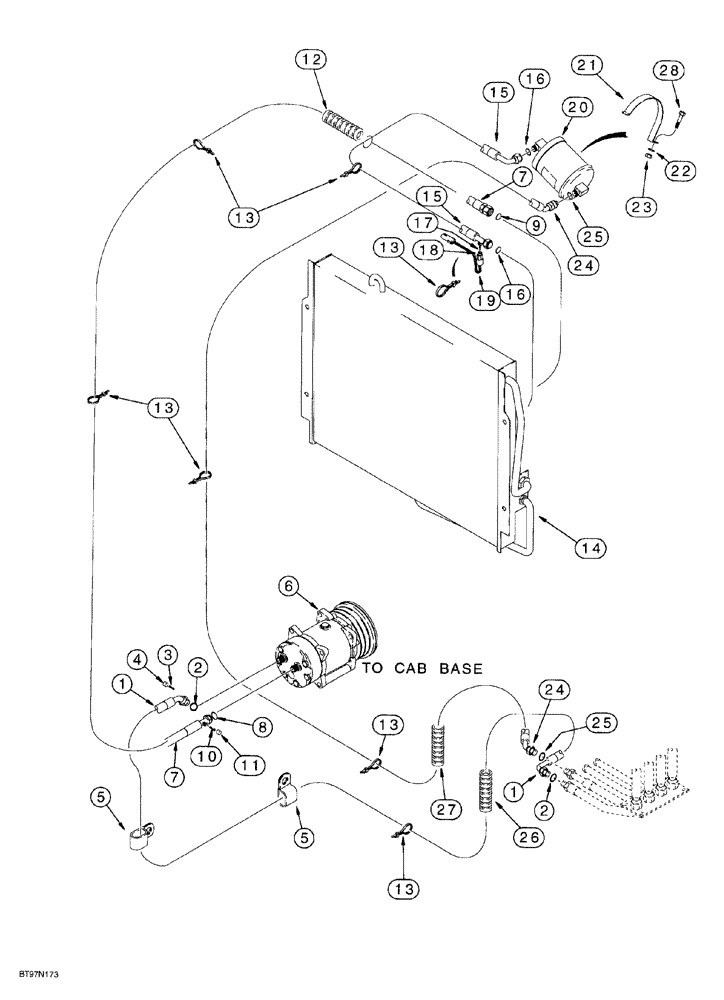

Запчасти Case 580SL (9-142) - AIR CONDITIONING, CONDENSOR AND RECEIVER, DRIER (09) - CHASSIS/ATTACHMENTS

1

305822A1

HOSE

2855 mm (112-7/16 inch) long, compressor to cab base, Includes: Refs. 2-4

1шт.

2

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, hose end

2шт.

3

1250594C1

CORE

VALVE, hose, low side service port

1шт.

4

122553A1

CAP

sealing

1шт.

5

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

P-type, 1 inch ID, hose to inner left hand side of chassis, uses existing hardware, if used

1-2шт.

6

1999755C2

COMPRESSOR

ASSEMBLY, air conditioning, parts list Fig. 9-144

1шт.

86993462R

REMAN-COMPRESSOR

580SL SERIES 2; Reman For New P/N 1999755C2

1шт.

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

48017123R

REMAN-A/C COMP KIT

Reman AC Compressor Kit

1шт.

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/ HFC134A Refrigerant

1шт.

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

7

242724A1

HOSE

2600 mm (102-3/8 inch) long, straight hose end, compressor to condenser, Includes: Refs. 8-11

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

9/16 ID x 1/16 inch wide, hose end, at compressor

1шт.

9

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

7/16 ID x 1/16 inch wide, hose end

1шт.

10

1250594C1

CORE

VALVE, hose, high side charge port

1шт.

11

122554A1

CAP

Sealing

1шт.

12

193913A1

PROTECTOR

SLEEVE hose guard, mounts to Ref. 7 hose at hood hinge bolt area

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, nylon, retaining

1шт.

14

246060A1

ASSEMBLY

CONDENSER coil, refrigerant cooler, uses existing oil cooler to radiator hardware

1шт.

15

138255A1

HOSE

550 mm (25-11/16 inch) long, condenser to receiver drier, Includes: Refs. 16-18

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose ends

2шт.

17

1250594C1

CORE

VALVE, for high pressure switch

1шт.

18

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose

1шт.

19

232948A1

SWITCH, A/C HIGH PRE

400 psi

1шт.

20

1990758C2

RECEIVER-DRYER

air conditioning, refrigerant

1шт.

21

253404A1

HALF-COLLAR

HALF COLLAR CLAMP receiver drier

1шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

23

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

24

305821A1

HOSE

3215 mm (126-9/16 inch) long, receiver drier to cab base, Includes: Ref. 25

1шт.

25

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16 inch wide, hose ends

2шт.

26

191703A1

HOSE PROTECTION,28mm ID x 34mm OD x 400mm L

SLEEVE hose guard, 400 mm (15-3/4 inch) long, suction hose, compressor to cab base

2шт.

27

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

SLEEVE hose guard, 460 mm (18-1/8 inch) long, receiver-drier to cab base hose

2шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full thd

1шт.
