Запчасти Case 580SL (9-132) - CAB HEADLINER, LOUVERS AND DOME LAMP (09) - CHASSIS/ATTACHMENTS

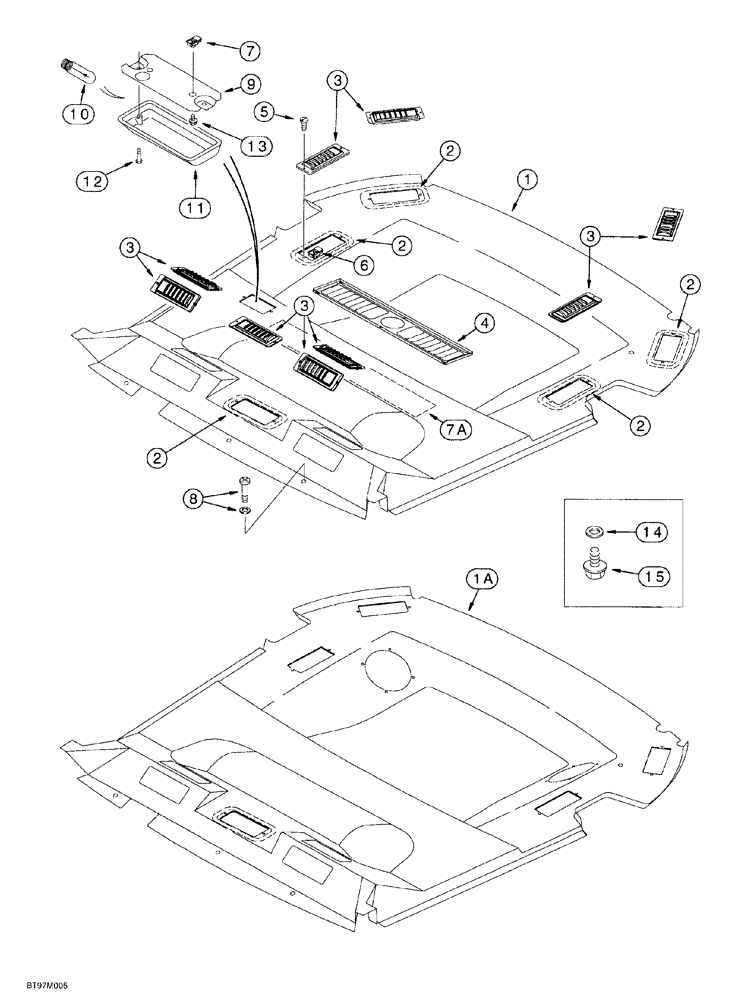

Схема запчастей Case 580SL - (9-132) - CAB HEADLINER, LOUVERS AND DOME LAMP (09) - CHASSIS/ATTACHMENTS
2
13
11
9
12
14
3
4
7a
5
8
1a
10
1
2
3
3
2
15
3
2
22
6
7

Артикул

Название

Примечание

Количество

137135A1

ROOF

HEADLINER ASSEMBLY, cab

1шт.

300157A1

ROOF LINING

HEADLINER ASSEMBLY, cab, models with speakers and radio, Includes: Refs. 1-7A

1шт.

Part of radio ready package P/N 292654A1

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER cab, without speakers and radio

1шт.

1a

NSS

NOT SOLD SEPARAT

HEADLINER cab, models with speakers and radio

1шт.

2

131973A1

SEAL

duct

5шт.

3

125688A1

DIFFUSER

LOUVER headliner, heat and air

9шт.

4

1331102C2

DIFFUSER

LOUVER air recirculation, Includes: Ref. 4A

1шт.

4a

NSS

NOT SOLD SEPARAT

KNOB louver, not shown

1шт.

5

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

24шт.

6

125749A1

SPRING NUT

U-type, No. 6 NC

24шт.

7

131-861

SPRING NUT,Tinn, U, #10-24

No threads, Dome lamp retaining

2шт.

7a

186797A1

SEALING STRIP

adhesive backed, 19 x 75 x 550 mm, P/N 137135A1 headliner only

1шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

self tapping, special, No. 10-16 x 3/4 inch, with washer, headliner to cab frame, used in production, order P/N F64315 washer and P/N 265-16512 screw for service

5шт.

Part of radio ready package P/N 292654A1

1шт.

R53755

LIGHT ASSY.,12V

LAMP, dome, 12 volt, see Fig. 4-16 for switch, Includes: Refs. 9-11

1шт.

9

NSS

NOT SOLD SEPARAT

BASE dome lamp

1шт.

10

N14466

BULB

dome lamp

1шт.

11

N14465

LENS

dome lamp

1шт.

12

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

Base to lens

2шт.

13

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

self tapping, hex washer head, No. 10 NC x 3/4 inch, lamp to headliner, part of radio ready package P/N 292654A1

2шт.

Part of radio ready package P/N 292654A1

1шт.

14

194858A1

CUP WASHER

flat, special

2шт.

Part of radio ready package P/N 292654A1

1шт.

15

D134923

CAP

bolt, rear headliner

2шт.

Part of radio ready package P/N 292654A1

1шт.

292654A1

RADIO

PACKAGE radio ready, order from Machinery Price List, Includes: Refs. 8, 13, 14, 15 and P/N 300157A1, plus see parts on Fig. 4-24 and 4-44, no longer available, order components

1шт.

Выбрано товаров: 27
