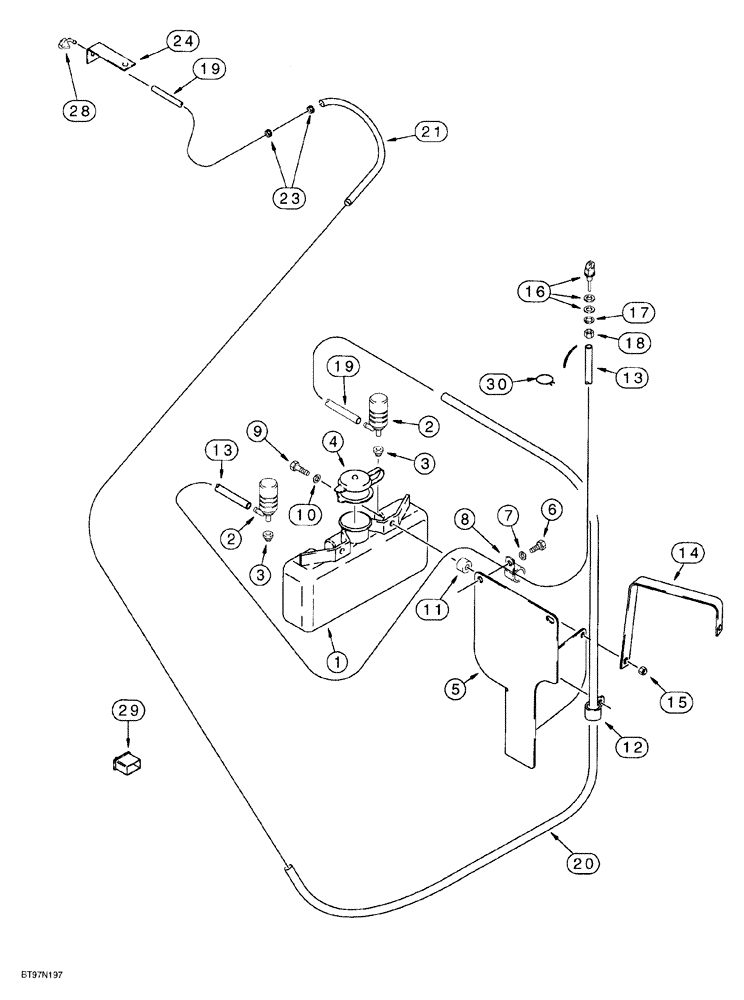

Запчасти Case 580SL (9-126) - WINDSHIELD WASHERS, FRONT AND REAR (09) - CHASSIS/ATTACHMENTS

E46560

RESERVOIR

windshield washer, Includes: Refs. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR windshield washer

1шт.

2

E47238

PUMP,12V

windshield washer

2шт.

3

E47239

SEAL,6.5mm ID x 12mm OD x 10mm L

GASKET mounting

2шт.

4

E47240

PLUG

CAP reservoir

1шт.

5

367073A1

BRACKET

reservoir mounting, mountings to firewall, replaces P/N 226376A1

1шт.

6

806-8040

BOLT,Hex, M8 x 40mm, Cl 10.9

hex, self locking, 10 - 1.5 x 40 mm, class 10.9

2шт.

8

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type

1шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

11

E46561

SPACER

plastic

2шт.

12

D147383

CLIP,5/8" J

CLAMP J-type, 5/8 inch diameter

1шт.

13

292408A1

HOSE

850 mm (33-1/2 inch) long, front washer, fixed hood to reservoir pump closest to the firewall

1шт.

14

367957A1

STRIP

BRACKET support, uses existing air cleaner mounting hardware, replaces P/N 295597A1

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

16

284154A1

NOZZLE,3/8" - 16

washer, front, includes steel and rubber washer which are not serviced separately

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

226584A1

HOSE,4mm ID x 5020mm L

HOSE, 5020 mm (197-11/16 inch) long, rear washer, mounts to reservoir pump located the furthest away from the firewall

1шт.

20

226582A1

HOSE PROTECTION

SLEEVE hose, 1850 mm (72-7/8 inch), lower hose

1шт.

21

226580A1

PROTECTOR

SLEEVE hose, 520 mm (20-1/2 inch), upper hose

1шт.

23

E46524

GROMMET

rubber, 8 (5/16) ID x 23 mm (29/32 inch) O.D.

2шт.

24

305818A1

SUPPORT

BRACKET rear nozzle mounting, uses existing lamp mounting hardware

1шт.

28

E43769

SPRAY

NOZZLE washer, rear, includes rubber gasket which is not serviced separately

1шт.

29

144900A1

WINDSHIELD WASHER SW

rocker, windshield washer, front and rear, mounts in cab control panel

1шт.

30

305578A1

CLAMP,7.65mm - 8.76mm

hose

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
