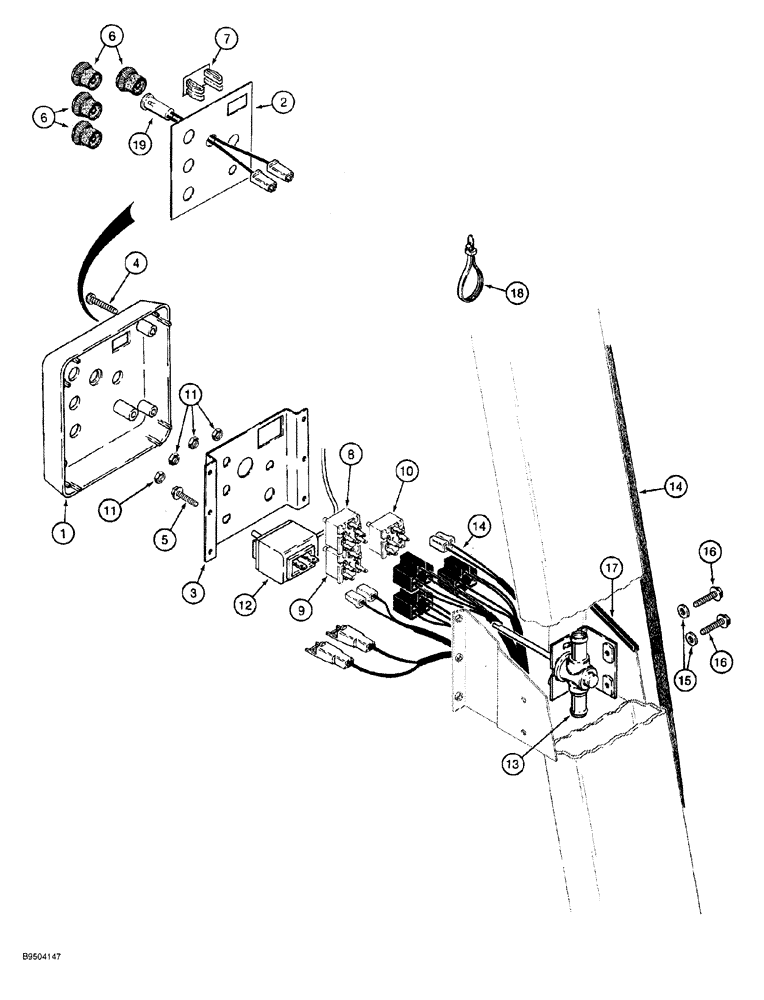

Запчасти Case 580SL (9-124) - CAB CONTROL PANEL AND WIRING (09) - CHASSIS/ATTACHMENTS

1

135185A1

PANEL

cab control, includes decal, mounts on right hand ROPS post, Includes: Ref. 2

1шт.

2

135183A1

DECAL

instrument symbols, wipers and environmental control, Ref. 3 shown on Fig. 9-154

1шт.

3

136036A1

SUPPORT

BRACKET switch

1шт.

4

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Self tapping

4шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

self tapping, hex washer head, No. 10 NC x 3/4 inch

2шт.

6

111282C1

KNOB

KNOB control, switch, front and rear wiper, heater, blower, and air conditioner

4-5шт.

7

86000535

PLUG,1.427" x .62", Plastic

Cab accessory, See Fig. 9-126 for windshield washer switch

1шт.

8

245258A1

ROTARY SWITCH

blower

1шт.

9

R52440

SWITCH

rear wiper

1шт.

245706C1

ELEC CONNECTOR

PLUG plastic, rear wiper, blower, windshield wiper, if used, not shown

3шт.

10

R52415

ROTARY SWITCH

front wiper

1шт.

11

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining, 7/16 inch NC, switch

4шт.

12

1340287C1

SWITCH

temperature control, air conditioning

1шт.

13

R52483

VALVE

temperature control, heater

1шт.

14

REF

INSTRUCTION

HARNESS cab, main, see Fig. 4-30 for cab harness

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

16

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

Mounts heater temperature control valve to ROPS post

2шт.

17

D36179

LINING

TRIM edge, 108 mm (4-1/2 inch) long, cut from P/N F42827 bulk trim, control panel bracket, see below

1шт.

18

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

4шт.

19

1964672C1

LIGHT

indicator, amber, 14 volt, air conditioning

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.
