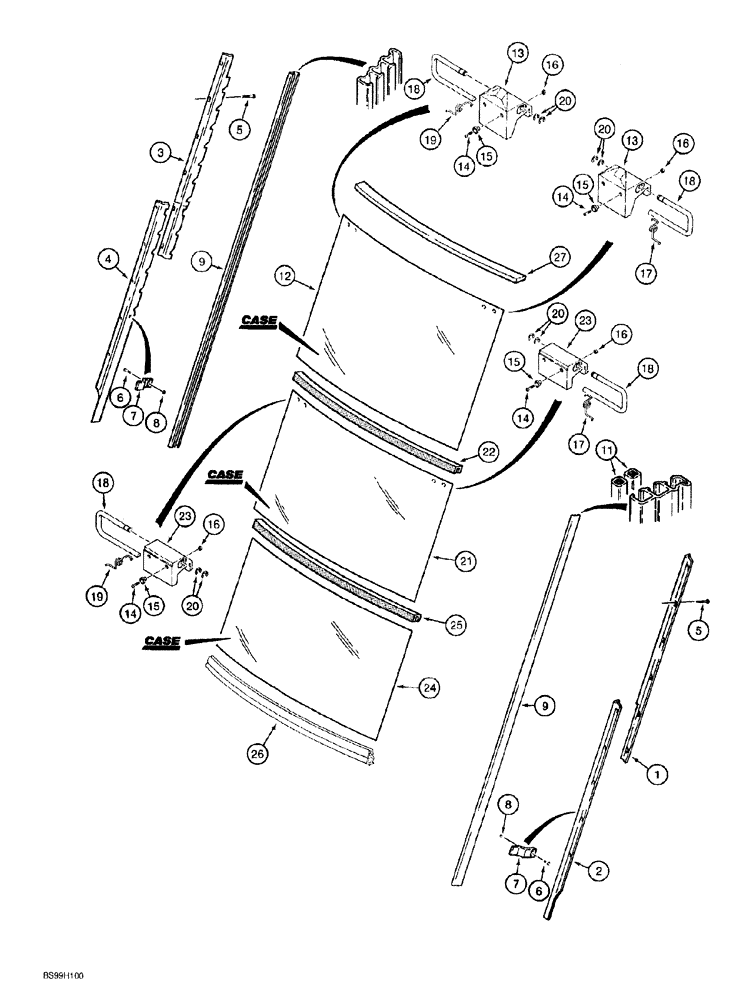

Запчасти Case 580SL (9-122) - CAB REAR WINDOW (09) - CHASSIS/ATTACHMENTS

1

97256C3

SUPPORT

BRACKET right hand, upper

1шт.

2

97257C3

SUPPORT

BRACKET right hand, lower

1шт.

3

97258C3

RETAINER

BRACKET left hand, upper

1шт.

4

97259C3

SUPPORT

BRACKET left hand, lower

1шт.

5

281-54512

SCREW,Hex Wshr Hd, #10 - 24 x 3/4"

self tapping, hex washer head, No. 10 NC x 3/4 inch

18шт.

6

458-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7

D129974

BRACKET

window, lower rear

2шт.

8

231-5344

FLANGE NUT,Flg, 1/4"-20

2шт.

9

1989960C1

SLIPPER

CHANNEL track

2шт.

11

179355A1

SEALING STRIP,9.53mm W x 1536mm L x 6.35mm Thk

foam, adhesive backed, 1536 mm (60-15/32 inch) long, special, track channel both sides

4шт.

12

D129967

GLASS

upper rear window

1шт.

13

97278C1

LATCH

upper rear window only

2шт.

14

442-11016

SCREW,Cross Oval Hd, #10-24 x 1"

machine, oval Phillips, No. 10 NC x 1 inch

8шт.

15

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon, black, special

8шт.

16

230-42409

NUT,#10-24, GA

hex, self locking, No. 10 NC

8шт.

17

1990727C1

SPRING

right hand latch

2шт.

18

1344232C1

LEVER

latch, metal, left hand and right hand

4шт.

19

1990728C1

SPRING

left hand latch

2шт.

20

100-3337

SNAP RING,E-Type, 0.3" OD

Latch lever

8шт.

21

D129968

GLASS

center rear window

1шт.

22

D126198

SEAL,894mm L

912 mm (35-29/32 inch) long, center window glass

1шт.

23

97277C1

LATCH

window, center window

2шт.

24

D129969

GLASS

lower rear window

1шт.

25

D126198

SEAL,894mm L

912 mm (35-29/32 inch) long, lower window glass

1шт.

26

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm (35-7/16 inch) long, lower rear glass

1шт.

27

106974A1

SEAL,912mm L

foam, adhesive backed, 20 x 10 x 912 mm, upper rear glass

1шт.
