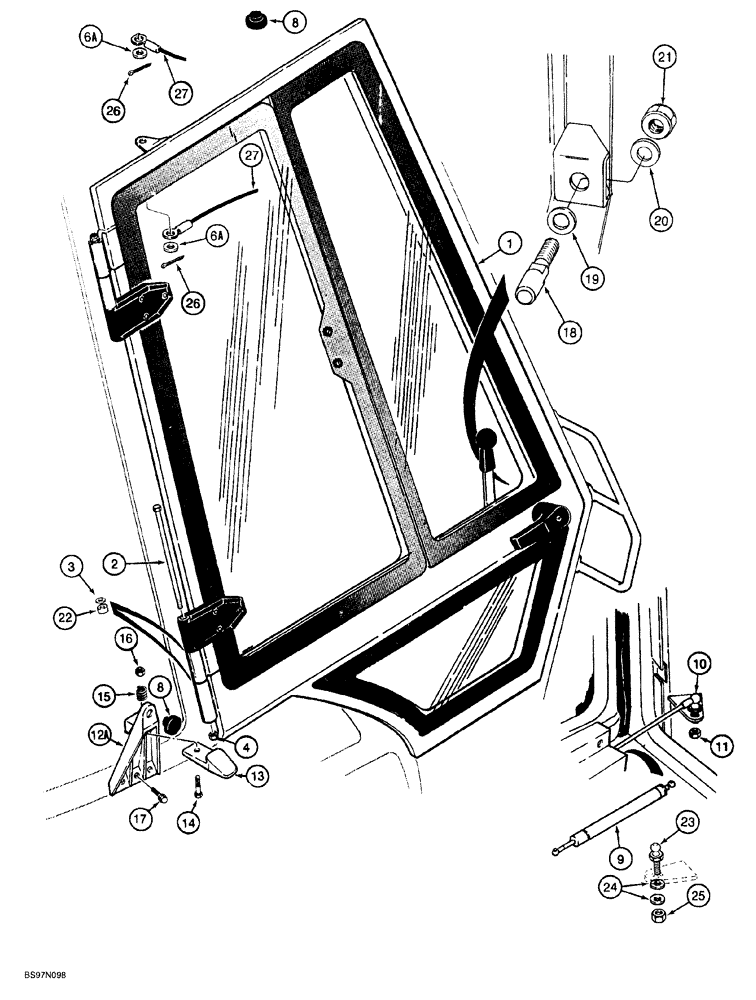

Запчасти Case 580SL (9-120) - LEFT HAND AND RIGHT HAND CAB DOOR MOUNTING (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR cab, see Fig. 9-116 through 9-120

1шт.

2

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

BOLT hex, 3/8 NC x 9-1/2 inch

4шт.

3

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

thrust, plastic

8шт.

4

131-203

LOCK NUT,3/8"-16, GB, LH

light hex, self locking, 3/8 inch NC

4шт.

6a

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

4шт.

8

L60224

BUMPER

BUMPER rubber, cab door frame and window latch

4шт.

9

F44881

CYLINDER ASSY.

door, left hand and right hand

2шт.

10

1340345C1

BALL STUD

BALL PIN STUD, cylinder, right hand door

1шт.

11

230-4215

NUT,5/16"-18, GA

2шт.

12

230590A1

SUPPORT

BRACKET left hand cab door window retaining, mounts to frame, black, not shown

1шт.

12a

230589A1

SUPPORT

BRACKET right hand cab door window retaining, mounts to frame, black

1шт.

13

230588A1

LATCH

door window to cab frame

2шт.

15

D36669

SPRING

compression, left-hand and right-hand window latch release

2шт.

16

230-4214

LOCK NUT,1/4"-20, GA

2шт.

17

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

Bracket to frame

6шт.

18

R52735

LATCH

STRIKER door latch

2шт.

19

F44748

SPRING WASHER

Belleville, washer

2шт.

20

495-81148

WASHER,7/16" x 1 1/4" x .134"

flat, 7/16 x 1-1/4 x 1/8 inch

2шт.

21

230-4217

LOCK NUT,7/16"-14, GA

hex, self locking, 7/16 inch NC

2шт.

22

107949A1

BUSHING

door hinge

8шт.

23

139362A1

BALL JOINT

STUD upper, 10 mm - 1.5, cylinder, left hand door

1шт.

24

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

flat, 13/32 x 1-1/4 x 3/32 inch

2шт.

25

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

26

136-155

COTTER PIN,Int, 7/64" x .051"

hair, 7/64 x 3/4 inch, mounts to clevis pin welded to frame

4шт.

27

225059A1

CABLE,280mm L

door, upper

2шт.

228689A1

PIN

PIN clevis, welded to cab frame, not shown

4шт.

14

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Latch to bracket

2шт.
