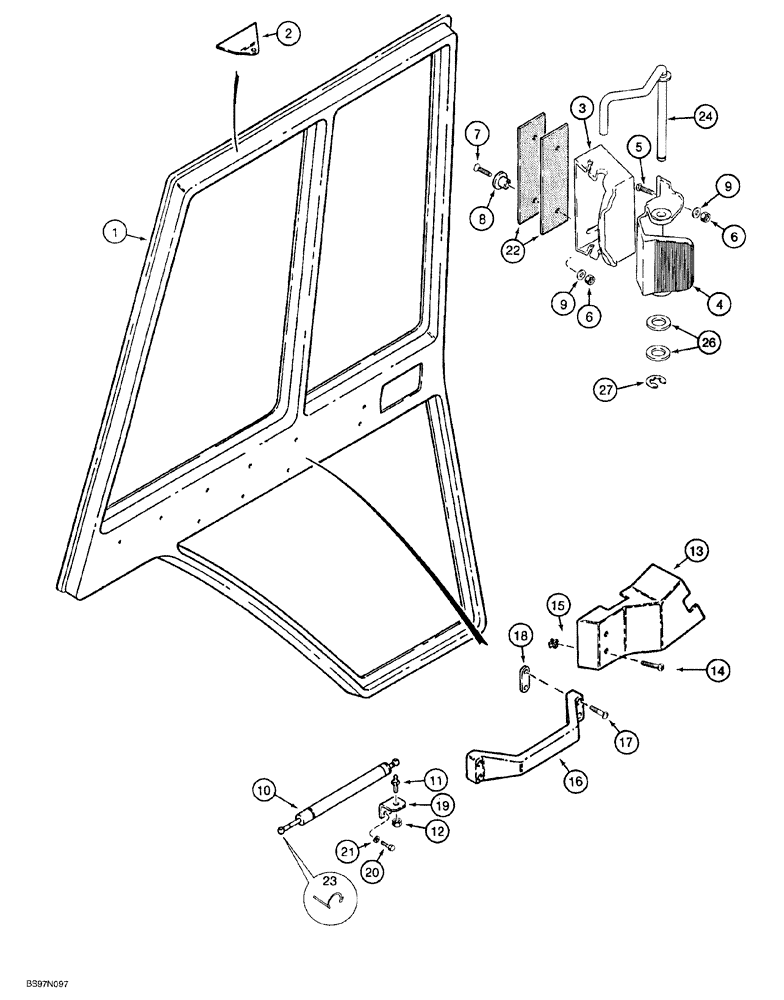

Запчасти Case 580SL (9-118) - LEFT HAND AND RIGHT HAND CAB DOORS, INTERIOR (09) - CHASSIS/ATTACHMENTS

1

137868A3

DOOR ASSY.

FRAME left hand

1шт.

1a

137869A3

DOOR ASSY.

FRAME right hand door, not shown, Includes: Ref. 2

1шт.

2

R53562

BRACKET

cable, welded to left hand or right hand door frame

1шт.

3

281069A1

HANDLE

door window

2шт.

4

281068A1

HANDLE

LATCH push type, door window

2шт.

5

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

4шт.

6

F45165

SPECIAL NUT,#10-24

hex, self locking, special, No. 10 NC

8шт.

7

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

machine, oval Phillips, No. 10 NC x 3/4 inch

4шт.

8

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

Nylon, black, Serial Range: glass-bracket

4шт.

9

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

(1/4 x 9/16 x 3/64")

8шт.

10

F44881

CYLINDER ASSY.

door, left hand and right hand

2шт.

11

1340345C1

BALL STUD

BALL PIN STUD ball, cylinder

2шт.

12

230-4215

NUT,5/16"-18, GA

2шт.

13

108938A2

PANEL

left hand door

1шт.

13a

108936A2

PANEL

right hand door

1шт.

14

260-16524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

Black, LH and RH door panels

4шт.

15

R53000

GROMMET

RETAINER screw, left hand and right hand door panels

4шт.

16

1958970C1

HANDLE

left hand and right hand inner door

2шт.

17

165-129

HEX SOC SCREW,Self-Lkg, 1/4" - 20 x 3/4"

BOLT hex socket, self locking, 1/4 NC x 3/4 inch, black, left hand and right hand inner door handle

8шт.

18

1971368C1

PLATE ASSY.

retainer, left hand and right hand inner door handle

4шт.

19

1977399C1

SUPPORT ASSY.

BRACKET cylinder

2шт.

20

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

21

492-11025

LOCK WASHER,1/4"

4шт.

22

R54047

PAD,30mm OD x 0.76mm Thk

SHIM latch bracket, left hand and right hand door window

4шт.

23

F44883

CLIP,DIN 71805 - S10

RETAINER lock, clip

2шт.

24

291129A1

STEM

ROD window prop, hold open, left hand

1шт.

25

280336A1

STEM

ROD window prop, hold open, right hand, not shown

1шт.

26

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

27

100-3331

SNAP RING,#X31, .243" Dia, E-Type

2шт.
