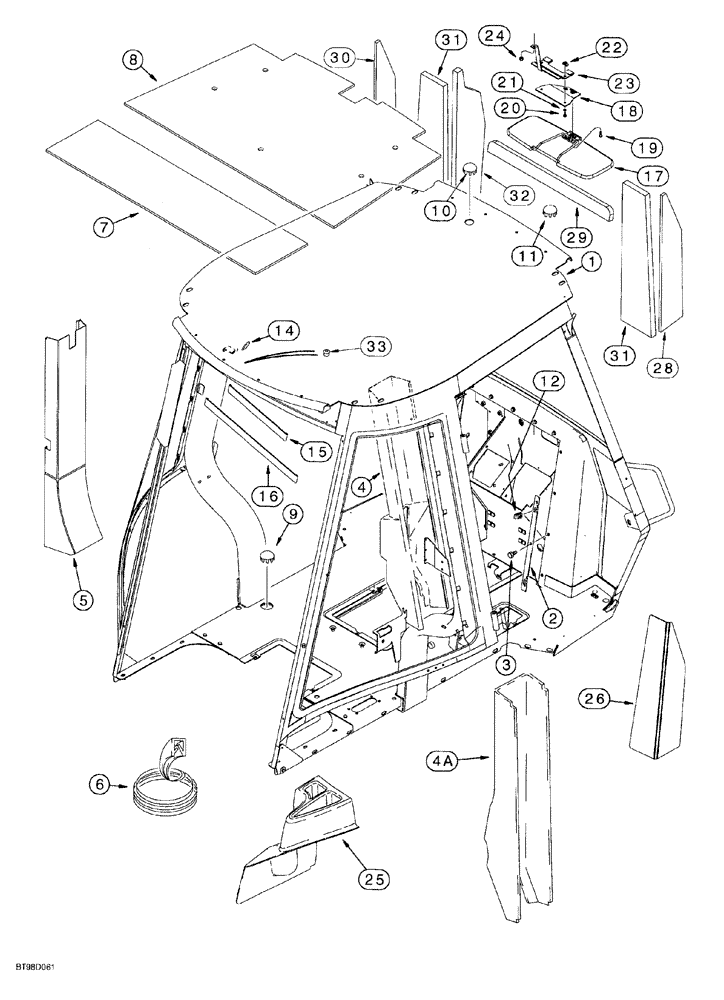

Запчасти Case 580SL (9-114) - CAB FRAME, COVERS AND INSULATION (09) - CHASSIS/ATTACHMENTS

1

281009A2

FRAME ASSY

ROPS cab, this frame is not serviced separately

1шт.

2

137851A1

PLATE

bar, front console mounting to firewall, also shown on Fig. 4-22, no longer included with frame, purchase separately

2шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

No longer included with frame, Purchase separately

13шт.

4

126371A1

COVER

plastic, right hand post

1шт.

4a

131977A2

PANEL

COVER gray vinyl, right hand post, optional deluxe interior

1шт.

5

291609A1

PANEL

COVER gray vinyl, left hand post, optional deluxe interior

1шт.

6

108963A1

LINING

SEAL trim, righthand post

2шт.

7

108797A1

PANEL

PAD insulation, rear, 200 x 813 x 6.4 mm, cut from P/N 108794A2 bulk pad

1шт.

8

127021A2

PANEL

PAD insulation, front cab roof

1шт.

9

205-129

HOLE PLUG BUTTON,2"

button, 2 inch ID, floor

2шт.

10

353-415

PLUG,Dome, 1.500" hole, Nylon

button, cab roof, models without radio antenna

1шт.

11

353-410

PLUG,Dome, .875" hole, Nylon

Windshield frame, Top, Models without Radio Antenna

1шт.

12

833-40406

NUT,M6, U

4шт.

14

294666A1

COVER

coat hook

1шт.

15

296367A1

STRAP

velcro

1шт.

16

282845A1

STRAP

velcro

1шт.

17

E47027

VISOR, SUN

shade

1шт.

18

227420A2

SUPPORT

BRACKET visor mounting

1шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

3шт.

20

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

21

892-11006

LOCK WASHER,M6

2шт.

22

833-40406

NUT,M6, U

2шт.

23

227178A2

SUPPORT

BRACKET visor support

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

25

292264A1

TRAY

tool, storage, mounts behind right hand console, optional deluxe interior

1шт.

833-40406

NUT,M6, U

2шт.

233724A1

FLANGE BOLT,Hex, M6 x 1 x 25mm

BOLT hex washer, self aligning, 6 - 1.0 x 25 mm

2шт.

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

26

299001A1

COVER

right hand lower front, optional deluxe interior

1шт.

27

300152A1

COVER

left hand lower front, optional deluxe interior, not shown

1шт.

28

303106A1

PANEL

SEAL noise reduction, insulation, right hand front firewall, if used

1шт.

29

297913A1

PANEL

SEAL noise reduction, insulation, front firewall

1шт.

30

303108A1

PANEL

SEAL noise reduction, insulation, left hand front firewall

1шт.

31

303105A1

PANEL

SEAL noise reduction, insulation, front firewall, if used

2шт.

32

303109A1

PANEL

SEAL noise reduction, insulation, firewall

1шт.

33

353-407

PLUG,Dome, .687" hole, Nylon

button,11/16 inch, rear filter plate on models without windshield washer

1шт.

108794A2

ISOLATOR

PAD bulk, 577 x 813 x 6.4 mm, insulation

1шт.
