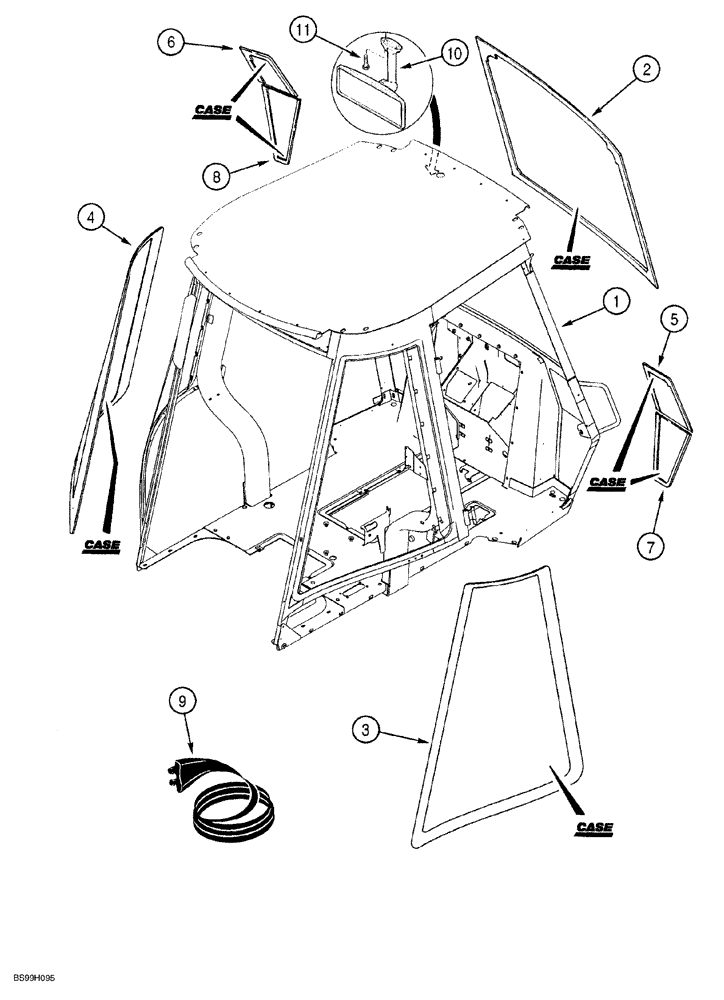

Запчасти Case 580SL (9-112) - ROPS CAB AND GLASS (09) - CHASSIS/ATTACHMENTS

1

280995A2

CAB

ASSEMBLY, POPS, operators, complete with heat, order from Machinery Price List, parts list Figs. 9-112 through 9-144

1шт.

1

280996A2

CAB

ASSEMBLY, ROPS, operators, complete with heat and air conditioning, order from Machinery Price List, parts list Figs. 9-112 through 9-144

1шт.

2

97290C1

GLASS

front windshield, use 3M Superfast Urethane Auto Glass Sealer

1шт.

3

D126204

GLASS

right hand rear quarter panel window

1шт.

4

D126205

GLASS

left hand rear quarter panel window

1шт.

5

107230A1

GLASS

knee, upper, right hand

1шт.

6

107233A1

GLASS

knee, upper, left hand

1шт.

7

107232A1

GLASS

knee, lower, right hand

1шт.

8

107234A1

GLASS

knee, lower, left hand

1шт.

9

108513A1

SEAL, GLASS,290mm L

290 mm (11-7/16 inch) long, front knee glass

2шт.

10

143369A2

MIRROR ASSY.

rear view, interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Self tapping

2шт.
