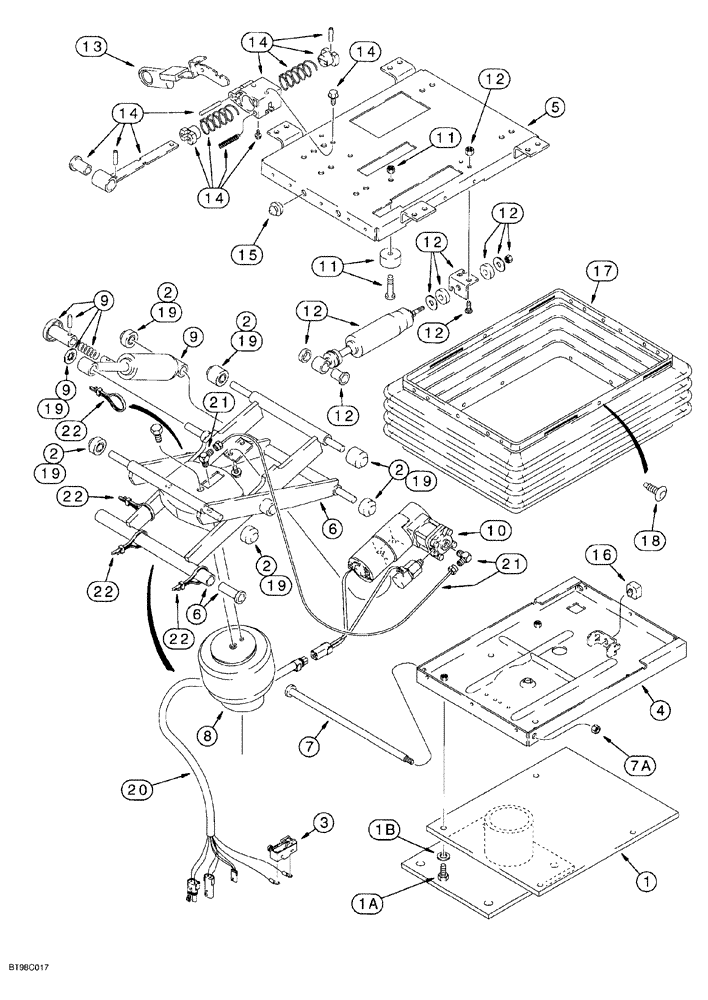

Запчасти Case 580SL (9-111E) - DELUXE AIR SUSPENSION SEAT - SUSPENSION ASSEMBLY AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

275547A1

SEAT ASSY.

air suspension, cloth, deluxe, complete with armrests, continued from previous Fig., Includes: Refs. 1-22

1шт.

1

300669A1

PEDESTAL

weldment, base

1шт.

1a

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

1b

NSS

NOT SOLD SEPARAT

WASHER flat, rear, tether

2шт.

300685A1

KIT

air suspension assembly, includes parts from upper housing plate to lower housing plate, Includes: Ref. 2-22 except for the boot and pedestal, Ref. 1 and 17

1шт.

2

135512A3

PACKAGE

KIT roller bearing, isolator, includes (4) narrow rollers, (2) wide rollers, (1) bushing, (1) spacer and (1) retaining ring, isolater

1шт.

3

D137363

SWITCH

contact, swivel limit

1шт.

4

226560A1

HOUSING

lower, with upper stop bracket

1шт.

5

300688A1

HOUSING

upper

1шт.

6

132862A1

DIPPER

ARM suspension

1шт.

7

143786A1

SHAFT,308.9mm L

bearing

1шт.

7a

230-4216

LOCK NUT,3/8"-16, GA

1шт.

8

197793A1

SPRING

KIT air , includes air spring, J-clip and (3) tie straps

1шт.

9

132866A1

SHOCK ABSORBER

KIT, includes shock, (2) bearings, fastener, actuator arm, roll pin, bracket and retaining ring

1шт.

132864A1

KIT

KITvalve, includes compressor, valve, mount, air line tubing, (2) screws, (2) sleeves and (2) nuts, Includes: Refs. 10 & compressor mount

1шт.

10

300689A1

KIT

compressor and valve

1шт.

300690A1

MOUNTING PARTS

compressor

1шт.

11

180593A1

KIT

KIT bumper, includes nut and screw

1шт.

231-1444

NUT,1/4"-20, GB

2шт.

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

12

300691A1

SPARE PART SET

KIT fore/aft isolator latch, includes shock absorber, (3) nuts, (2) washers, (2) grommets, (1) bearing and (15) Christmas tree clips

1шт.

13

1981850C1

GRIP

KNOB isolator control, fore/aft

1шт.

14

300692A1

SPARE PART SET

KIT fore/aft isolator latch, includes latch assembly and (2) screws

1шт.

15

133422A1

BUMPER

BUMPER rubber

2шт.

16

A45054

BUMPER,Neoprene

seat

1шт.

17

133421A1

PACKAGE

KIT boot, with pins

1шт.

18

132872A1

KIT

Boot pin, package of 23 retainers and 3 dome nuts

1шт.

19

180594A3

KIT

KIT rollers and bearings, includes (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers, includes nut

1шт.

131-425

PUSH-ON NUT,Push, 1/2"

1шт.

20

300896A1

HARNESS

wire, attaches to cab harness

1шт.

21

1990548C4

KIT

KIT air line and fittings, includes (2) elbows, (1) tee, (2) adapters, 3.5 feet nylon tubing, (5) tie straps and (1) J-clip, Includes: P/N L18337

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch

5шт.
