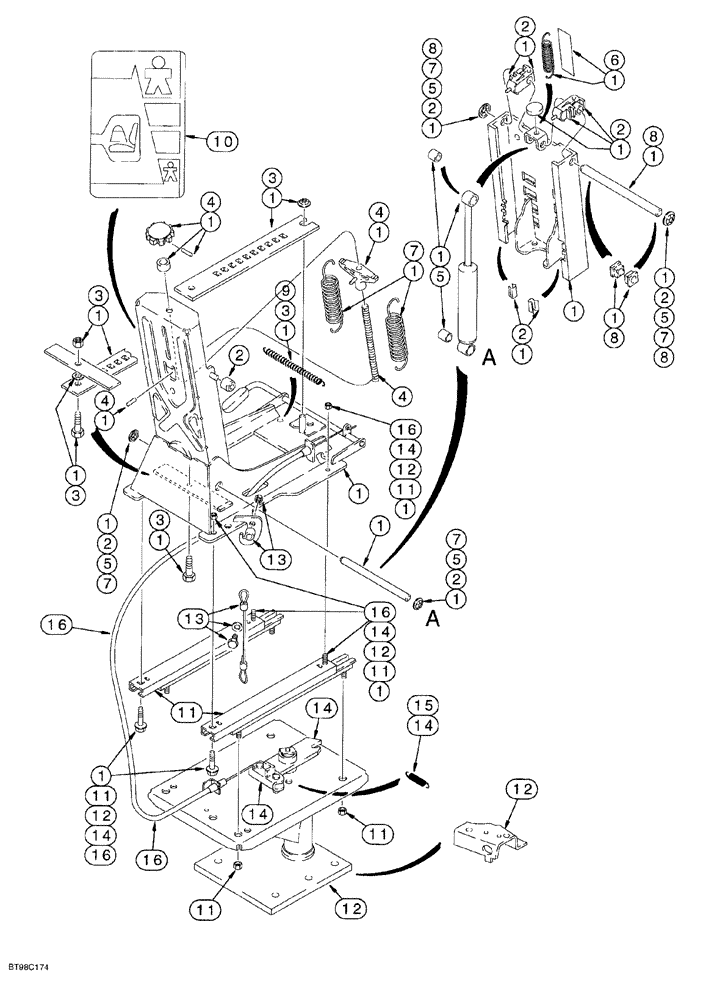

Запчасти Case 580SL (9-110) - SUSPENSION SEAT - PEDESTAL, WEIGHT ADJUSTER AND SUSPENSION (09) - CHASSIS/ATTACHMENTS

258313A1

SEAT

ASSEMBLY, suspension, gray cloth, without armrests, Includes: Ref. 1-16 ,includes seat, suspension, pedestal, and weight adjuster on Figs. 9-108 through 9-111A, individual component parts NSS, for service order respective component kits

1шт.

259071A1

SEAT ASSY.

ASSEMBLY, suspension, gray vinyl, without armrests, Includes: Ref. 1-16 ,includes seat, suspension, pedestal, and weight adjuster on Figs. 9-108 through 9-111A, individual component parts NSS, for service order respective component kits

1шт.

1

307092A1

KIT

suspension, includes suspension, back angle adjust, (2)groove pins(1)handle(8)screws(2)springs(3)washers(1)rivet(1)spacer(2)tie straps(8)Christmas tree clip(12)nuts(1)height adjust grip(1)back angle grip(1)rake grip,(1) fore-aft/swivel grip & (1) decal

1шт.

2

176921A1

KIT

plastic components, includes (2) rollers, (4) downstops, (2) roller guides, (2) bearings, (1) bumper, (4) nuts, (10) Christmas tree clips, (2) washers and (1) grip, also see additional kit parts on Fig. 9-108, Ref. 9

1шт.

3

116521A1

KIT

fore/aft, adjuster latch, includes (1) latch bar, (1) bolt, (1) spacer, (2) nuts, (1) spring and (2) tie straps

1шт.

131-435

PUSH-ON NUT,Push, 3/8"

1шт.

4

176916A1

KIT

weight adjusting, includes adjusting knob, (1) spacer, (2) roll pins, (1) shaft, (1) spring, (10) Christmas tree clips, (2) washers, (1) grip and (2) tie straps

1шт.

Also includes (10) shroud plastic retainers, (2) washers, and (2) tie straps shown on Fig. 9-108

1шт.

5

176914A1

KIT

suspension damper, includes damper, (2) spacers, (4) nuts, (10) Christmas tree clips, (2) washers, (1) grip and (2) tie straps

1шт.

Also includes (10) shroud plastic retainers, (2) washers, and (2) tie straps shown on Fig. 9-108

1шт.

6

116547A1

KIT

height adjusting spring, includes (10) shroud plastic retainers, (2) washers, (2) springs and (1) wear strip, see additional kit parts on Fig. 9-108, Ref. 10

1шт.

7

176920A1

KIT

main extension springs, suspension, includes (2) springs, (4) nuts, (2) washers, (10) Christmas tree clips, (2) washers, (1) grip and (2) tie straps

1шт.

Also includes (10) shroud plastic retainers, (2) washers, and (2) tie straps shown on Fig. 9-108

1шт.

8

116551A1

WHEEL BEARING KIT

upper suspension tower shaft, includes shaft, (2) bearings, (2) nuts, (10) Christmas tree clips, (1) grip and (2) tie straps

1шт.

9

116545A1

KIT

fore/aft latch spring, includes (1) spring and (2) tie straps

1шт.

10

116534A1

KIT

decal, seat weight adjustment, includes instructions, included in seat assembly

1шт.

11

116522A2

KIT

fore/aft adjuster slides, includes (2) slave adjusters, (4) screws, (8) nuts and (2) tie straps

1шт.

12

116538A2

KIT

pedestal, seat support, includes pedestal assembly, (4) screws, (4) nuts and 119211A1 switch mounting bracket

1шт.

13

116552A1

KIT

cable, includes (2) cables, (2) screws, (2) spacers, (2) washers and (2) nuts, includes hardware for both ends of cable

1шт.

14

116550A1

KIT

swivel latch bar, pedestal, includes (1) latch bar, (1) spring, (1) retaining ring, (4) screw

1шт.

14

336375A1

KIT

swivel latch plate, includes latch, swivel plate latch, (5) screws, (6) nuts and (2) pins

1шт.

15

116548A1

KIT

swivel latch, spring only

1шт.

16

181170A1

KIT

cable, fore-aft/swivel mechanism, includes (2) screws, (2) tie straps, cable and (4) nuts

1шт.
