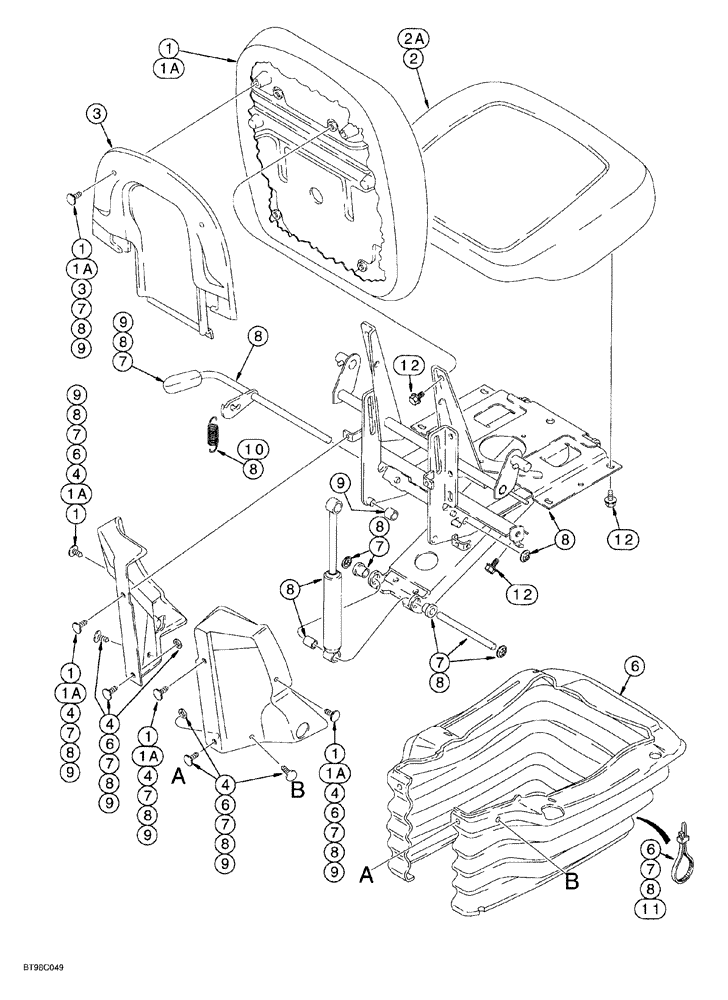

Запчасти Case 580SL (9-108) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

258313A1

SEAT

ASSEMBLY, suspension, gray cloth, without armrests, Includes: Ref. 1-11, includes seat, suspension, pedestal, and weight adjuster on Fig. 9-110, individual component parts not serviced separately, for service order respective component kits

1шт.

259071A1

SEAT ASSY.

suspension, gray vinyl, without armrests, Includes: 1-11, includes seat, suspension, pedestal, and weight adjuster on Fig. 9-110, individual component parts not serviced separately, for service order respective component kits

1шт.

1

307094A1

KIT

backrest cushion, gray cloth, includes lumbar knob, (6) Christmas tree clips and (4) screws

1шт.

1a

307095A1

KIT

backrest cushion, gray vinyl, includes lumbar knob, (6) Christmas tree clips and (4) screws

1шт.

2

307096A1

KIT

seat cushion, gray cloth, includes (6) screws

1шт.

2a

307097A1

KIT

seat cushion, gray vinyl, includes (6) screws

1шт.

3

307091A1

ASSEMBLY

KIT backrest shroud, includes (2) Christmas tree clips

1шт.

4

307090A1

KIT

side shroud, left hand and right hand, includes (6) Christmas tree clips, (2) washers, (1) height adjustment grip and (1) back angle grip

1шт.

6

307098A1

KIT

boot, rubber, includes (2) ties, (2) washers and (4) Christmas tree clips

1шт.

7

176919A1

KIT

swing arm pivot shaft, includes (2) flanged bearings, (4) push nuts, (10) Christmas tree clips, (2) washers, (1) grip and (2) tie straps

1шт.

8

307092A1

KIT

suspension, includes suspension, back angle adjust, (2)groove pins(1)handle(8)screws(2)springs(3)washers(1)rivet(1)spacer(2)tie straps(8)X-mas tree clip (12) nuts (1)height adjust grip(1)back angle grip(1)rake grip,(1) fore-aft/swivel grip & (1) decal

1шт.

9

176921A1

KIT

plastic components, includes (2) rollers, (4) downstops, (2) roller guides, (2) bearings, (1) bumper, (4) nuts, (10) Christmas tree clips, (2) washers and (1) grip, also see additional kit parts on Fig. 9-110, Ref. 2

1шт.

10

116547A1

KIT

height adjusting spring, includes (10) shroud plastic retainers, (2) washers, (2) springs and (1) wear strip, see additional kit parts on Fig. 9-110, Ref. 6

1шт.

11

181170A1

KIT

cable, fore-aft/swivel mechanism, includes (2) screws, (2) tie straps, cable and (4) nuts

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT, 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
