(9-106) - STANDARD SEAT SUPPORT AND PEDESTAL

Запчасти Case 580SL (9-106) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

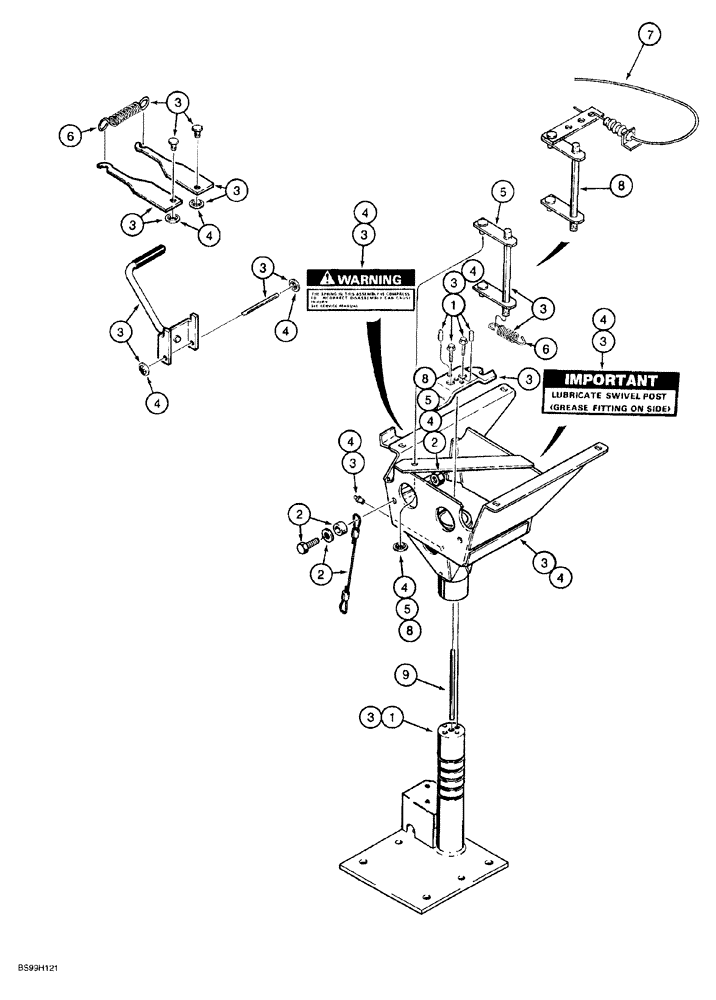

Схема запчастей Case 580SL - (9-106) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS
4
2
6
5
3
3
4
4
8
4
4
8
1
5
1
3
4
6
5
2
2
3
3
3
4
8
3
3
3
4
9
3
4
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

185156A1

SEAT

ASSEMBLY, standard, gray vinyl, Includes: Ref. 1-9, includes seat on Fig. 9-104 and support and pedestal below, individual component parts not serviced separately, for service order respective kits

1шт.

1

116761A2

KIT

support, base

1шт.

Also includes (4) lock nuts for seat adjuster slide on Fig. 9-104

1шт.

2

116763A1

KIT

cable, anchor, includes hardware for both ends of cable

1шт.

3

116764A2

KIT

pedestal, includes 219-16 grease fitting

1шт.

Also includes (4) lock nuts for seat adjuster slide on Fig. 9-104

1шт.

4

116766A2

KIT

pedestal box, includes 219-16 grease fitting

1шт.

Also includes (4) lock nuts for seat adjuster slide on Fig. 9-104

1шт.

5

116767A1

KIT

swivel latch, includes (6) lock nuts, (1) push nut and (1) swivel latch, if used

1шт.

Also includes (4) lock nuts for seat adjuster slide on Fig. 9-104

1шт.

6

119171A1

KIT

spring

1шт.

7

181169A1

KIT

cable, fore-aft/swivel mechanism, also includes (4) nuts on Fig. 9-104

1шт.

8

253209A1

KIT

swivel latch, includes (4) lock nuts, (1) rivet, (1) spacer, (1) washer, (1) push nut and (1)

1шт.

9

NSS

NOT SOLD SEPARAT

PIN seat

1шт.
