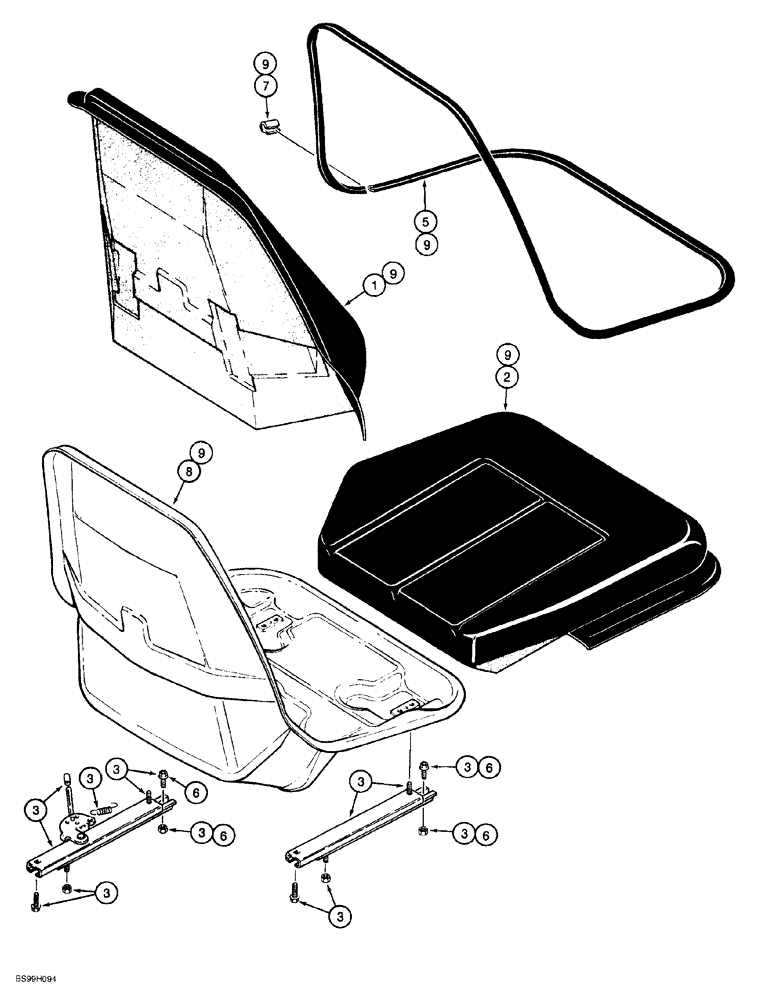

Запчасти Case 580SL (9-104) - STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY, standard, gray vinyl, Includes: Ref. 1-6, not serviced as a complete assembly, for service order respective component kits, see Fig. 9-106 for standard support and pedestal

1шт.

1

176926A1

KIT

backrest cushion, gray

1шт.

2

176925A1

KIT

seat cushion, gray

1шт.

3

116760A1

KIT

adjuster, seat slide, fore/aft

1шт.

5

176924A1

SET OF PARTS

TRIM edging, gray, Serial Range: cushion-shell

1шт.

6

181169A1

KIT

cable, fore-aft/swivel mechanism, also includes cable on Fig. 9-106

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP retainer, order N7802 clip kit, see below

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL seat frame, order P/N 234223A1 shell, cushion and trim kit, Ref. 9

1шт.

9

234223A1

SEAT

KIT, shell, cushion and trim, includes Ref. 1, 2, 5 and 8

1шт.

N7802

CLIP

KIT, includes Ref. 7 clip above, plus 6 additional narrow clips

1шт.
