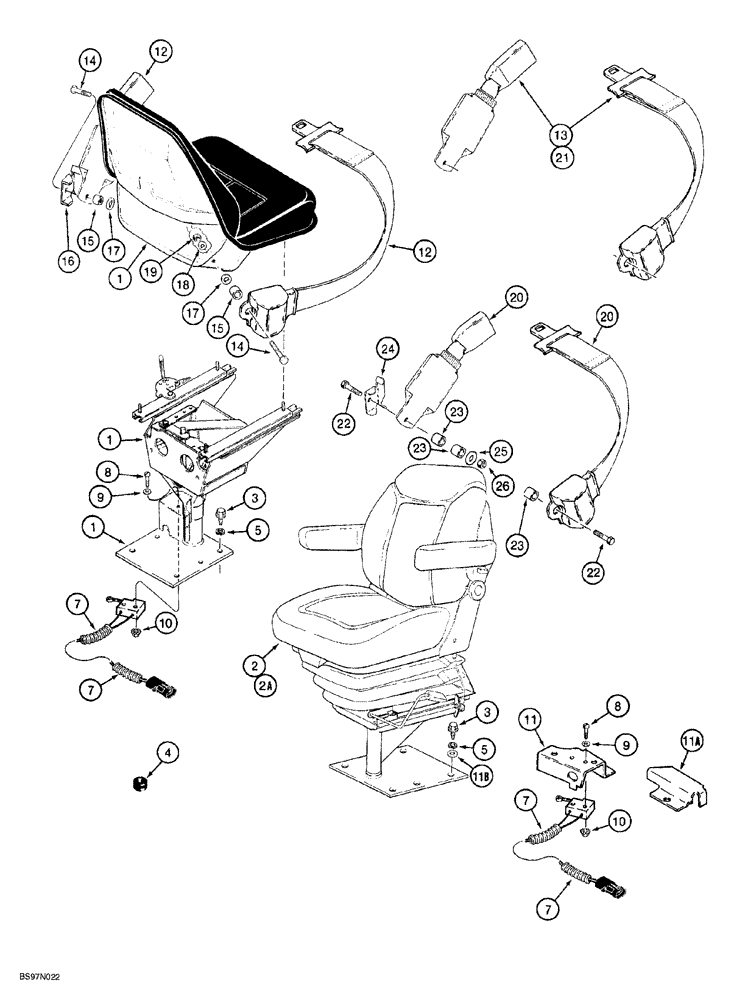

Запчасти Case 580SL (9-102) - SEATS AND MOUNTING PARTS (09) - CHASSIS/ATTACHMENTS

1

185156A1

SEAT

ASSEMBLY, standard, gray vinyl, without armrests, includes seat, pedestal, and support, see Fig. 9-104 for seat and Fig. 9-106 for support and pedestal

1шт.

275547A1

SEAT ASSY.

ASSEMBLY, air suspension, cloth, deluxe, complete, includes armrests, parts list Figs. 9-111C and 9-111D

1шт.

293021A1

SEAT

ASSEMBLY, suspension, gray cloth, complete, includes armrests and mounting hardware (Ref. 3-11 and 11B), without seat belts and hardware, Includes: Ref. 2, P/N 258313A1

1шт.

2

258313A1

SEAT

ASSEMBLY, suspension, gray cloth, includes seat, suspension and pedestal, without armrests, parts list Figs. 9-108 through 9-111A

1шт.

293022A1

SEAT

ASSEMBLY, suspension, gray vinyl, complete, includes armrests and mounting hardware (Ref. 3-11 and 11B), without seat belts, Includes: Ref. 2A and Left and Right Armrest

1шт.

2a

259071A1

SEAT ASSY.

ASSEMBLY, suspension, gray vinyl, includes seat, suspension and pedestal, without armrests, parts list Figs. 9-108 through 9-111A

1шт.

292262A1

ARMREST ASSY.

KIT left hand armrest, included in P/N's 293021A1 or 293022A1 complete seat assembly, component parts not serviced separately

1шт.

292263A1

ARMREST ASSY.

KIT right hand armrest, included in P/N's 293021A1 or 293022A1 complete seat assembly, component parts not serviced separately

1шт.

3

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

Standard or suspension seat

4шт.

3

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

Full threads, Deluxe air suspension seat

4шт.

4

L77821

GROMMET,1/2" ID x 1 1/4" Groove Dia, Str Cut

wire, standard or suspension seat

1шт.

5

892-11012

LOCK WASHER,M12

4шт.

7

118769A1

SWITCH

limit, with harness, attaches to side console harness

1шт.

8

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

2шт.

9

495-31016

WASHER,#6

2шт.

10

193-1003

NUT,Keps, w/LW,#6-32

hex, with external tooth lock washer, No. 6 NC

2шт.

11

119211A1

BRACKET

switch mounting, suspension seat only

1шт.

11a

186351A1

GUARD

BRACKET harness guard, seat swivel

1шт.

11b

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

At Switch Bracket Mounting

1шт.

REF

INSTRUCTION

SEAT BELT MOUNTING - STANDARD SEAT

1шт.

12

D150377

SAFETY BELT ,2.00" W

If used

1шт.

13

R58418

SAFETY BELT ,3.00" W

Retractable, If used

1шт.

14

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

15

D150391

SPACER

belt

2шт.

16

D150392

BRACKET

left hand belt, outer

1шт.

17

495-81169

WASHER,17/32" x 2 1/2" x .120"

flat, 17/32 x 2-1/2 x 3/64 inch, not used on deluxe air seat

2шт.

18

496-81010

WASHER

flat, 15/32 x 1 x 7/64 inch, hardened

4шт.

19

232-4617

LOCK NUT,7/16"-20, GC

2шт.

REF

INSTRUCTION

SEAT BELT MOUNTING - SUSPENSION SEAT

1шт.

20

D150377

SAFETY BELT ,2.00" W

If used

1шт.

Also used with the deluxe air suspension seat.

1шт.

21

R58418

SAFETY BELT ,3.00" W

Retractable, If used

1шт.

Also used with the deluxe air suspension seat.

1шт.

22

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

2шт.

Also used with the deluxe air suspension seat.

1шт.

23

D150391

SPACER

belt

2шт.

Also used with the deluxe air suspension seat.

1шт.

24

D150392

BRACKET

left hand belt, outer

1шт.

Also used with the deluxe air suspension seat.

1шт.

25

496-81010

WASHER

flat, 15/32 x 1 x 7/64 inch, hardened

2шт.

Also used with the deluxe air suspension seat.

1шт.

26

232-4617

LOCK NUT,7/16"-20, GC

2шт.

Also used with the deluxe air suspension seat.

1шт.
