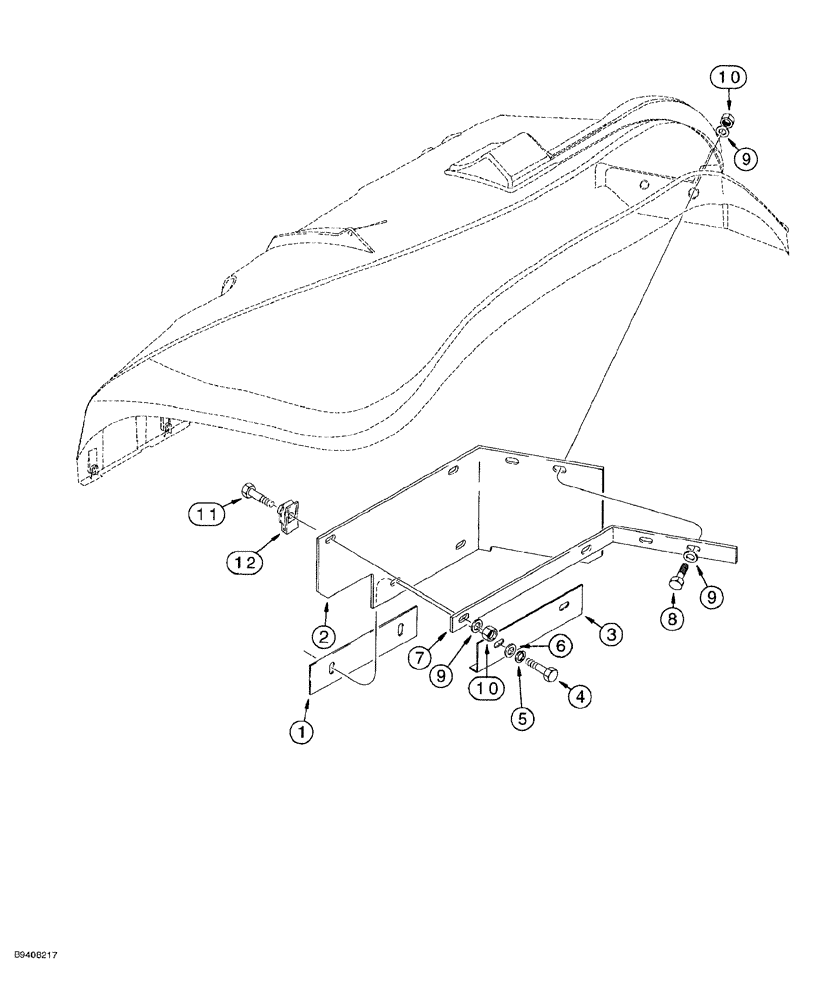

Запчасти Case 580SL (9-100) - MUD GUARD (09) - CHASSIS/ATTACHMENTS

1

137655A3

LARGE PLATE

PLATE, LARGE reinforcement

1шт.

2

182396A2

PROTECTOR

GUARD mud, mounts at right hand fender

1шт.

3

136279A2

LARGE PLATE

PLATE, LARGE ANGLE mud guard

1шт.

4

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

5

892-11010

LOCK WASHER,M10

2шт.

7

136280A1

LARGE PLATE

PLATE, LARGE ANGLE mud guard

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

6шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

11

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

2шт.

12

833-40408

NUT,M8, U

Fender to frame

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
