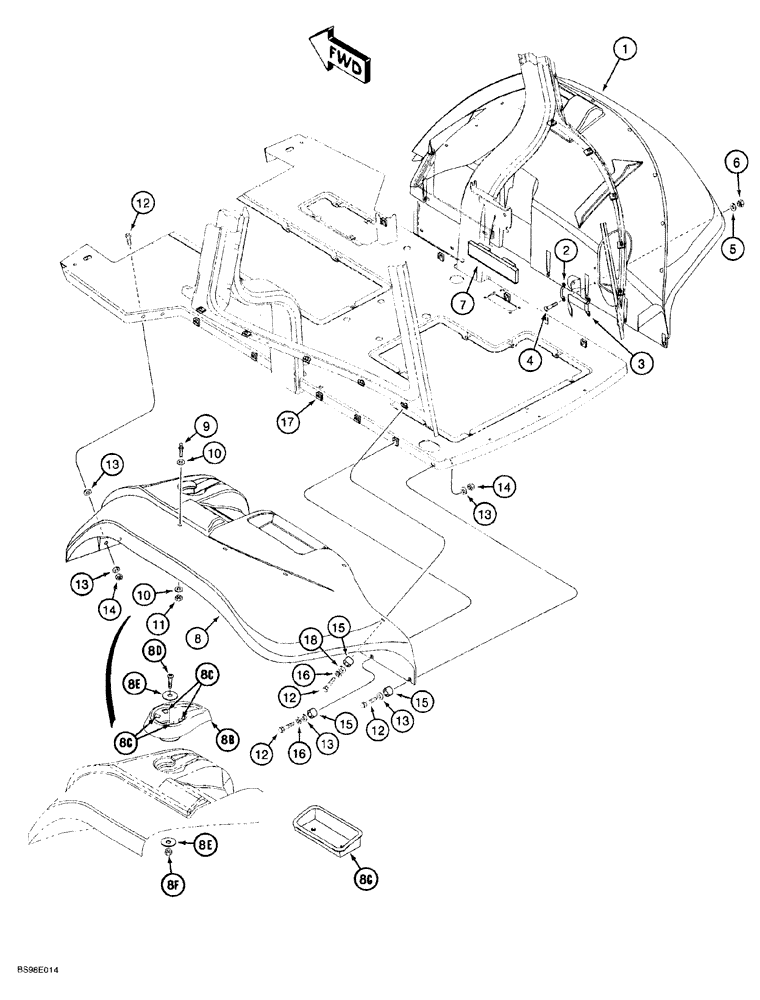

Запчасти Case 580SL (9-098) - REAR FENDERS (09) - CHASSIS/ATTACHMENTS

1

132134A1

FENDER

right hand, gray, for hardware mounting the front of the fender, see mud guard Fig. 9-100

1шт.

1a

181457A2

FENDER

PANEL, right hand upper, gray vinyl, optional deluxe interior, not shown, no longer used

1шт.

1b

131975A2

FENDER

PANEL, right hand lower, gray vinyl, optional deluxe interior, not shown

1шт.

2

182594A1

HANDLE

BRACKET velcro retainer

2шт.

3

184726A1

FIXING STRIP

velcro, right hand cab fender; Fire Extinguisher Retaining Strap

1шт.

4

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

4шт.

5

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

6

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

7

188482A1

SEALING STRIP

SEAL foam, ROPS, Serial Range: post-fender

2шт.

8

132133A1

FENDER

left-hand, gray

1шт.

345-187

SEALANT

SEALANT gray silicons, 10.3 ounce, between fenders and cab

1шт.

8a

304390A1

PANEL

fender, left hand, gray vinyl, optional deluxe interior, not shown

1шт.

8b

303022A1

INSERT

coffee cup holder, black plastic liner, optional deluxe interior, Includes: Ref.8C

1шт.

8c

304061A1

BUMPER,Rubber

rubber

4шт.

8d

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

1шт.

8e

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

flat, 13/64 x 3/4 x 1/16 inch

2шт.

8f

86625057

NUT,#10-24, GB

1шт.

8g

188411A2

TRAY

INSERT, tool, black plastic liner, optional deluxe interior, not shown, see Refs. 19 and 20 for screw and nut, Includes: Ref. 8C

1шт.

8h

192274A2

PROTECTOR

COVER left-hand fender at cab entrance, black plastic, optional deluxe interior, not shown, see Refs. 19 and 20 for screw and nut

1шт.

9

139362A1

BALL JOINT

STUD upper, 10 mm - 1.5, left hand fender

1шт.

10

495-81002

WASHER,3/8"

flat, 7/16 x 1-3/8 x 5/64 inch

2шт.

11

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

12

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

Full thd

22шт.

13

495-81001

WASHER,5/16"

flat, 3/8 x 1-1/8 x 1/16 inch

16шт.

14

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

15

144282A1

SPACER

16 x 10 mm long, fender support plate

22шт.

16

892-11008

LOCK WASHER,8mm ID

18шт.

17

833-40408

NUT,M8, U

20шт.

18

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

10шт.

19

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

Retains tool tray and fender cover at cab entrance, not shown

6шт.

20

86625057

NUT,#10-24, GB

Used with Ref. 19, Not Shown

6шт.
