Запчасти Case 580SL (9-094) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

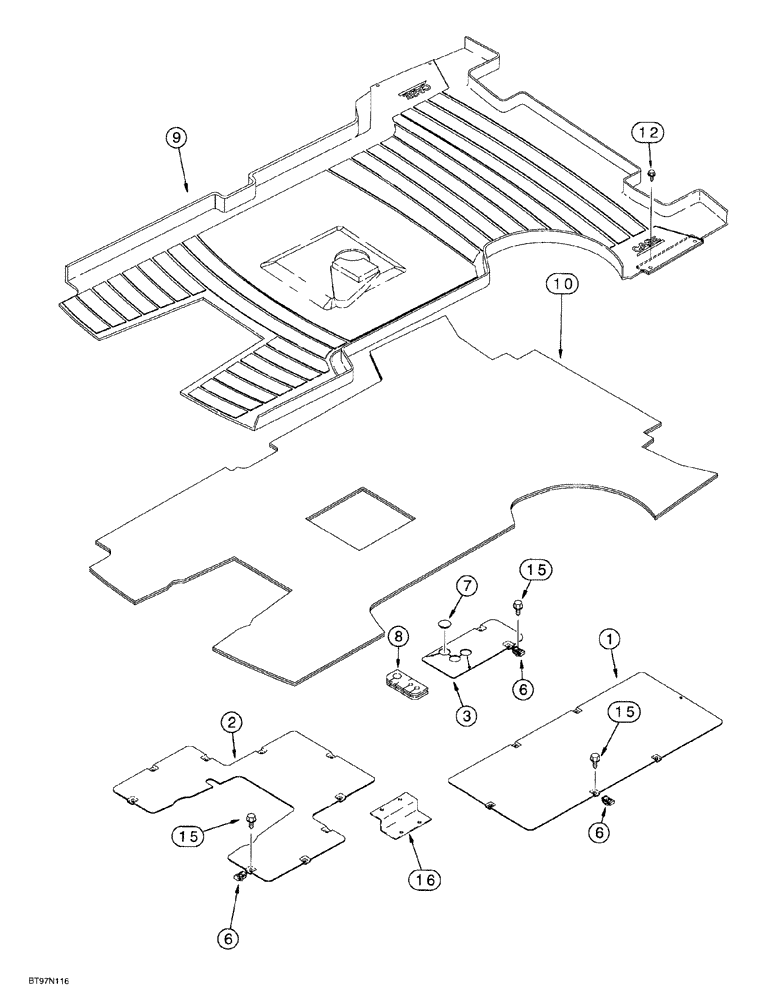

Схема запчастей Case 580SL - (9-094) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS
9
3
10
6
6
8
2
12
7
16
1
15
6
15
15

Артикул

Название

Примечание

Количество

1

234913A1

LARGE PLATE

PLATE, LARGE floor, front cover

1шт.

2

298449A1

LARGE PLATE

PLATE, LARGE floor, rear cover

1шт.

3

127377A1

LARGE PLATE

PLATE, LARGE floor, loader control lever mounting

1шт.

6

833-40406

NUT,M6, U

21шт.

7

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without clam bucket

1шт.

8

127378A3

RUBBER INSULATOR

GROMMET, floor

1шт.

9

243122A1

FLOOR MAT

cab models, waffle back

1шт.

10

182296A1

PAD

foam, floormat, if used

1шт.

12

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

self tapping, hex washer head, No. 10 - 16 x 1 inch

4шт.

15

233724A1

FLANGE BOLT,Hex, M6 x 1 x 25mm

BOLT hex washer, self aligning, 6 - 1.0 x 25 mm

19шт.

16

223199A1

SUPPORT

BRACKET mounting, heater hoses, if used

1шт.

Выбрано товаров: 11
