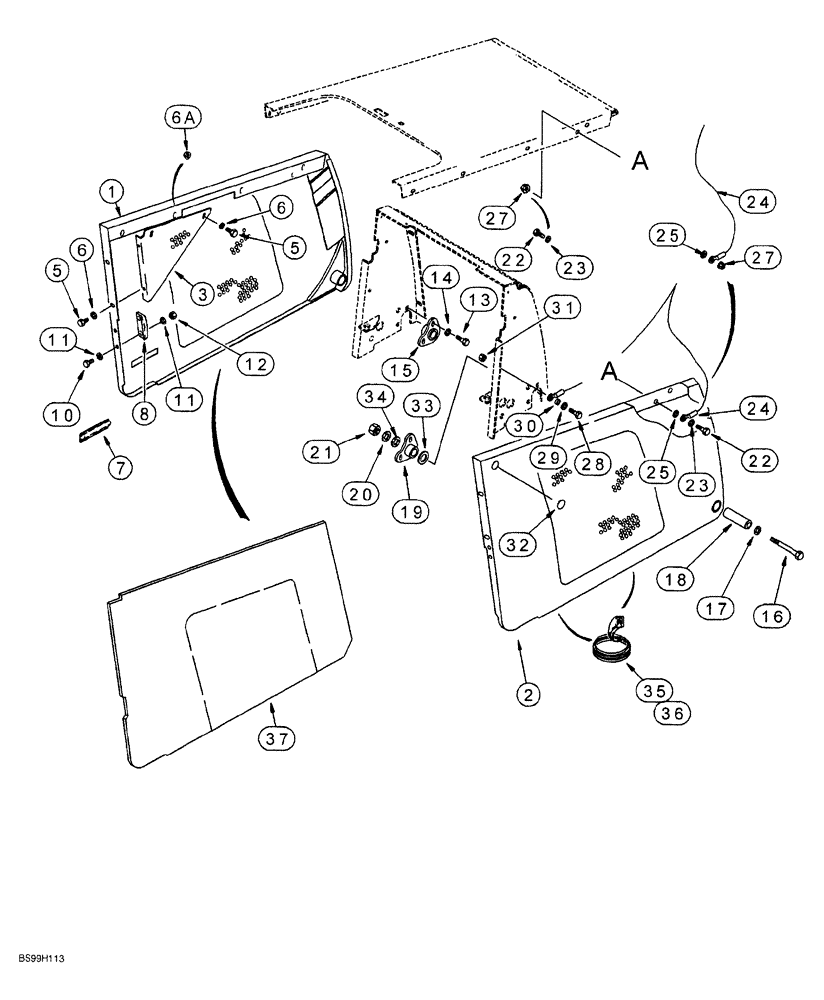

Запчасти Case 580SL (9-090) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

359430A1

PANEL, SIDE

engine, left hand side, with grille, replaces P/N233523A1

1шт.

2

359429A1

PANEL, SIDE

engine, right hand side, with grille, replaces P/N 233522A1

1шт.

3

139492A1

LARGE PLATE

PLATE, LARGE BRACE side panel, left hand

1шт.

4

139490A1

LARGE PLATE

PLATE, LARGE BRACE side panel, right hand, not shown

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

6a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

7

183168A1

HANDLE

side panel, left hand

1шт.

8

D143715

SUPPORT

BRACKET side panel, left hand

1шт.

9

D143714

SUPPORT

BRACKET side panel, right hand, not shown

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

4шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

15

139835A1

PIVOT

PLATE, left hand, 22 mm long tube, no longer available, order P/N 310843A1

1шт.

15

310843A1

PIVOT

PLATE, left hand, 25 mm long tube, self lubricating

1шт.

16

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

Used with P/N 140428A1 tube

2шт.

16

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

BOLT hex, 12 - 1.75 x 120 mm, used with P/N 299249A1 tube

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, replaces P/N 895-15012 washer used on some models

2шт.

18

140428A1

TUBE,14.3 mm ID, 25.4 mm OD, 87 mm Length

TUBE pivot, 14.3 x 25.4 x 87 mm long, no longer available, order P/N 299249A1 tube

2шт.

18

299249A1

TUBE,13.5 mm ID, 25.36 mm OD, 90 mm Length

TUBE pivot, 13.5 x 25.3 x 90 mm long, self lubricating

2шт.

19

139834A1

PIVOT

PLATE, right hand, 22 mm long tube, no longer available, order P/N 310842A1 plate

1шт.

19

310842A1

PIVOT

PLATE, right hand, 25 mm long tube, self lubricating

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

flat, 13.5 x 28 x 4 mm, hardened, replaces P/N 895-15012 washer used on some models

2шт.

21

829-1412

NUT,M12, Cl 10.9

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

144908A1

CABLE

hood retaining

1шт.

25

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 1.6 O.D. x 6 mm long, cable

1шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

10 ID x 16 O.D. x 6 mm long, cable

1шт.

32

D140267

PLUG,30.16mm OD

side panel

2шт.

33

495-11106

WASHER,1", SAE

(1-1/16 x 2 x 1/8"), Used with P/N 139834A1 or P/N 139835A1 plate

2шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Used with P/N 139834A1 or P/N 139835A1 plate

2шт.

35

234923A1

PROTECTOR

TRIM, 150 mm (5-29/32 inch) long, used on models with air conditioning

2шт.

36

244441A1

ADHESIVE STRIP

TRIM, 700 mm (27-9/16 inch) long, used on models with air conditioning

2шт.

37

297836A1

LARGE PLATE

PLATE, LARGE PANEL noise reduction, insulation, right hand side

1шт.

38

297837A1

LARGE PLATE

PLATE, LARGE PANEL noise reduction, insulation, left hand side, not shown

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
