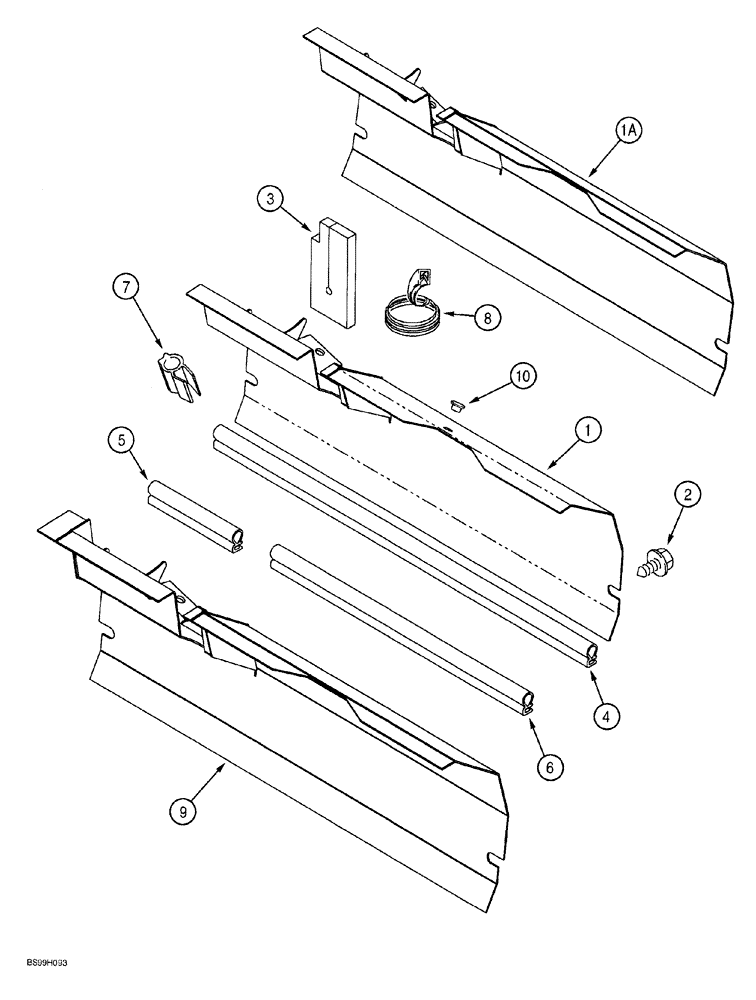

Запчасти Case 580SL (9-088) - BAFFLE PLATE AND SEALS WITH AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

245011A1

LARGE PLATE

PLATE, LARGE baffle, no longer available, order P/N 245011A3

1шт.

1a

245011A3

BAFFLE

PLATE, heavy duty, horn mounting hole relocated, replaces P/N 245011A2 plate, if used

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

3

305690A1

SEAL

foam, adhesive backed

1шт.

4

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm (22-1/2 inch) long

1шт.

5

246063A1

SEAL

TRIM edge, 170 mm (6-11/16 inch) long, cut from P/N 233749A1 bulk

1шт.

6

246064A1

SEAL

TRIM edge, 365 mm (14-3/8 inch) long, cut from P/N 233749A1 bulk

1шт.

7

185493A1

SEAL

TRIM edge, 160 mm (6-5/16 inch) long, cut from P/N 137315A1 bulk

2шт.

8

D36179

LINING

TRIM edge, 108 mm (4-1/2 inch) long, cut from P/N F42827 bulk

1шт.

9

313534A1

PLATE

baffle, standard, replaces P/N 245011A3 plate used on some models, if used

1шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used

1шт.

F42827

TRIM,2946.4mm L

TRIM edge, bulk, 2946 mm (116 inch) long

1шт.

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm (35-7/16 inch) long

1шт.

233749A1

SEAL

TRIM edge, bulk, 76200 mm (3000 inch or 250 feet) long

1шт.
