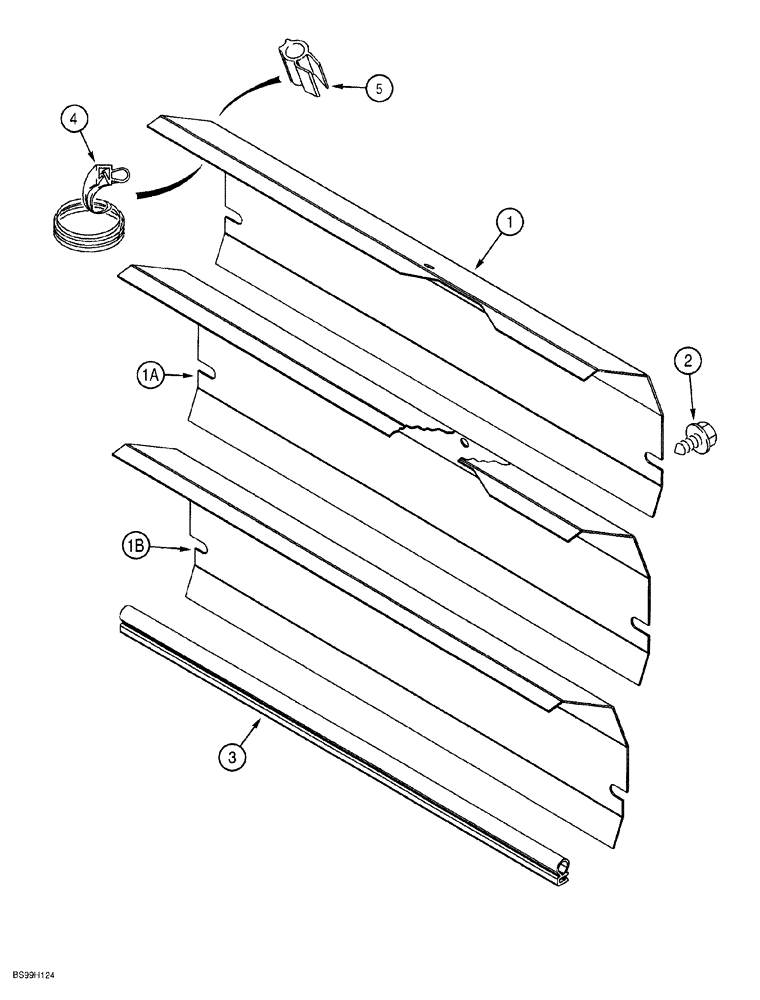

Запчасти Case 580SL (9-086) - BAFFLE PLATE AND SEALS WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

277502A1

LARGE PLATE

PLATE, LARGE baffle, heavy duty, no longer available, order P/N 277502A3

1шт.

1a

277502A3

BAFFLE

PLATE, heavy duty, horn mounting hole relocated, replaces P/N 277502A2 plate, no longer available, order P/N 362007A1

1шт.

1b

362007A1

PLATE

baffle, heavy duty, replaces 346971A1 plate, if used

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT hex washer, special, 10 - 1.5 x 30 mm

2шт.

3

245450A1

RUBBER SEAL,571mm L

TRIM edge, 571 mm (22-1/2 inch) long

1шт.

4

277664A1

SEAL,575mm L

TRIM edge, 575 mm (22-5/8 inch) long

1шт.

5

185493A1

SEAL

TRIM edge, 160 mm (6-5/16 inch) long, cut from P/N 137315A1 bulk

2шт.

137315A1

SEAL,899.6mm L

TRIM edge, bulk, 900 mm (35-7/16 inch) long

1шт.
