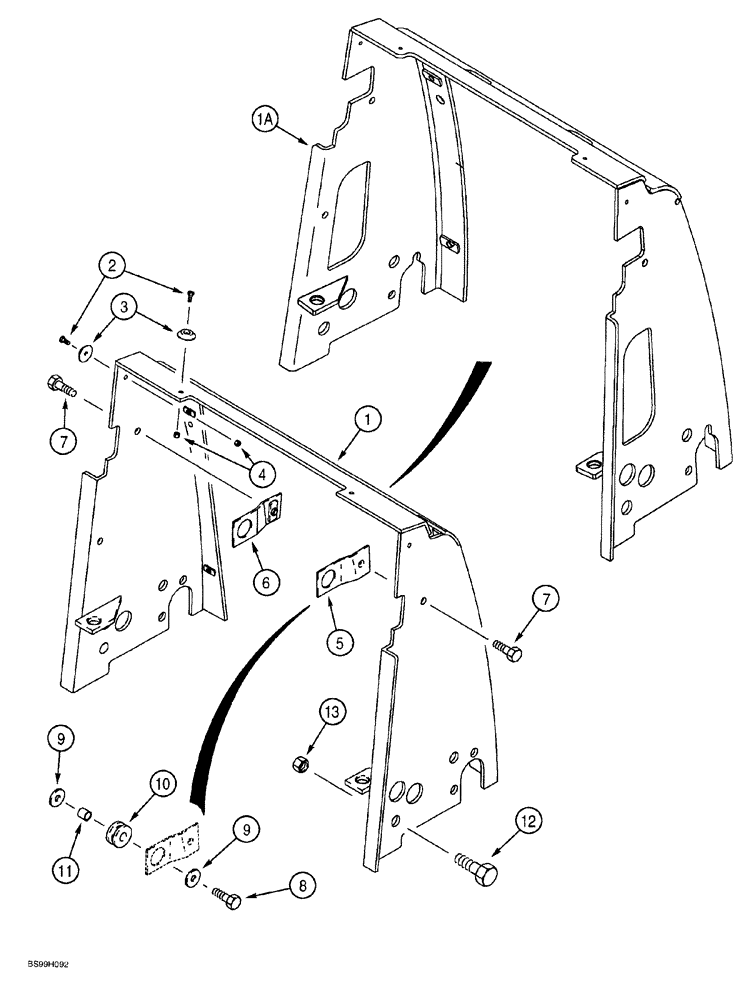

Запчасти Case 580SL (9-082) - RADIATOR WRAPPER (09) - CHASSIS/ATTACHMENTS

1

139494A2

HOUSING

SHROUD radiator wrapper, if used

1шт.

1a

301322A1

HOUSING

SHROUD radiator wrapper, if used

1шт.

2

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

4шт.

3

109879A1

SPACER,5.5mm ID x 30mm OD

plastic, hood

4шт.

4

86625057

NUT,#10-24, GB

4шт.

5

176952A1

LARGE PLATE

PLATE, LARGE BRACKET right hand upper radiator, Serial Range: mounting-shroud

1шт.

6

176957A1

LARGE PLATE

PLATE, LARGE BRACKET left hand, upper radiator, Serial Range: mounting-shroud

1шт.

7

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

9

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

flat, special

4шт.

10

D132895

GROMMET

upper radiator to shroud mounting

2шт.

11

D146035

SPACER,10.31mm ID x 16mm OD x 15.5mm L

SPACER upper, Serial Range: radiator-shroud

2шт.

12

614-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 8.8, Full Thd

Full threads

4шт.

13

829-1420

NUT,M20, Cl 10

4шт.
